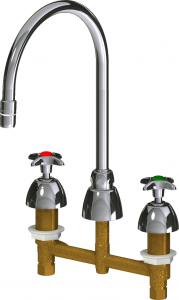

Chicago Faucets LWM2-A21-B Laboratory Mixing Faucet, Deck-Mount

The Chicago Faucets LWM2-A21-B is a laboratory mixing faucet with NPSM connections. It features a brass body. Rated to 40°F to 140°F.

Chicago Faucets No. LWM2-A21-B Concealed deck-mount, dual-inlet water faucet, 8" centers, polished chrome finish. 8" fixed centers. 8" rigid/swing gooseneck spout. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Slow compression operating cartridge, left- hand turn. 2-1/2" cross handles with index buttons.

Features

• 8" fixed centers
• 8" Rigid/swing gooseneck spout
• Pressure compensating Softflo® aerator with adapter, 2.2 GPM
• Vandal Proof 2-1/2" Chrome cross handle with index button (pair)
• Slow compression operating cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: GN8BJKABCP
• Includes: E3-2JKABCP
• Includes: 204-PRJKCP
• Includes: 274-XTLHJKABNF

Specifications

• Type: Concealed deck-mount, dual-inlet water faucet, 8" centers
• Connection: NPSM
• Body Material: Brass
• Application: Domestic Water
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
• MPN: LWM2-A21-B
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1
• Service Medium: Water
• Shank: Not Applicable
• Mount Type: Deck-Mount
• Handle Style: Metal Cross
• Outlet Type: Aerator
• Cartridge Type: Compression
• Spout Type: Gooseneck
• Spout Reach (in): 8.0
• Mixing Valve: Mechanical Mixing Valve
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.2
• Max Operating Pressure (PSI): 125
• Lead Time (days): 15
