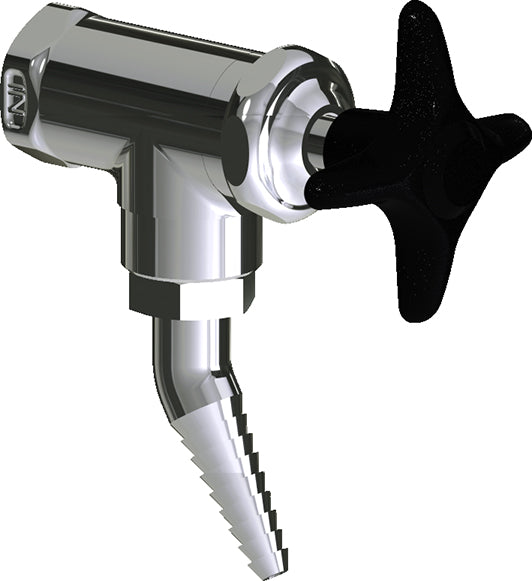

Chicago Faucets LSV2-A21 Laboratory Steam Valve, Panel-Mount

The Chicago Faucets LSV2-A21 is a 3/8" laboratory steam valve with NPT connections. It features a brass body.

Chicago Faucets No. LSV2-A21 Single steam valve for wall or turret mount, polished chrome finish. Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose. Slow compression operating steam cartridge, left-hand turn. 2-1/2" cross handle, black nylon. Laboratory index button, black with white letters, STM (Steam).

Features

• Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose
• Vandal Proof 2-1/2" Cross handle
• Slow compression operating steam cartridge, left-hand
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7XTJKCP
• Includes: 205-LEBJKNF
• Includes: 937-XSTJKNF
• Includes: 216-228JKNF

Common Questions

Is this valve certified for Steam?

Yes -- this Chicago Faucets fitting is built and indexed for Steam service (index button/label: STM). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.

Specifications

• Type: Single steam valve for wall or turret mount
• Size: 3/8"
• Connection: NPT
• Body Material: Brass
• Application: Steam
• Warranty: 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LSV2-A21
• Service Medium: Steam
• Shank: Not Applicable
• Body Pattern: Angle
• Mount Type: Panel-Mount
• Handle Index: STM
• Outlet Type: 30-Degree Serrated Nozzle
• Cartridge Type: Compression
• Coating / Finish: Polished Chrome
• Lead Time (days): 15
