Chicago Faucets LRV-N2-A2L Remote Valve, Panel-Mount

SKU: LRV-N2-A2L
Price:
Sale price$155.16 Regular price$214.56
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $155.16

Free shipping over $200

Key Features

Cartridge Compression
Handle Style Plastic Cross
Mount Type Panel-Mount
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

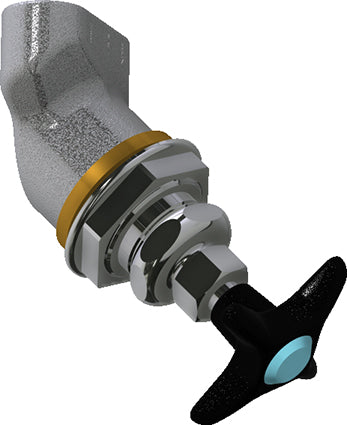

The Chicago Faucets LRV-N2-A2L is a 3/8" remote valve with NPT connections. It features a brass body.

Chicago Faucets No. LRV-N2-A2L Concealed valve, left-hand for 45° angle panels, polished chrome finish. Needle valve compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon. Laboratory index button, light blue with black letters, CH4 (Methane).

Features

  • Vandal Proof 2-1/2" Cross handle
  • Needle valve compression operating cartridge, left-hand
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 205-LEBJKNF
  • Includes: 962-XJKNF
  • Includes: 216-678CH4JKNF

Common Questions

Is this valve certified for Methane?
Yes -- this Chicago Faucets fitting is built and indexed for Methane service (index button/label: CH4). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.

Specifications

  • Type: Concealed valve, left-hand for 45° angle panels
  • Size: 3/8"
  • Connection: NPT
  • Body Material: Brass
  • Application: Gas
  • Warranty: 1-year finish; 5-year faucet; 5-year mechanical
  • MPN: LRV-N2-A2L
  • Service Medium: Methane
  • Body Pattern: Angle
  • Mount Type: Panel-Mount
  • Handle Style: Plastic Cross
  • Handle Index: CH4
  • Cartridge Type: Compression
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 7.25
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LRV-N2-A2L 611943061821 1-year finish; 5-year faucet; 5-year mechanical DownloadDownload

Dimensions

Size Nominal 3/8" End Connection NPT

Details

Series LRV Device Type Concealed valve, left-hand for 45° angle panels
Body Material Brass Application Gas
Options 205-LEBJKNF, 962-XJKNF, 216-678CH4JKNF Baa USA
Body pattern Angle Coating Polished Chrome
Handle style Plastic Cross Lead time days 15
Mount type Panel-Mount Operating pressure max psi 7.25 PSI
Prop65 Yes Cartridge type Compression
Handle index CH4 Media Methane

Compare with similar products

Series
LRV
LRV
LRV
LRV
LRV
LRV
Warranty
1-year finish; 5-year faucet; 5-year mechanical
1-year finish; 5-year faucet; 5-year mechanical
1-year finish; 5-year faucet; 5-year mechanical
1-year finish; 5-year faucet; 5-year mechanical
1-year finish; 5-year faucet; 5-year mechanical
1-year finish; 5-year faucet; 5-year mechanical
Spec Sheet
Install Sheet
Device Type
Concealed valve, left-hand for 45° angle panels
Remote valve for 45° angle panels
Remote valve for 45° angle panels
Remote valve for 45° angle panels
Remote valve for 45° angle panels
Remote valve for straight panels
Size Nominal
3/8"
3/8"
3/8"
3/8"
3/8"
3/8"
End Connection
NPT
NPT
NPT
NPT
NPT
NPT
Body Material
Brass
Brass
Brass
Brass
Brass
Brass
Application
Gas
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Max Temp °F
—
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
—
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
ASME A112.18.1/CSA B125.1
Options
205-LEBJKNF, 962-XJKNF, 216-678CH4JKNF
205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
205-LEBJKNF, 217-XTLHJKABNF, 216-178JKNF
204-LEBJKCP, 217-XTLHJKABNF, 216-128JKNF
204-LEBJKCP, 217-XTLHJKABNF, 216-178JKNF
205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
Min Temp °F
—
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
