Specifications
Description

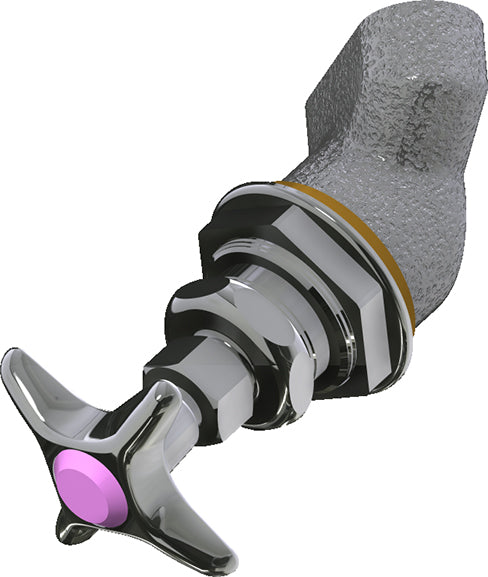

The Chicago Faucets LRV-N1-A1G is a 3/8" remote valve with NPT connections. It features a brass body.
Chicago Faucets No. LRV-N1-A1G Concealed valve, right-hand for 45° angle panels, polished chrome finish. Needle valve compression operating cartridge, left-hand turn. 2-1/2" cross handle. Laboratory index button, pink with black letters, CO2.
Features
- Vandal Proof 2-1/2" Cross handle
- Needle valve compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 204-LEBJKCP
- Includes: 962-XJKNF
- Includes: 216-778PINKCO2JKNF
Common Questions
- Is this valve certified for Carbon Dioxide?
- Yes -- this Chicago Faucets fitting is built and indexed for Carbon Dioxide service (index button/label: CO2). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Specifications
- Type: Concealed valve, right-hand for 45° angle panels
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Application: Gas
- Warranty: 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LRV-N1-A1G
- Service Medium: Carbon Dioxide
- Body Pattern: Angle
- Mount Type: Panel-Mount
- Handle Style: Metal Cross
- Handle Index: CO2
- Cartridge Type: Compression
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 7.25
- Lead Time (days): 15
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LRV | Device Type | Concealed valve, right-hand for 45° angle panels |
| Body Material | Brass | Application | Gas |
| Options | 204-LEBJKCP, 962-XJKNF, 216-778PINKCO2JKNF | Baa | USA |
| Body pattern | Angle | Coating | Polished Chrome |
| Handle style | Metal Cross | Lead time days | 15 |
| Mount type | Panel-Mount | Operating pressure max psi | 7.25 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Handle index | CO2 | Media | Carbon Dioxide |
Compare with similar products
| Series | LRV
| LRV
| LRV
| LRV
| LRV
| LRV
|
| Warranty | 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Concealed valve, right-hand for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for 45° angle panels
| Remote valve for straight panels
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Application | Gas
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | — | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | — | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1
|
| Options | 204-LEBJKCP, 962-XJKNF, 216-778PINKCO2JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-178JKNF
| 204-LEBJKCP, 217-XTLHJKABNF, 216-128JKNF
| 204-LEBJKCP, 217-XTLHJKABNF, 216-178JKNF
| 205-LEBJKNF, 217-XTLHJKABNF, 216-128JKNF
|
| Min Temp °F | — | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
