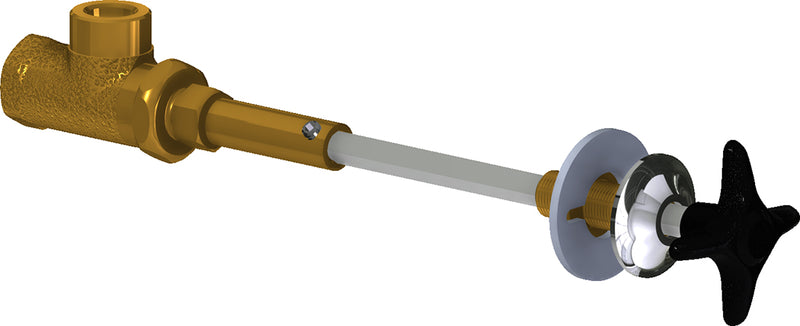

The Chicago Faucets LRV-F5-A2F is a 3/8" remote valve with NPT connections. It features a brass body.
Chicago Faucets No. LRV-F5-A2F Remote valve for straight panels, polished chrome finish. Needle valve compression operating cartridge, left-hand turn. 2-1/2" cross handle, black nylon. Laboratory index button, black with white letters, HE.
Features
- Vandal Proof 2-1/2" Cross handle
- Needle valve compression operating cartridge, left-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 205-LEBJKNF
- Includes: 966-XSSJKNF
- Includes: 216-728HEJKNF
Common Questions
- Is this valve certified for Helium?
- Yes -- this Chicago Faucets fitting is built and indexed for Helium service (index button/label: HE). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Specifications
-
Type: Remote valve for straight panels
-
Size: 3/8"
-
Connection: NPT
-
Body Material: Brass
-
Application: Gas
-
Warranty: 1-year finish; 5-year faucet; 5-year mechanical
-
MPN: LRV-F5-A2F
-
Service Medium: Helium
-
Body Pattern: Angle
-
Mount Type: Panel-Mount
-
Handle Style: Plastic Cross
-
Handle Index: HE
-
Cartridge Type: Compression
-
Coating / Finish: Polished Chrome
-
Max Operating Pressure (PSI): 7.25
-
Lead Time (days): 15
