Specifications
Description

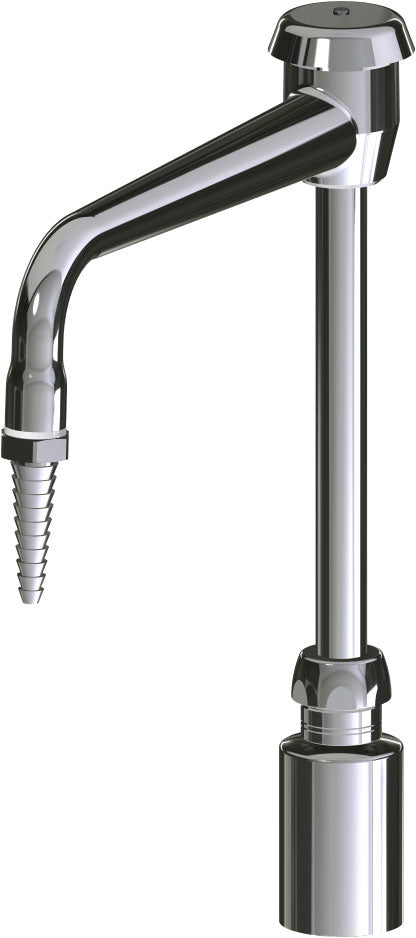

The Chicago Faucets LRS-E31 is a 3/8" remote spout with NPT connections. It features a brass body. Rated to 40°F to 140°F.
Chicago Faucets No. LRS-E31, Laboratory Remote Spout, chrome plated. Rigid/swing gooseneck spout with atmospheric vacuum breaker, 8" center-to-center. Serrated, full-flow laboratory nozzle. 3/8" NPT female thread inlet. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, and ASSE 1001.
Features
- Includes laboratory turret
- Single-hole
- 8" rigid/swing gooseneck spout with atmospheric vacuum breaker
- Laboratory nozzle with 10 serrations for laboratory hose
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN8BVBJKCP
- Includes: E7JKCP
- Includes: 892-402KJKABNF
Specifications
- Type: Deck-mounted remote spout
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: LRS-E31
- Temperature: 40°F to 140°F
- Certifications: ASSE-1001
- Outlet Type: Serrated Hose Nozzle
- Coating / Finish: Polished Chrome
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LRS-E31 | 611943179991 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LRS | Device Type | Deck-mounted remote spout |
| Body Material | Brass | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | GN8BVBJKCP, E7JKCP, 892-402KJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Lead time days | 5 |
| Prop65 | Yes | Outlet type | Serrated Hose Nozzle |
Certifications & Standards
| ASSE-1001 | — |
