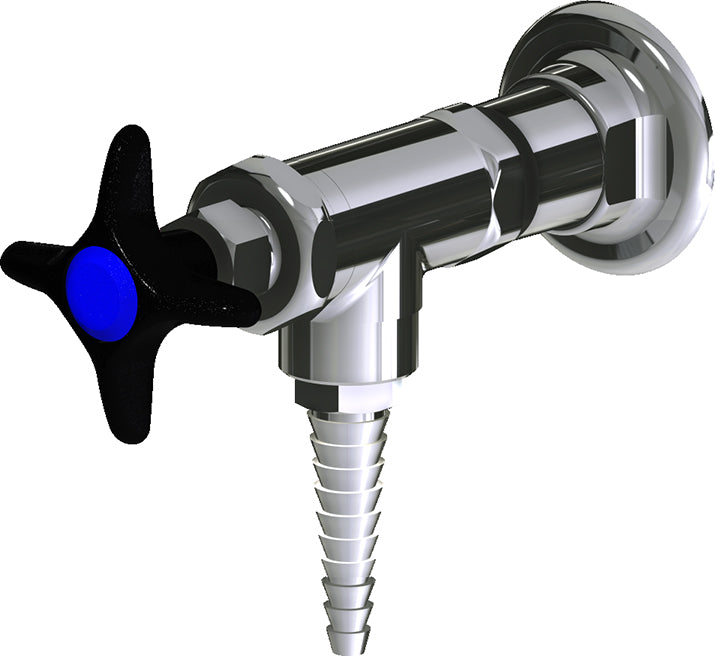

The Chicago Faucets LGF3-A12C-50 is a 3/8" Natural Gas laboratory fine-control needle valve with NPT connections. It features a brass body.
Chicago Faucets No. LGF3-A12C-50 Wall-mounted fine needle valve with flange, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose. 2-1/2" cross handle, black nylon. Includes index buttons for AIR, GAS, VAC.
Features
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Cross handle
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7TJKCP
- Includes: 205-LEBJKNF
- Includes: 216-PPJKNF
Common Questions
- Is this valve certified for Natural Gas?
- Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: GAS). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
- Does this ship with the mounting shank?
- No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.
Specifications
-
Type: Wall-mounted fine needle valve with flange
-
Size: 3/8"
-
Connection: NPT
-
Body Material: Brass
-
Application: Gas
-
Warranty: 1-year finish; 5-year faucet; 5-year mechanical
-
MPN: LGF3-A12C-50
-
Certifications: ADA
-
Service Medium: Natural Gas
-
Outlet Configuration: Single
-
Shank: Less Shank
-
Body Pattern: Angle
-
Mount Type: Wall-Mount
-
Handle Style: Metal Cross
-
Handle Index: GAS
-
Outlet Type: 30-Degree Serrated Nozzle
-
Cartridge Type: Compression
-
Coating / Finish: Polished Chrome
-
Max Operating Pressure (PSI): 7.25
-
Lead Time (days): 15
