Specifications
Description
The Chicago Faucets LGF1-A22H-25 is a 3/8" Carbon Monoxide laboratory fine-control needle valve with NPT connections. It features a brass body.

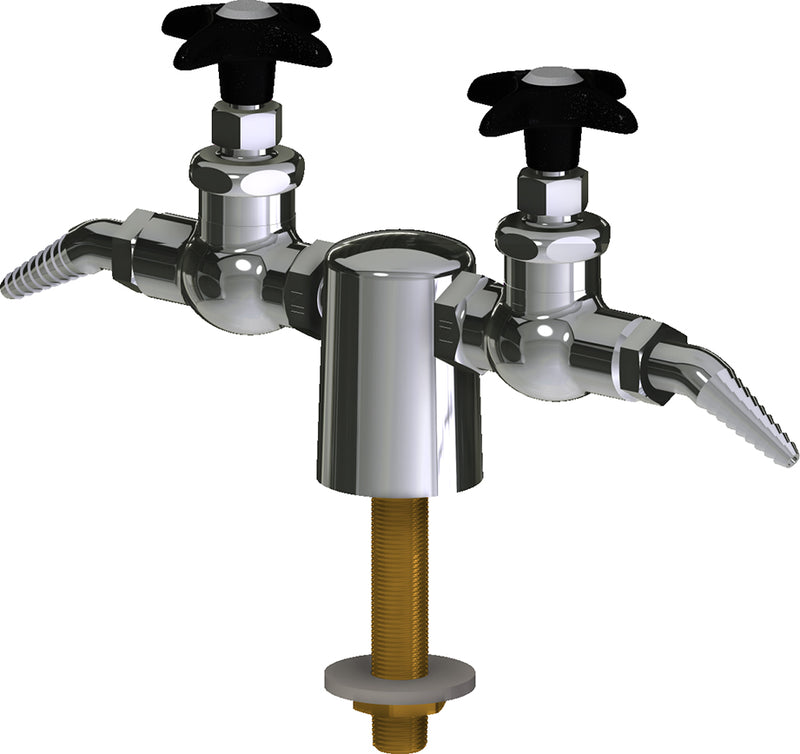

Chicago Faucets No. LGF1-A22H-25 Deck-mounted laboratory turret with fine needle valve, polished chrome finish. Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose. 2-1/2" cross handle, black nylon. Laboratory index button, silver with black letters, CO (Carbon Monoxide).
Features
- Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Cross handle
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7XTJKCP
- Includes: 205-LEBJKNF
- Includes: 216-778COJKNF
Common Questions
- Is this valve certified for Carbon Monoxide?
- Yes -- this Chicago Faucets fitting is built and indexed for Carbon Monoxide service (index button/label: CO). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Specifications
- Type: Deck-mounted laboratory turret with fine needle valve
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Application: Gas
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LGF1-A22H-25
- Certifications: ADA
- Service Medium: Carbon Monoxide
- Outlet Configuration: Dual 180-Degree
- Shank: Not Applicable
- Body Pattern: Straight
- Mount Type: Deck-Mount
- Handle Style: Plastic Cross
- Handle Index: CO
- Outlet Type: 30-Degree Serrated Nozzle
- Cartridge Type: Compression
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 7.25
- Lead Time (days): 15
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LGF1-A22H-25 | 611943042172 | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical | Download |
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LGF1 | Device Type | Deck-mounted laboratory turret with fine needle valve |
| Body Material | Brass | Application | Gas |
| Options | E7XTJKCP, 205-LEBJKNF, 216-778COJKNF | Baa | USA |
| Body pattern | Straight | Coating | Polished Chrome |
| Handle style | Plastic Cross | Lead time days | 15 |
| Mount type | Deck-Mount | Operating pressure max psi | 7.25 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Handle index | CO | Outlet type | 30-Degree Serrated Nozzle |
| Media | Carbon Monoxide | Outlet config | Dual 180-Degree |
| Shank type | Not Applicable | — | — |
Certifications & Standards
| ADA | — |
Compare with similar products




| Series | LGF1
| LGF3
| LGF3
| LGF1
|
| Warranty | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||
| Device Type | Deck-mounted laboratory turret with fine needle valve
| Single fine needle valve for wall or turret mount
| Single fine needle valve for wall or turret mount
| Single fine needle valve for wall or turret mount
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
|
| Application | Gas
| Gas
| Gas
| Gas
|
| Certifications | ADA
| ADA
| ADA
| ADA
|
| Options | E7XTJKCP, 205-LEBJKNF, 216-778COJKNF
| E7XTJKCP, 205-LEBJKNF, 216-678SGJKNF
| E7XTJKCP, 205-LEBJKNF, 216-778COJKNF
| E7JKCP, 205-LEBJKNF, 216-778COJKNF
|
