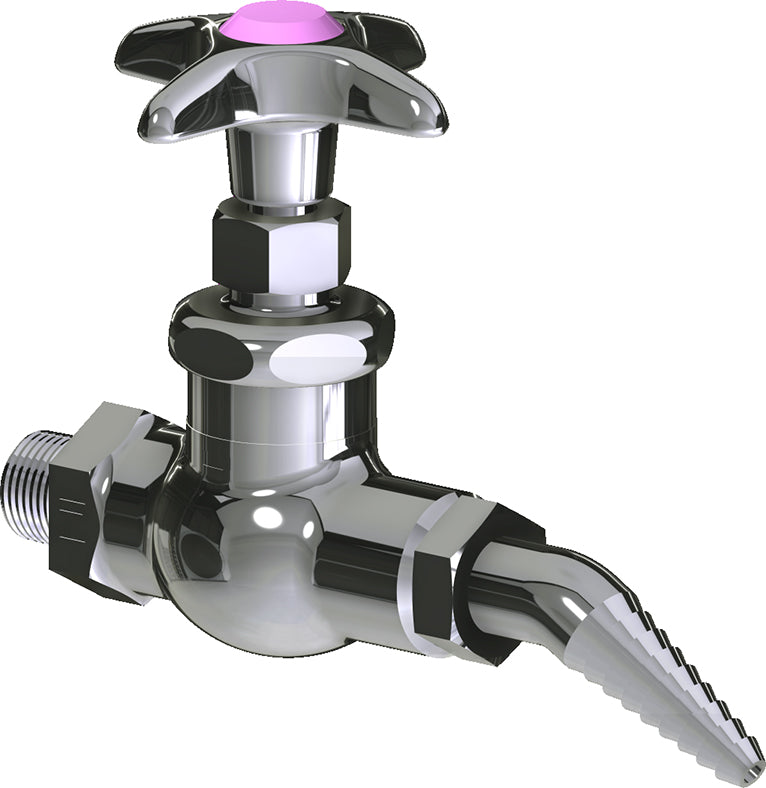

Chicago Faucets LGF1-A21G Carbon Dioxide Laboratory Fine-Control Needle Valve, Panel-Mount

The Chicago Faucets LGF1-A21G is a 3/8" Carbon Dioxide laboratory fine-control needle valve with NPT connections. It features a brass body.

Chicago Faucets No. LGF1-A21G Single fine needle valve for wall or turret mount, polished chrome finish. Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose. 2-1/2" cross handle. Laboratory index button, pink with black letters, CO2.

Features

• Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose
• Vandal Proof 2-1/2" Cross handle
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7XTJKCP
• Includes: 204-LEBJKCP
• Includes: 216-778PINKCO2JKNF

Common Questions

Is this valve certified for Carbon Dioxide?

Yes -- this Chicago Faucets fitting is built and indexed for Carbon Dioxide service (index button/label: CO2). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.

Specifications

• Type: Single fine needle valve for wall or turret mount
• Size: 3/8"
• Connection: NPT
• Body Material: Brass
• Application: Gas
• Warranty: 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LGF1-A21G
• Certifications: ADA
• Service Medium: Carbon Dioxide
• Shank: Not Applicable
• Body Pattern: Straight
• Mount Type: Panel-Mount
• Handle Style: Plastic Cross
• Handle Index: CO2
• Outlet Type: Serrated Hose Nozzle
• Cartridge Type: Compression
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 7.25
• Lead Time (days): 15
