Chicago Faucets LGF1-A11F-40 Helium Laboratory Fine-Control Needle Valve, Deck-Mount

The Chicago Faucets LGF1-A11F-40 is a 3/8" Helium laboratory fine-control needle valve with NPT connections. It features a brass body.

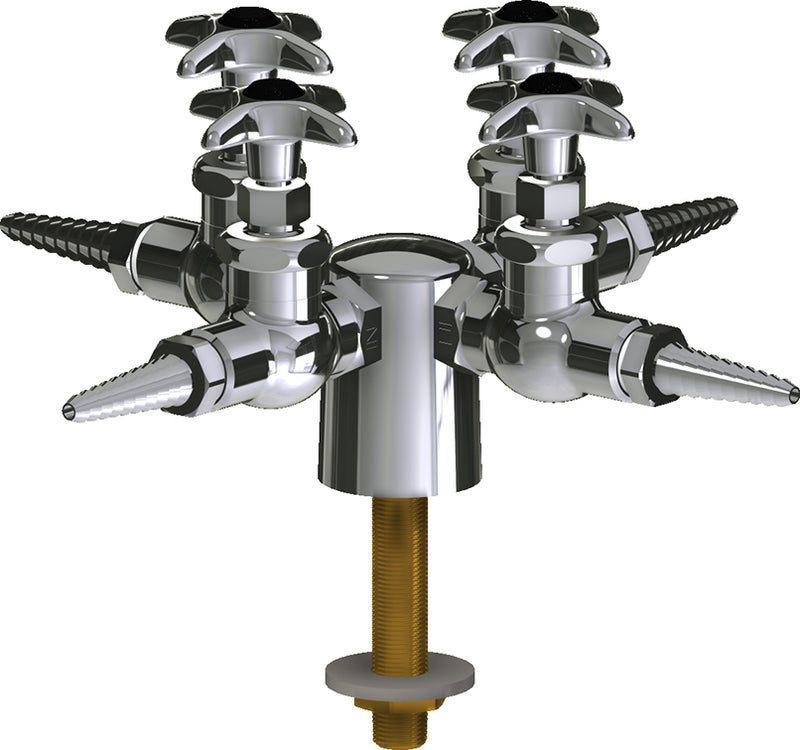

Chicago Faucets No. LGF1-A11F-40 Deck-mounted laboratory turret with fine needle valve, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose. 2-1/2" cross handle. Laboratory index button, black with white letters, HE.

Features

• Laboratory nozzle with 10 serrations for laboratory hose
• Vandal Proof 2-1/2" Cross handle
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7JKCP
• Includes: 204-LEBJKCP
• Includes: 216-728HEJKNF

Common Questions

Is this valve certified for Helium?

Yes -- this Chicago Faucets fitting is built and indexed for Helium service (index button/label: HE). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.

Specifications

• Type: Deck-mounted laboratory turret with fine needle valve
• Size: 3/8"
• Connection: NPT
• Body Material: Brass
• Application: Gas
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LGF1-A11F-40
• Certifications: ADA
• Service Medium: Helium
• Outlet Configuration: Four-Outlet
• Shank: Not Applicable
• Body Pattern: Straight
• Mount Type: Deck-Mount
• Handle Style: Metal Cross
• Handle Index: HE
• Outlet Type: Serrated Hose Nozzle
• Cartridge Type: Compression
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 7.25
• Lead Time (days): 15
