Specifications
Description
The Chicago Faucets LGF1-A11D-60 is a 3/8" Nitrogen laboratory fine-control needle valve with NPT connections. It features a brass body.

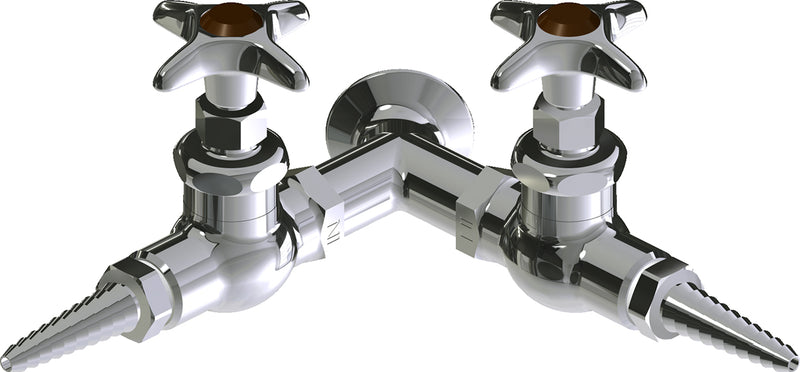

Chicago Faucets No. LGF1-A11D-60 Wall-mounted fine needle valve with flange, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose. 2-1/2" cross handle. Laboratory index button, brown with white letters, NIT (Nitrogen).
Features
- Laboratory nozzle with 10 serrations for laboratory hose
- Vandal Proof 2-1/2" Cross handle
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7JKCP
- Includes: 204-LEBJKCP
- Includes: 216-728NITJKNF
Common Questions
- Is this valve certified for Nitrogen?
- Yes -- this Chicago Faucets fitting is built and indexed for Nitrogen service (index button/label: NIT). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
- Does this ship with the mounting shank?
- No -- this is the "Less Shank" configuration. The valve/faucet body ships without a mounting shank; you need to source one separately (or order the "With Shank" version of the same part number) before you can install it.
Specifications
- Type: Wall-mounted fine needle valve with flange
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Application: Gas
- Warranty: 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LGF1-A11D-60
- Certifications: ADA
- Service Medium: Nitrogen
- Outlet Configuration: Dual 90-Degree
- Shank: Less Shank
- Body Pattern: Straight
- Mount Type: Wall-Mount
- Handle Style: Metal Cross
- Handle Index: NIT
- Outlet Type: Serrated Hose Nozzle
- Cartridge Type: Compression
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 7.25
- Lead Time (days): 15
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LGF1-A11D-60 | 611943037925 | 1-year finish; 5-year faucet; 5-year mechanical | Download |
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LGF1 | Device Type | Wall-mounted fine needle valve with flange |
| Body Material | Brass | Application | Gas |
| Options | E7JKCP, 204-LEBJKCP, 216-728NITJKNF | Baa | USA |
| Body pattern | Straight | Coating | Polished Chrome |
| Handle style | Metal Cross | Lead time days | 15 |
| Mount type | Wall-Mount | Operating pressure max psi | 7.25 PSI |
| Prop65 | Yes | Cartridge type | Compression |
| Handle index | NIT | Outlet type | Serrated Hose Nozzle |
| Media | Nitrogen | Outlet config | Dual 90-Degree |
| Shank type | Less Shank | — | — |
Certifications & Standards
| ADA | — |
Compare with similar products




| Series | LGF1
| LGF3
| LGF3
| LGF1
|
| Warranty | 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
| 1-year finish; 5-year faucet; 5-year mechanical
|
| Spec Sheet | ||||
| Device Type | Wall-mounted fine needle valve with flange
| Single fine needle valve for wall or turret mount
| Single fine needle valve for wall or turret mount
| Single fine needle valve for wall or turret mount
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
|
| Application | Gas
| Gas
| Gas
| Gas
|
| Certifications | ADA
| ADA
| ADA
| ADA
|
| Options | E7JKCP, 204-LEBJKCP, 216-728NITJKNF
| E7XTJKCP, 205-LEBJKNF, 216-678SGJKNF
| E7XTJKCP, 205-LEBJKNF, 216-778COJKNF
| E7JKCP, 205-LEBJKNF, 216-778COJKNF
|
