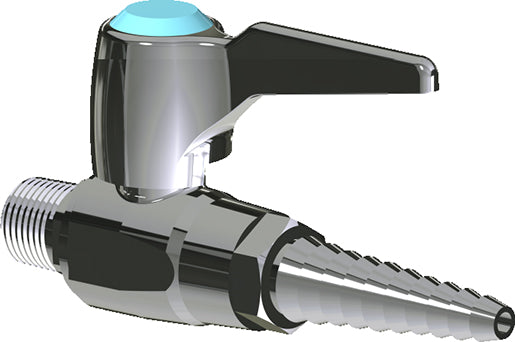

Chicago Faucets LGB1-31L Methane Laboratory Ball Valve, Panel-Mount

SKU: LGB1-31L
Price:
Sale price$52.38 Regular price$72.43
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $52.38

Free shipping over $200

Key Features

Outlet Serrated Hose Nozzle
Handle Style Metal Lever
Mount Type Panel-Mount
Spec Sheet Download
See all product information

Similar products

3"PVC Sch. 80 Ball Valve - True Union Solvent
1-1/2 PVC 80 True Union Ball Valve
1" PVC SCH 80 Ball Valve
Compare Products

Specifications

Description

The Chicago Faucets LGB1-31L is a 3/8" Methane laboratory ball valve with NPT connections. It features a brass body.

Chicago Faucets No. LGB1-31L Single ball valve for wall or turret mount, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose and built-in check valve. Laboratory index button, light blue with black letters, CH4 (Methane).

Features

  • Laboratory nozzle with 10 serrations for laboratory hose and built- in check valve to prevent backflow
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: E7TCJKCP
  • Includes: 216-678CH4JKNF

Common Questions

Is this valve certified for Methane?
Yes -- this Chicago Faucets fitting is built and indexed for Methane service (index button/label: CH4). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Does this have backflow protection?
Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Single ball valve for wall or turret mount
  • Size: 3/8"
  • Connection: NPT
  • Body Material: Brass
  • Application: Gas
  • Warranty: 1-year finish; 5-year faucet; 5-year mechanical
  • MPN: LGB1-31L
  • Certifications: ADA
  • Service Medium: Methane
  • Shank: Not Applicable
  • Body Pattern: Straight
  • Mount Type: Panel-Mount
  • Handle Style: Metal Lever
  • Handle Index: CH4
  • Outlet Type: Serrated Hose Nozzle
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 7.25
  • Backflow Device: Integral Check Valve
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec Sheet
LGB1-31L 611943118471 1-year finish; 5-year faucet; 5-year mechanical Download

Dimensions

Size Nominal 3/8" End Connection NPT

Details

Series LGB1 Device Type Single ball valve for wall or turret mount
Body Material Brass Application Gas
Options E7TCJKCP, 216-678CH4JKNF Baa USA
Backflow device Integral Check Valve Body pattern Straight
Coating Polished Chrome Handle style Metal Lever
Lead time days 15 Mount type Panel-Mount
Operating pressure max psi 7.25 PSI Prop65 Yes
Handle index CH4 Outlet type Serrated Hose Nozzle
Media Methane Shank type Not Applicable

Certifications & Standards

ADA —

Compare with similar products

Series
LGB1
909
909
909
BL-4000
LGB1CR
Warranty
1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
One Year (Limited)
—
Spec Sheet
—
Device Type
Single ball valve for wall or turret mount
Single ball valve for wall or turret mount
Single ball valve for wall or turret mount
Single ball valve for wall or turret mount
Hose Cock
Turret Fitting
Size Nominal
3/8"
3/8"
3/8"
3/8"
—
3/8"
End Connection
NPT
NPT
NPT
NPT
MNPT
NPT
Body Material
Brass
Brass
Brass
Brass
Brass
Brass
Certifications
ADA
ADA, ANSI Z21.15/CSA 9.1
ADA, ANSI Z21.15/CSA 9.1
ADA, ANSI Z21.15/CSA 9.1
ANSI Z21.15/CSA 9.1, ADA
—
Pack Qty
—
1
1
1
—
—
Options
E7TCJKCP, 216-678CH4JKNF
E7TJKCP, B0
E7TCJKCP, B0
E7TJKSAM
—
—
