Specifications
Description
The Chicago Faucets LGB1-31D-30 is a 3/8" Nitrogen laboratory ball valve with NPT connections. It features a brass body.

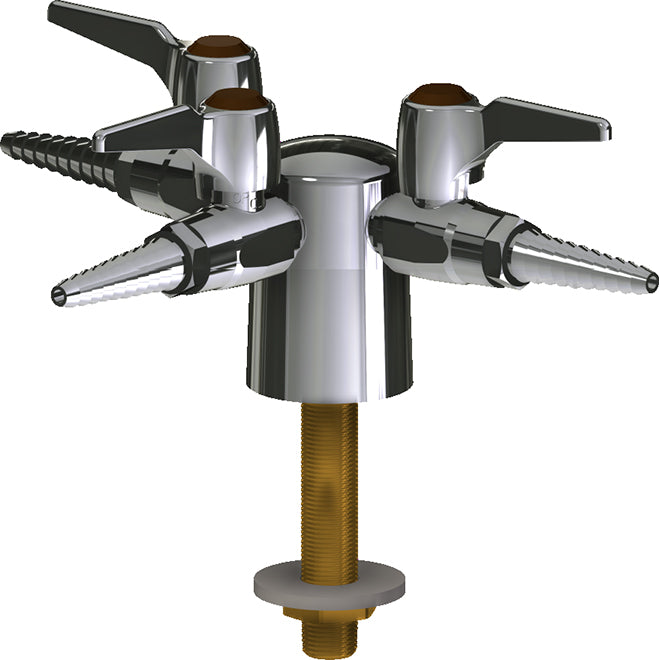

Chicago Faucets No. LGB1-31D-30 Deck-mounted laboratory turret with ball valve, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose and built-in check valve. Laboratory index button, brown with white letters, NIT (Nitrogen).
Features
- Laboratory nozzle with 10 serrations for laboratory hose and built- in check valve to prevent backflow
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7TCJKCP
- Includes: 216-728NITJKNF
Common Questions
- Is this valve certified for Nitrogen?
- Yes -- this Chicago Faucets fitting is built and indexed for Nitrogen service (index button/label: NIT). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
- Does this have backflow protection?
- Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Deck-mounted laboratory turret with ball valve
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Application: Gas
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LGB1-31D-30
- Certifications: ADA
- Service Medium: Nitrogen
- Outlet Configuration: Three-Outlet
- Shank: Not Applicable
- Body Pattern: Straight
- Mount Type: Deck-Mount
- Handle Style: Metal Lever
- Handle Index: NIT
- Outlet Type: Serrated Hose Nozzle
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 7.25
- Backflow Device: Integral Check Valve
- Lead Time (days): 15
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LGB1-31D-30 | 611943117719 | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical | Download |
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LGB1 | Device Type | Deck-mounted laboratory turret with ball valve |
| Body Material | Brass | Application | Gas |
| Options | E7TCJKCP, 216-728NITJKNF | Baa | USA |
| Backflow device | Integral Check Valve | Body pattern | Straight |
| Coating | Polished Chrome | Handle style | Metal Lever |
| Lead time days | 15 | Mount type | Deck-Mount |
| Operating pressure max psi | 7.25 PSI | Prop65 | Yes |
| Handle index | NIT | Outlet type | Serrated Hose Nozzle |
| Media | Nitrogen | Outlet config | Three-Outlet |
| Shank type | Not Applicable | — | — |
Certifications & Standards
| ADA | — |
Compare with similar products

| Series | LGB1
| 909
| 909
| 909
| BL-4000
| LGB1CR
|
| Warranty | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| — |
| Spec Sheet | — | |||||
| Device Type | Deck-mounted laboratory turret with ball valve
| Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Hose Cock
| Turret Fitting
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
| — | 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| MNPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ADA
| ADA, ANSI Z21.15/CSA 9.1
| ADA, ANSI Z21.15/CSA 9.1
| ADA, ANSI Z21.15/CSA 9.1
| ANSI Z21.15/CSA 9.1, ADA
| — |
| Pack Qty | — | 1
| 1
| 1
| — | — |
| Options | E7TCJKCP, 216-728NITJKNF
| E7TJKCP, B0
| E7TCJKCP, B0
| E7TJKSAM
| — | — |
