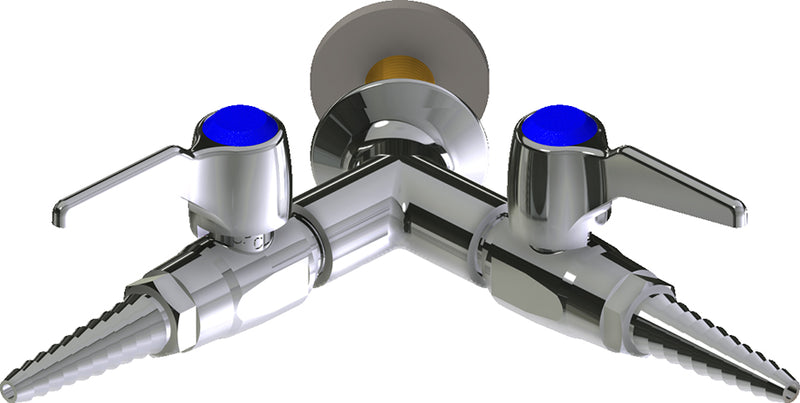

Chicago Faucets LGB1-31C-65 Natural Gas Laboratory Ball Valve, Wall-Mount

SKU: LGB1-31C-65
Price:
Sale price$188.58 Regular price$260.77
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $188.58

Free shipping over $200

Key Features

Outlet Serrated Hose Nozzle
Handle Style Metal Lever
Mount Type Wall-Mount
Spec Sheet Download
See all product information

Similar products

3"PVC Sch. 80 Ball Valve - True Union Solvent
1-1/2 PVC 80 True Union Ball Valve
1" PVC SCH 80 Ball Valve
Compare Products

Specifications

Description

The Chicago Faucets LGB1-31C-65 is a 3/8" Natural Gas laboratory ball valve with NPT connections. It features a brass body.

Chicago Faucets No. LGB1-31C-65 Wall-mounted ball valve with flange, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose and built-in check valve. Includes index buttons for AIR, GAS.

Features

  • Laboratory nozzle with 10 serrations for laboratory hose and built- in check valve to prevent backflow
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: E7TCJKCP
  • Includes: 217-PPJKNF

Common Questions

Is this valve certified for Natural Gas?
Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: GAS). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Does this ship with the mounting shank?
Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.
Does this have backflow protection?
Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Wall-mounted ball valve with flange
  • Size: 3/8"
  • Connection: NPT
  • Body Material: Brass
  • Application: Gas
  • Warranty: 1-year finish; 5-year faucet; 5-year mechanical
  • MPN: LGB1-31C-65
  • Certifications: ADA
  • Service Medium: Natural Gas
  • Outlet Configuration: Dual 90-Degree
  • Shank: Included
  • Body Pattern: Straight
  • Mount Type: Wall-Mount
  • Handle Style: Metal Lever
  • Handle Index: GAS
  • Outlet Type: Serrated Hose Nozzle
  • Coating / Finish: Polished Chrome
  • Max Operating Pressure (PSI): 7.25
  • Backflow Device: Integral Check Valve
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec Sheet
LGB1-31C-65 611943117634 1-year finish; 5-year faucet; 5-year mechanical Download

Dimensions

Size Nominal 3/8" End Connection NPT

Details

Series LGB1 Device Type Wall-mounted ball valve with flange
Body Material Brass Application Gas
Options E7TCJKCP, 217-PPJKNF Baa USA
Backflow device Integral Check Valve Body pattern Straight
Coating Polished Chrome Handle style Metal Lever
Lead time days 5 Mount type Wall-Mount
Operating pressure max psi 7.25 PSI Prop65 Yes
Handle index GAS Outlet type Serrated Hose Nozzle
Media Natural Gas Outlet config Dual 90-Degree
Shank type Included ——

Certifications & Standards

ADA —

Compare with similar products

Series
LGB1
909
909
909
BL-4000
LGB1CR
Warranty
1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
One Year (Limited)
—
Spec Sheet
—
Device Type
Wall-mounted ball valve with flange
Single ball valve for wall or turret mount
Single ball valve for wall or turret mount
Single ball valve for wall or turret mount
Hose Cock
Turret Fitting
Size Nominal
3/8"
3/8"
3/8"
3/8"
—
3/8"
End Connection
NPT
NPT
NPT
NPT
MNPT
NPT
Body Material
Brass
Brass
Brass
Brass
Brass
Brass
Certifications
ADA
ADA, ANSI Z21.15/CSA 9.1
ADA, ANSI Z21.15/CSA 9.1
ADA, ANSI Z21.15/CSA 9.1
ANSI Z21.15/CSA 9.1, ADA
—
Pack Qty
—
1
1
1
—
—
Options
E7TCJKCP, 217-PPJKNF
E7TJKCP, B0
E7TCJKCP, B0
E7TJKSAM
—
—
