Specifications
Description
The Chicago Faucets LGB1-31C-22 is a 3/8" Natural Gas laboratory ball valve with NPT connections. It features a brass body.

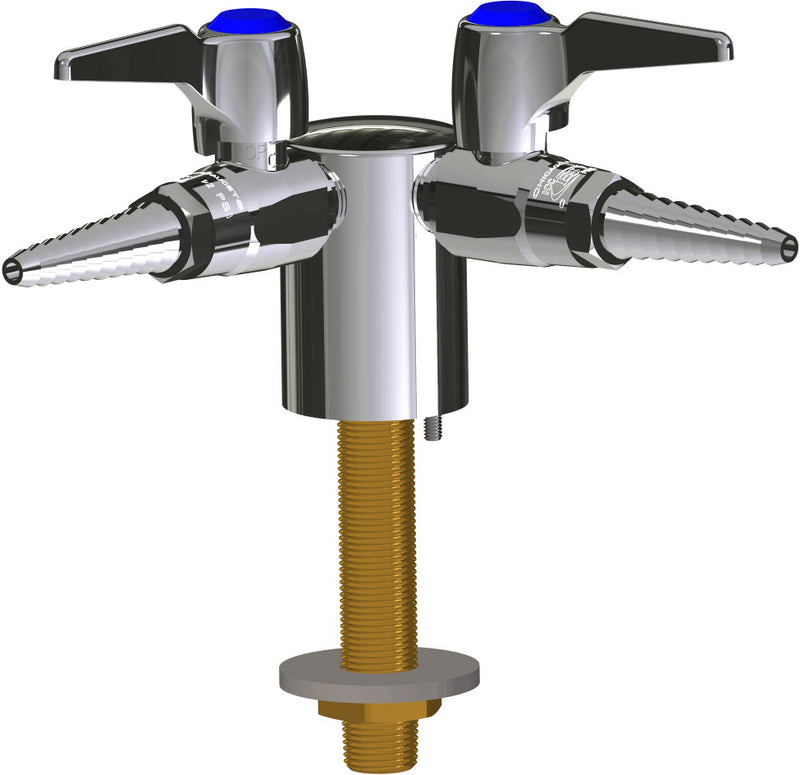

Chicago Faucets No. LGB1-31C-22, Dual Ball Valves with Turret and Check, deck-mounted, valves mounted at 90°. Chrome plated. Serrated, full-flow laboratory nozzle. Includes shank assembly with male thread. May be used with most laboratory gases. Includes index buttons marked AIR, GAS. All threaded connections factory assembled. Anti-rotational deck pin in faucet body prevents turning. 909 Valve is Certified for Gas Service per ANSI Z21.15b-2006/CSA 9.1b-2006 by the Canadian Standards Association. Mounting hardware included.
Features
- Includes built-in check
- Laboratory nozzle with 10 serrations for laboratory hose and built- in check valve to prevent backflow
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7TCJKCP
- Includes: 217-PPJKNF
Common Questions
- Is this valve certified for Natural Gas?
- Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: GAS). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
- Does this have backflow protection?
- Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Deck-mounted laboratory turret with two valves at 90°
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Application: Gas
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LGB1-31C-22
- Certifications: ADA
- Service Medium: Natural Gas
- Body Pattern: Straight
- Handle Style: Metal Lever
- Handle Index: GAS
- Outlet Type: Serrated Hose Nozzle
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 7.25
- Backflow Device: Integral Check Valve
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LGB1-31C-22 | 611943179960 | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical | Download |
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LGB1 | Device Type | Deck-mounted laboratory turret with two valves at 90° |
| Body Material | Brass | Application | Gas |
| Pack Qty | 1 | Options | E7TCJKCP, 217-PPJKNF |
| Baa | USA | Backflow device | Integral Check Valve |
| Body pattern | Straight | Coating | Polished Chrome |
| Handle style | Metal Lever | Lead time days | 5 |
| Operating pressure max psi | 7.25 PSI | Prop65 | Yes |
| Handle index | GAS | Outlet type | Serrated Hose Nozzle |
| Media | Natural Gas | — | — |
Certifications & Standards
| ADA | — |
Compare with similar products

| Series | LGB1
| 909
| 909
| 909
| BL-4000
| LGB1CR
|
| Warranty | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| — |
| Spec Sheet | — | |||||
| Device Type | Deck-mounted laboratory turret with two valves at 90°
| Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Hose Cock
| Turret Fitting
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
| — | 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| MNPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ADA
| ADA, ANSI Z21.15/CSA 9.1
| ADA, ANSI Z21.15/CSA 9.1
| ADA, ANSI Z21.15/CSA 9.1
| ANSI Z21.15/CSA 9.1, ADA
| — |
| Pack Qty | 1
| 1
| 1
| 1
| — | — |
| Options | E7TCJKCP, 217-PPJKNF
| E7TJKCP, B0
| E7TCJKCP, B0
| E7TJKSAM
| — | — |
