Chicago Faucets LGB1-21L-65 Methane Laboratory Ball Valve, Wall-Mount

The Chicago Faucets LGB1-21L-65 is a 3/8" Methane laboratory ball valve with NPT connections. It features a brass body.

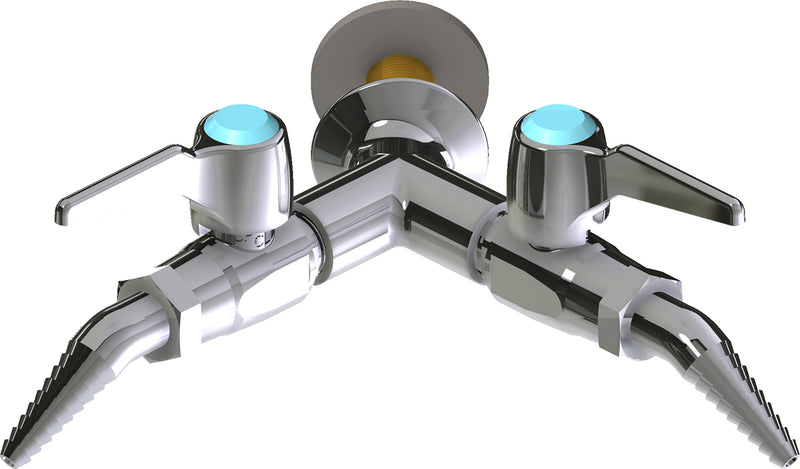

Chicago Faucets No. LGB1-21L-65 Wall-mounted ball valve with flange, polished chrome finish. Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose. Laboratory index button, light blue with black letters, CH4 (Methane).

Features

• Laboratory 30-degree angled nozzle with 10 serrations for laboratory hose
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7XTJKCP
• Includes: 216-678CH4JKNF

Common Questions

Is this valve certified for Methane?

Yes -- this Chicago Faucets fitting is built and indexed for Methane service (index button/label: CH4). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.

Does this ship with the mounting shank?

Yes -- this configuration ships "With Shank," so the mounting shank is included and no separate shank purchase is needed to install it.

Specifications

• Type: Wall-mounted ball valve with flange
• Size: 3/8"
• Connection: NPT
• Body Material: Brass
• Application: Gas
• Warranty: 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LGB1-21L-65
• Certifications: ADA
• Service Medium: Methane
• Outlet Configuration: Dual 90-Degree
• Shank: Included
• Body Pattern: Straight
• Mount Type: Wall-Mount
• Handle Style: Metal Lever
• Handle Index: CH4
• Outlet Type: 30-Degree Serrated Nozzle
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 7.25
• Lead Time (days): 15
