Specifications
Description

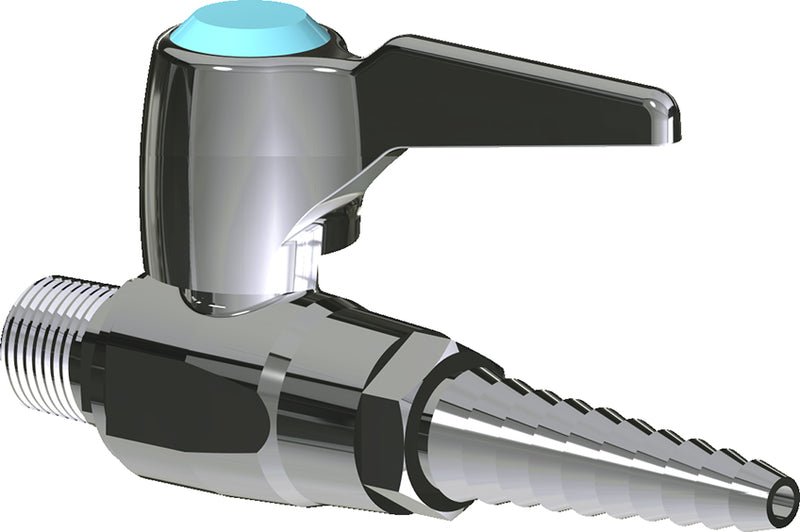

The Chicago Faucets LGB1-11L is a 3/8" Methane laboratory ball valve with NPT connections. It features a brass body.
Chicago Faucets No. LGB1-11L Single ball valve for wall or turret mount, polished chrome finish. Laboratory nozzle with 10 serrations for laboratory hose. Laboratory index button, light blue with black letters, CH4 (Methane).
Features
- Laboratory nozzle with 10 serrations for laboratory hose
- Complies with the requirements of the Buy American Act of 1933.
- Includes: E7TJKCP
- Includes: 216-678CH4JKNF
Common Questions
- Is this valve certified for Methane?
- Yes -- this Chicago Faucets fitting is built and indexed for Methane service (index button/label: CH4). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Specifications
- Type: Single ball valve for wall or turret mount
- Size: 3/8"
- Connection: NPT
- Body Material: Brass
- Application: Gas
- Warranty: 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LGB1-11L
- Certifications: ADA
- Service Medium: Methane
- Shank: Not Applicable
- Body Pattern: Straight
- Mount Type: Panel-Mount
- Handle Style: Metal Lever
- Handle Index: CH4
- Outlet Type: Serrated Hose Nozzle
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 7.25
- Lead Time (days): 15
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LGB1-11L | 611943034658 | 1-year finish; 5-year faucet; 5-year mechanical | Download |
Dimensions
| Size Nominal | 3/8" | End Connection | NPT |
Details
| Series | LGB1 | Device Type | Single ball valve for wall or turret mount |
| Body Material | Brass | Application | Gas |
| Options | E7TJKCP, 216-678CH4JKNF | Baa | USA |
| Body pattern | Straight | Coating | Polished Chrome |
| Handle style | Metal Lever | Lead time days | 15 |
| Mount type | Panel-Mount | Operating pressure max psi | 7.25 PSI |
| Prop65 | Yes | Handle index | CH4 |
| Outlet type | Serrated Hose Nozzle | Media | Methane |
| Shank type | Not Applicable | — | — |
Certifications & Standards
| ADA | — |
Compare with similar products

| Series | LGB1
| 909
| 909
| 909
| BL-4000
| LGB1CR
|
| Warranty | 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| — |
| Spec Sheet | — | |||||
| Device Type | Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Single ball valve for wall or turret mount
| Hose Cock
| Turret Fitting
|
| Size Nominal | 3/8"
| 3/8"
| 3/8"
| 3/8"
| — | 3/8"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| MNPT
| NPT
|
| Body Material | Brass
| Brass
| Brass
| Brass
| Brass
| Brass
|
| Certifications | ADA
| ADA, ANSI Z21.15/CSA 9.1
| ADA, ANSI Z21.15/CSA 9.1
| ADA, ANSI Z21.15/CSA 9.1
| ANSI Z21.15/CSA 9.1, ADA
| — |
| Pack Qty | — | 1
| 1
| 1
| — | — |
| Options | E7TJKCP, 216-678CH4JKNF
| E7TJKCP, B0
| E7TCJKCP, B0
| E7TJKSAM
| — | — |
