Chicago Faucets LGB1-11C-26 Natural Gas Laboratory Ball Valve

The Chicago Faucets LGB1-11C-26 is a 3/8" Natural Gas laboratory ball valve with NPT connections. It features a brass body.

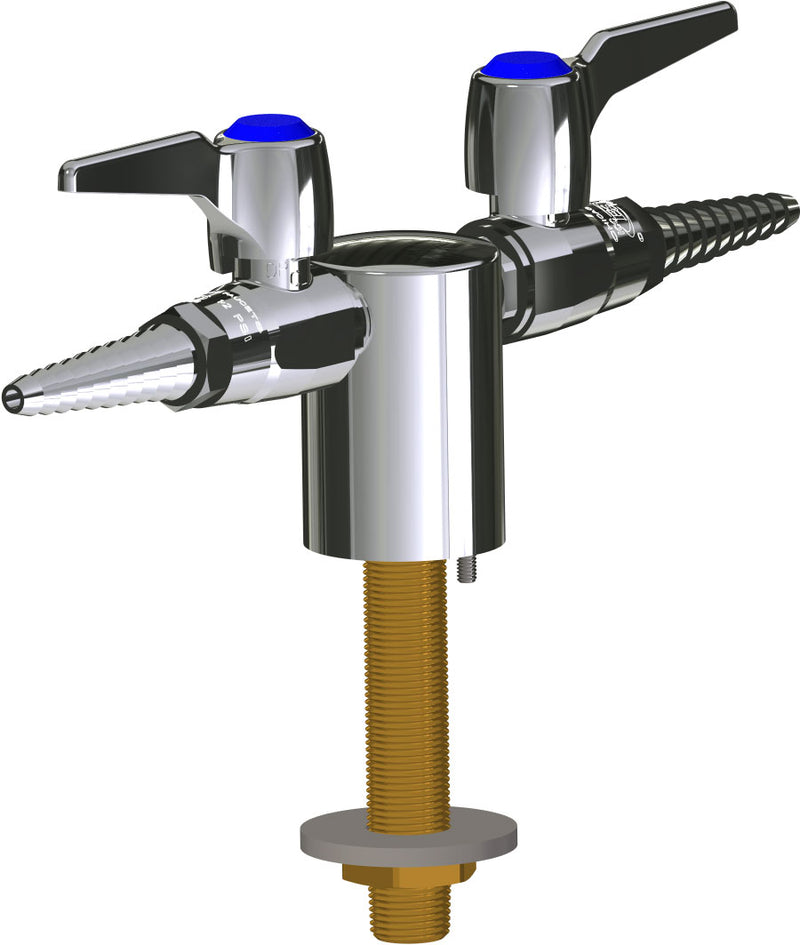

Chicago Faucets No. LGB1-11C-26, Dual Ball Valves with Turret, deck-mounted, valves mounted at 180°. Chrome plated. Serrated, full- flow laboratory nozzle. Includes shank assembly with male thread. Includes index buttons for AIR, GAS, VAC. All threaded connections factory assembled. Anti-rotational deck pin in faucet body prevents turning. 909 Valve is Certified for Gas Service per ANSI Z21.15b-2006/CSA 9.1b-2006 by the Canadian Standards Association. Mounting hardware included.

Features

• Laboratory nozzle with 10 serrations for laboratory hose
• Complies with the requirements of the Buy American Act of 1933.
• Includes: E7TJKCP
• Includes: 216-PPJKNF

Common Questions

Is this valve certified for Natural Gas?

Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: GAS). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.

Specifications

• Type: Deck-mounted laboratory turret with two valves at 180°
• Size: 3/8"
• Connection: NPT
• Body Material: Brass
• Application: Gas
• Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
• MPN: LGB1-11C-26
• Certifications: ADA
• Service Medium: Natural Gas
• Body Pattern: Straight
• Handle Style: Metal Lever
• Handle Index: GAS
• Outlet Type: Serrated Hose Nozzle
• Coating / Finish: Polished Chrome
• Max Operating Pressure (PSI): 7.25
• Lead Time (days): 5
