Specifications
Description
The Chicago Faucets LEF-A61-10T is a lead-free laboratory faucet. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

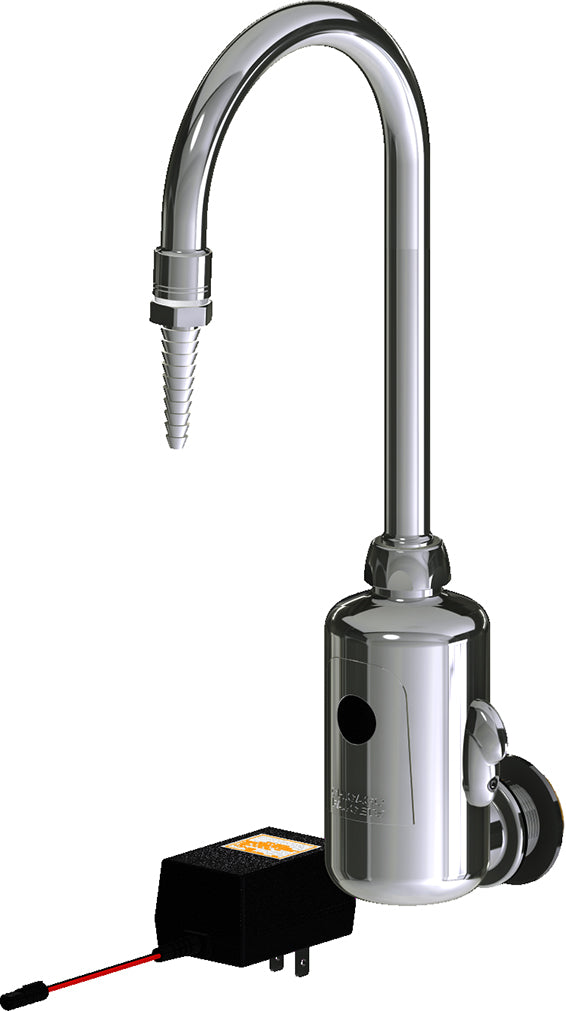

Chicago Faucets No. LEF-A61-10T Touchless electronic sink faucet, polished chrome finish. Single-hole mount. 5-1/4" rigid/swing gooseneck spout. Laboratory nozzle with 10 serrations for laboratory hose. AC operation, includes plug-in, single-use Class 2A transformer. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App.
Features
- Single-hole
- 5-1/4" Rigid/swing gooseneck spout
- Laboratory nozzle with 10 serrations for laboratory hose
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2BJKABCP
- Includes: E7JKCP
- Includes: 242.433.00.1T
- Includes: 240.630.00.1
Common Questions
- Is this lead-free / potable-water safe?
- Yes -- this fitting is certified lead-free (NSF/ANSI 372, ECAST construction, 0.25% or less lead content by weighted average) and safe for a potable-water connection.
Specifications
- Type: Touchless electronic faucet
- Body Material: Brass
- Application: Domestic Water
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LEF-A61-10T
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, Buy American Act
- Lead-Free: Yes
- Service Medium: Water
- Outlet Type: Serrated Hose Nozzle
- Spout Type: Gooseneck
- Mixing Valve: No Mixing Valve
- Coating / Finish: Polished Chrome
- Max Operating Pressure (PSI): 125
- Lead Time (days): 15
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| LEF-A61-10T | 611943180737 | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical | Download |
Details
| Series | LEF | Device Type | Touchless electronic faucet |
| Lead Free | Yes | Body Material | Brass |
| Application | Domestic Water | Max Temp °F | 140.0 °F |
| Options | GN2BJKABCP, E7JKCP, 242.433.00.1T, 240.630.00.1 | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Lead time days | 15 | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Mixing valve | No Mixing Valve |
| Outlet type | Serrated Hose Nozzle | Spout type | Gooseneck |
| Media | Water | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products

| Series | LEF
| LWS1
| 838
| BL-5850
| BL-9505
| BL-5705
|
| Warranty | Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year cartridge; 5-year mechanical
| Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
| One Year (Limited)
| One Year (Limited)
| One Year (Limited)
|
| Spec Sheet | ||||||
| Device Type | Touchless electronic faucet
| Deck-mounted single-inlet water faucet, right-hand control
| Deck-mounted Tygon-lined laboratory pure water fitting
| Laboratory Faucet
| Laboratory Faucet
| Laboratory Faucet
|
| Inlet Size | — | — | — | 1/2"
| 3/8"
| 1/2"
|
| Lead Free | Yes | — | — | — | — | Yes |
| End Connection | — | NPSM
| NPT
| NPSM
| FNPT
| NPSM
|
| Body Material | Brass
| Brass
| Brass
| Brass
| PVC
| Brass
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | — | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA, NSF-372
| — | ASME A112.18.1/CSA B125.1, NSF-372
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, NSF-61 Annex G (61-9), NSF-372, ADA, ASSE-1001
|
| Options | GN2BJKABCP, E7JKCP, 242.433.00.1T, 240.630.00.1
| GN2BVBJKABCP, E7JKCP, 317-JKCP, 1-099XKJKABNF
| — | — | — | — |
| Min Temp °F | 40.0 °F | 40.0 °F | — | 40.0 °F | 40.0 °F | 40.0 °F |
