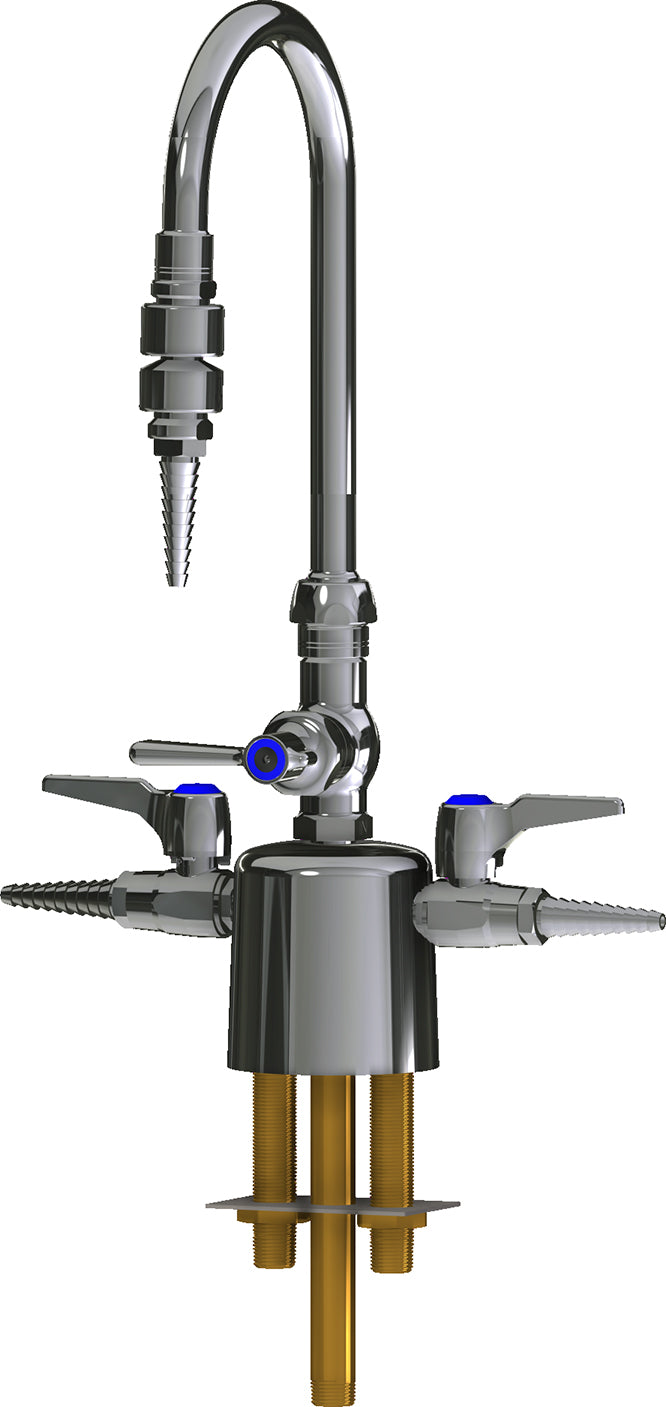

The Chicago Faucets LCF1-CC-C3A3 is a combination fixture with NPT connections. It features a brass body.
Chicago Faucets No. LCF1-CC-C3A3 Deck-mounted triple service combination valve, polished chrome finish. 5-1/4" rigid/swing gooseneck spout. Straight serrated nozzle with vacuum breaker. Quaturn® Control-A-Flo® compression operating cartridge, right-hand turn. 2-3/8" lever handle. Inline atmospheric vacuum breaker.
Features
- Handle includes color-coded index
- 5-1/4" Rigid/swing gooseneck spout
- Straight serrated nozzle with vacuum breaker
- Vandal Proof 2-3/8" Lever handle
- Quaturn® Control-A-Flo® compression operating cartridge, right- hand
- Inline atmospheric vacuum breaker
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2BJKABCP
- Includes: 369-JKCP
- Includes: 1-099-245JKABNF
- Includes: E22JKCP
- Includes: 217-PPJKNF
Common Questions
- Is this valve certified for Natural Gas?
- Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: Natural Gas). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
- Does this have backflow protection?
- Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
-
Type: Deck-mounted triple service combination valve
-
Connection: NPT
-
Body Material: Brass
-
Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
-
MPN: LCF1-CC-C3A3
-
Certifications: ASME A112.18.1/CSA B125.1
-
Service Medium: Natural Gas
-
Cartridge Type: Quaturn Compression
-
Coating / Finish: Polished Chrome
-
Backflow Device: Integral Check Valve
-
Lead Time (days): 15
