Chicago Faucets LCF1-CC-C3A2 Combination Fixture

SKU: LCF1-CC-C3A2
Price:
Sale price$523.79 Regular price$724.32
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $523.79

Free shipping over $200

Key Features

Cartridge Quaturn Compression
Material Brass
Finish Polished Chrome
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

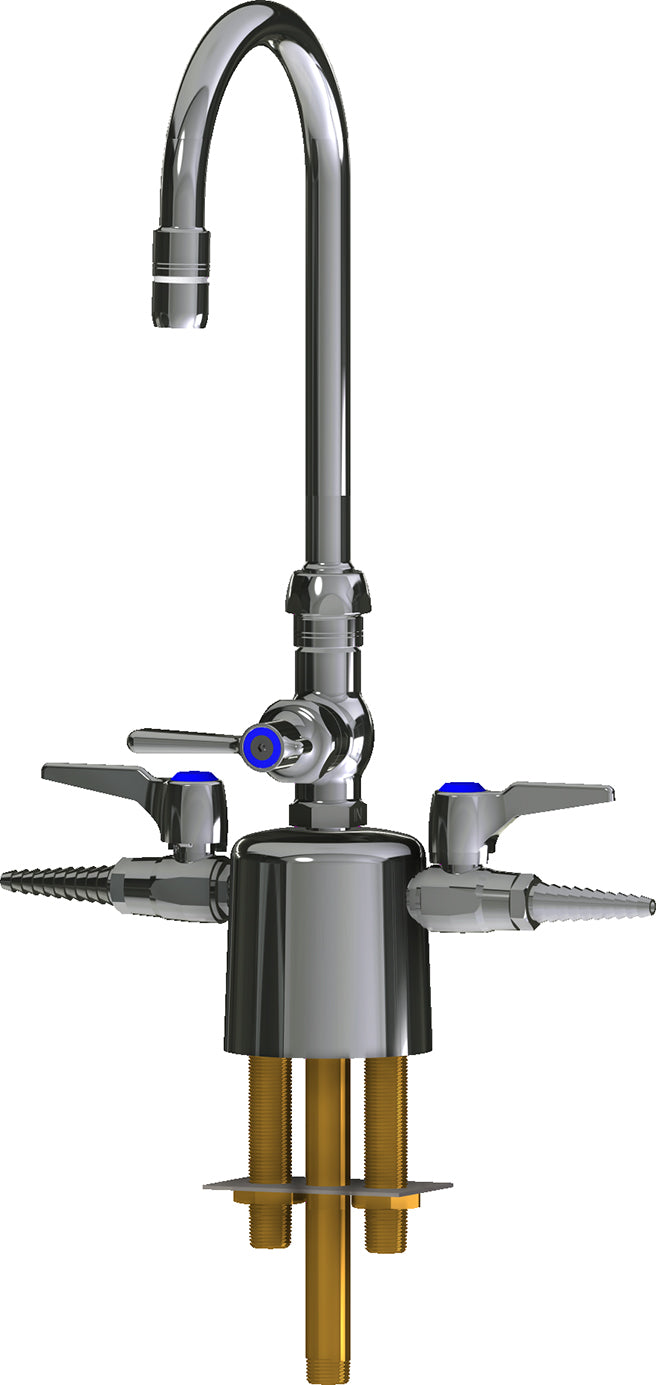

The Chicago Faucets LCF1-CC-C3A2 is a combination fixture with NPT connections. It features a brass body.

Chicago Faucets No. LCF1-CC-C3A2 Deck-mounted triple service combination valve, polished chrome finish. 5-1/4" rigid/swing gooseneck spout. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Quaturn® Control-A-Flo® compression operating cartridge, right- hand turn. 2-3/8" lever handle.

Features

  • Handle includes color-coded index
  • 5-1/4" Rigid/swing gooseneck spout
  • Pressure compensating Softflo® aerator with adapter, 2.2 GPM
  • Vandal Proof 2-3/8" Lever handle
  • Quaturn® Control-A-Flo® compression operating cartridge, right- hand
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: GN2BJKABCP
  • Includes: E3-2JKABCP
  • Includes: 369-JKCP
  • Includes: 1-099-245JKABNF
  • Includes: 217-PPJKNF

Common Questions

Is this valve certified for Natural Gas?
Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: Natural Gas). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
Does this have backflow protection?
Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.

Specifications

  • Type: Deck-mounted triple service combination valve
  • Connection: NPT
  • Body Material: Brass
  • Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
  • MPN: LCF1-CC-C3A2
  • Certifications: ASME A112.18.1/CSA B125.1
  • Service Medium: Natural Gas
  • Cartridge Type: Quaturn Compression
  • Coating / Finish: Polished Chrome
  • Backflow Device: Integral Check Valve
  • Lead Time (days): 15

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
LCF1-CC-C3A2 611943032159 Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical DownloadDownload

Dimensions

End Connection NPT ——

Details

Series LCF1 Device Type Deck-mounted triple service combination valve
Body Material Brass Options GN2BJKABCP, E3-2JKABCP, 369-JKCP, 1-099-245JKABNF, 217-PPJKNF
Baa USA Backflow device Integral Check Valve
Coating Polished Chrome Lead time days 15
Prop65 Yes Cartridge type Quaturn Compression
Media Natural Gas ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 —
