Specifications
Description

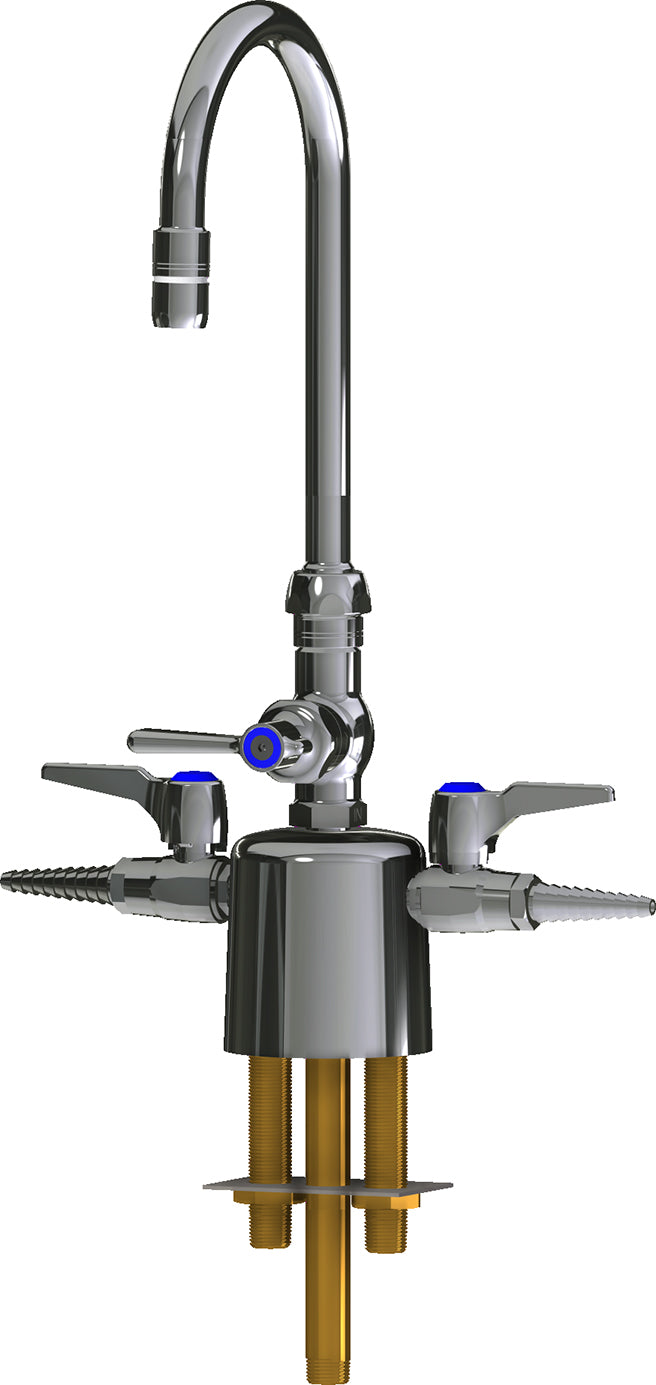

The Chicago Faucets LCF1-CC-B3A2 is a combination fixture with NPT connections. It features a brass body.
Chicago Faucets No. LCF1-CC-B3A2 Deck-mounted triple service combination valve, polished chrome finish. 5-1/4" rigid/swing gooseneck spout. Pressure compensating Softflo® aerator with adapter, 2.2 GPM. Ceramic quarter-turn operating cartridge, right-hand turn. 2-3/8" lever handle.
Features
- Handle includes color-coded index
- 5-1/4" Rigid/swing gooseneck spout
- Pressure compensating Softflo® aerator with adapter, 2.2 GPM
- Vandal Proof 2-3/8" Lever handle
- Ceramic 1/4-turn operating cartridge, right-hand
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2BJKABCP
- Includes: E3-2JKABCP
- Includes: 369-JKCP
- Includes: 1-099XKJKABNF
- Includes: 217-PPJKNF
Common Questions
- Is this valve certified for Natural Gas?
- Yes -- this Chicago Faucets fitting is built and indexed for Natural Gas service (index button/label: Natural Gas). It is not interchangeable with a fitting indexed for a different medium: laboratory gas fittings are certified per-service, so swapping a valve between gases is a code violation, not just a labeling mismatch.
- Does this have backflow protection?
- Yes -- it ships with integral check valve. This matters whenever a hose can be submerged in a vessel or chemical: without backflow protection, a drop in supply pressure can siphon contaminated liquid back into the potable/gas line.
Specifications
- Type: Deck-mounted triple service combination valve
- Connection: NPT
- Body Material: Brass
- Warranty: Lifetime faucet; 1-year finish; 5-year faucet; 5-year mechanical
- MPN: LCF1-CC-B3A2
- Certifications: ASME A112.18.1/CSA B125.1
- Service Medium: Natural Gas
- Cartridge Type: Ceramic 1/4-Turn
- Coating / Finish: Polished Chrome
- Backflow Device: Integral Check Valve
- Lead Time (days): 15
Product Information
Dimensions
| End Connection | NPT | — | — |
Details
| Series | LCF1 | Device Type | Deck-mounted triple service combination valve |
| Body Material | Brass | Options | GN2BJKABCP, E3-2JKABCP, 369-JKCP, 1-099XKJKABNF, 217-PPJKNF |
| Baa | USA | Backflow device | Integral Check Valve |
| Coating | Polished Chrome | Lead time days | 15 |
| Prop65 | Yes | Cartridge type | Ceramic 1/4-Turn |
| Media | Natural Gas | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
