Specifications
Description
The Chicago Faucets H-G61K-83ABCPT is a lead-free HyTronic sensor faucet powered by AC (Plug-In). It includes a thermostatic mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

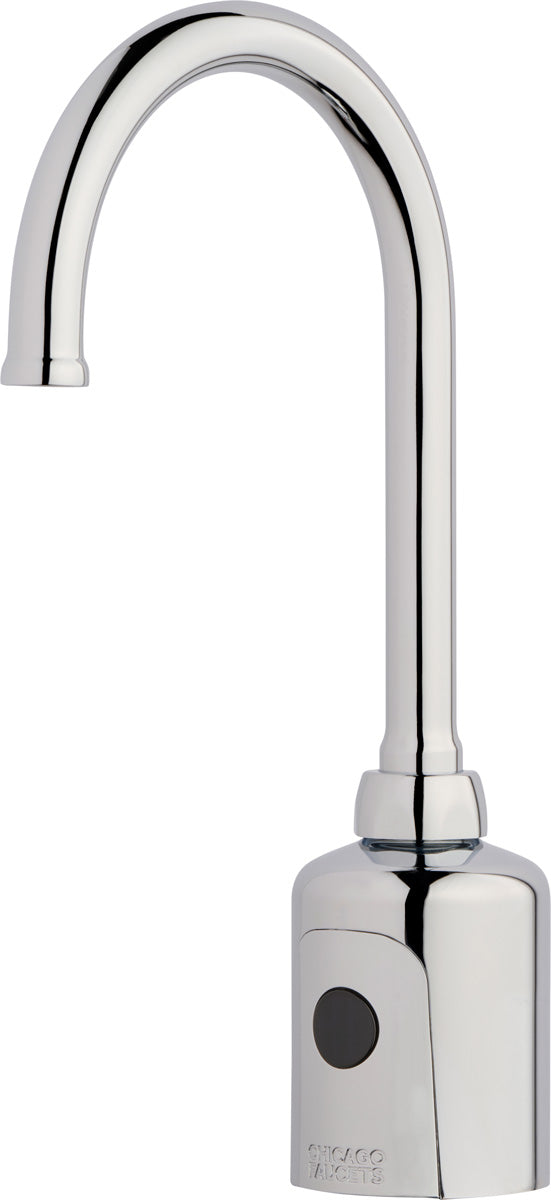

Chicago Faucets No. H-G61K-83ABCPT, HyTronic® electronic faucet with dual-beam infrared sensor, chrome plated. Rigid/swing gooseneck spout, 6" center-to-center, with 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Dual supply for hot and cold water service. 12-volt AC transformer required (order separately). Integrated Emergency Backup Power System (EBPS) for long term protection against power outages. Flexible supply hoses included. Concealed, internal thermostatic temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
- Includes built-in ASSE 1070 thermostatic mixing valve (US Patent
- No. 11,697,929)
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App. (Internal Antenna Specifications: Peak
- Gain of the antenna: –5.47 dBi, Frequency range: 2400-2500
- MHz, FCC ID: 2APTX-CFC01)
- Single-hole (4" and 8" deck plates available, see Accessories)
- 6" Rigid/swing gooseneck spout with 1.5 GPM flow control
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN6FCJKABCP
- Includes: EBPS-001JKNF
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet is powered by a plug-in AC transformer (12V AC Transformer (Order Separately)).
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Touch-free connected faucet with ASSE 1070 scald protection
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: H-G61K-83ABCPT
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372, WaterSense
- Lead-Free: Yes
- Power Source: AC (Plug-In)
- Run Time (s): 40
- Connectivity: Bluetooth
- Mixing Valve: Thermostatic Mixing Valve
- Spout Type: Gooseneck
- Spout Reach (in): 6.0
- Centers: Single-Hole
- Outlet Type: Laminar (Non-Aerating)
- Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Connection: Flexible Supply Hoses
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| H-G61K-83ABCPT | 611943194802 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | H | Device Type | Touch-free connected faucet with ASSE 1070 scald protection |
| Lead Free | Yes | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | GN6FCJKABCP, EBPS-001JKNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Lead time days | 5 | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Centers | Single-Hole |
| Mixing valve | Thermostatic Mixing Valve | Outlet type | Laminar (Non-Aerating) |
| Spout reach in | 6.0 | Spout type | Gooseneck |
| Connectivity | Bluetooth | Power source | AC (Plug-In) |
| Run time s | 40 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| CALGreen | ASSE-1070 |
| NSF-61 | NSF-372 |
| WaterSense | — |
Compare with similar products






| Series | H
| 116
| 116
| 116
| 116
| 116
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Touch-free connected faucet with ASSE 1070 scald protection
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flexible Supply Hoses
| Flexible Supply Hoses
| — | — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | GN6FCJKABCP, EBPS-001JKNF
| 240.723.AB.1, E2805JKABCP, 240.746.AB.1, 242.433.00.1T
| 240.724.AB.1, E2805JKABCP, 242.433.00.1T
| 240.724.AB.1, E39VPJKABCP, 242.433.00.1T
| 240.729.AB.1, E2805JKABCP, 242.433.00.1T
| 240.729.AB.1, E39VPJKABCP, 242.433.00.1T
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
