Chicago Faucets H-G61K-15ABCPT Lead-Free HyTronic Sensor Faucet

SKU: H-G61K-15ABCPT
Price:
Sale price$1,001.96 Regular price$1,385.56
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $1,001.96

Free shipping over $200

Key Features

Type Touch-free faucet with above-deck electronics and ASSE 1070 scald protection
Power Source DC (Battery)
Mixing Thermostatic Mixing Valve
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets H-G61K-15ABCPT is a lead-free HyTronic sensor faucet powered by DC (Battery). It includes a thermostatic mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

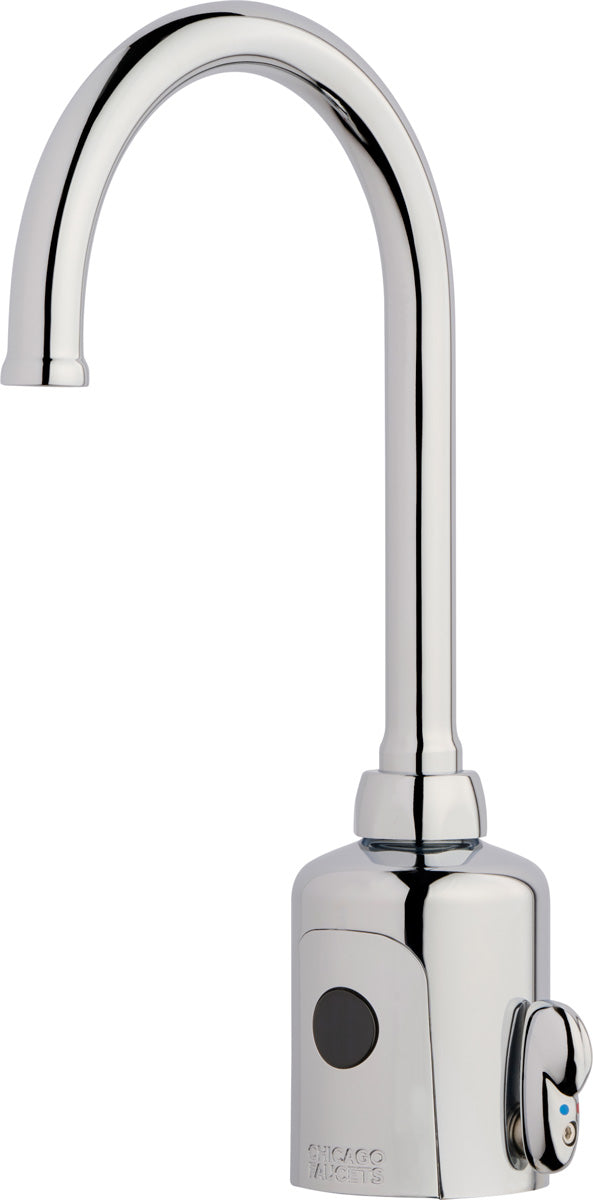

Chicago Faucets No. H-G61K-15ABCPT, HyTronic® electronic faucet with dual-beam infrared sensor, chrome plated. Rigid/swing gooseneck spout, 6" center-to-center, with 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Dual supply for hot and cold water service. 6-volt lithium CRP2 battery included. Flexible supply hoses included. User-adjustable thermostatic temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

  • 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
  • Includes built-in ASSE 1070 thermostatic mixing valve (US Patent
  • No. 11,697,929)
  • 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
  • Faucets CF Connect App. (Internal Antenna Specifications: Peak
  • Gain of the antenna: –5.47 dBi, Frequency range: 2400-2500
  • MHz, FCC ID: 2APTX-CFC01)
  • Single-hole (4" and 8" deck plates available, see Accessories)
  • 6" Rigid/swing gooseneck spout with 1.5 GPM flow control
  • User temperature control handle kit, rounded
  • HyTronic® module kit with Bluetooth® communication
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: GN6FCJKABCP
  • Includes: 240.746.AB.1
  • Includes: 242.434.00.1T

Common Questions

How is this faucet powered, and what is the battery life?
This faucet runs on battery power (6V Lithium CRP2 Battery (Included)). No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
Does it include scald protection?
Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
How long does the water run before it shuts off?
The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
Is this faucet ADA compliant?
Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
Is this faucet lead-free?
Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

  • Type: Touch-free faucet with above-deck electronics and ASSE 1070 scald protection
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
  • MPN: H-G61K-15ABCPT
  • Temperature: 40°F to 140°F
  • Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372, WaterSense
  • Lead-Free: Yes
  • Power Source: DC (Battery)
  • Run Time (s): 40
  • Connectivity: Bluetooth
  • Mixing Valve: Thermostatic Mixing Valve
  • Spout Type: Gooseneck
  • Spout Reach (in): 6.0
  • Centers: Single-Hole
  • Outlet Type: Laminar (Non-Aerating)
  • Finish: Polished Chrome
  • Flow Rate (GPM): 1.5
  • Connection: Flexible Supply Hoses
  • Max Operating Pressure (PSI): 125
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec Sheet
H-G61K-15ABCPT 611943190460 Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical Download

Dimensions

End Connection Flexible Supply Hoses ——

Details

Series H Device Type Touch-free faucet with above-deck electronics and ASSE 1070 scald protection
Lead Free Yes Max Temp °F 140.0 °F
Pack Qty 1 Options GN6FCJKABCP, 240.746.AB.1, 242.434.00.1T
Min Temp °F 40.0 °F Baa USA
Coating Polished Chrome Flow rate gpm 1.5 GPM
Lead time days 5 Operating pressure max psi 125.0 PSI
Prop65 Yes Centers Single-Hole
Mixing valve Thermostatic Mixing Valve Outlet type Laminar (Non-Aerating)
Spout reach in 6.0 Spout type Gooseneck
Connectivity Bluetooth Power source DC (Battery)
Run time s 40 ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA
CALGreen ASSE-1070
NSF-61 NSF-372
WaterSense —
