Specifications
Description

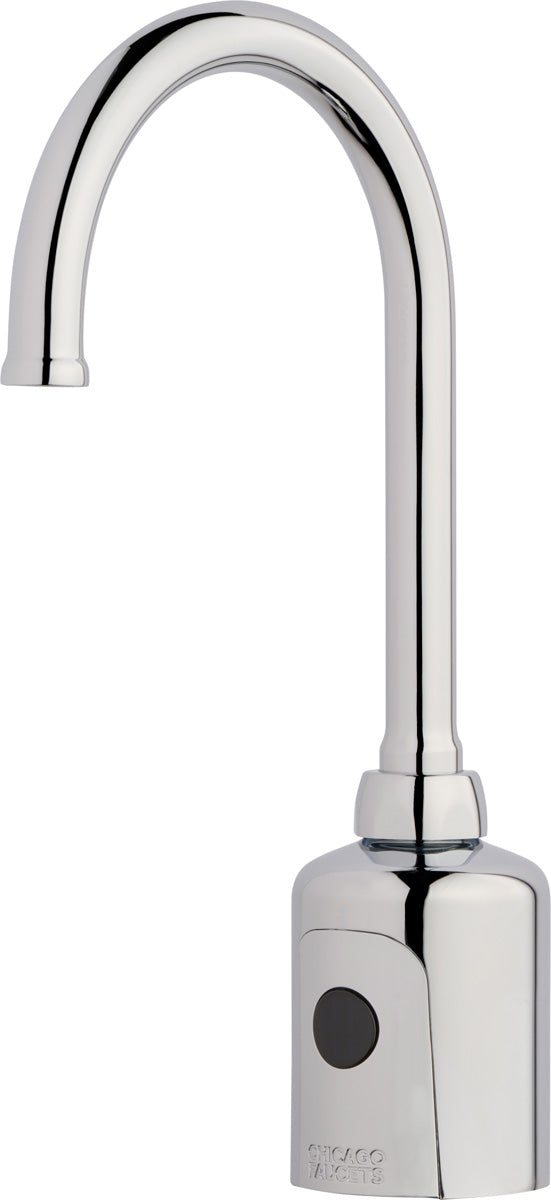

The Chicago Faucets H-G11K-63ABCPT is a lead-free HyTronic sensor faucet powered by LTPS (Turbine). It includes a thermostatic mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. H-G11K-63ABCPT, HyTronic® electronic faucet with dual-beam infrared sensor, chrome plated. Rigid/swing gooseneck spout, 5-1/4" center-to-center, with 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Dual supply for hot and cold water service. Powered by Long Term Power System (LTPS) - provides maintenance-free power for 15 years or more, depending on usage. Flexible supply hoses included. Concealed, internal thermostatic temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
- Includes built-in ASSE 1070 thermostatic mixing valve (US Patent
- No. 11,697,929)
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App. (Internal Antenna Specifications: Peak
- Gain of the antenna: –5.47 dBi, Frequency range: 2400-2500
- MHz, FCC ID: 2APTX-CFC01)
- Single-hole (4" and 8" deck plates available, see Accessories)
- 5-1/4" Rigid/swing gooseneck spout with 1.5 GPM flow control
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2H8FCJKABCP
- Includes: 242.434.00.1T
- Includes: 243.868.00.1
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet uses Chicago Faucets' Long Term Power System (LTPS), a self-contained turbine that needs no battery replacement or wiring. Chicago Faucets rates it maintenance-free for 15+ Years (Maintenance-Free).
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Touch-free faucet with above-deck electronics and ASSE 1070 scald protection
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: H-G11K-63ABCPT
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, CALGreen, NSF-372, NSF-61, WaterSense
- Lead-Free: Yes
- Power Source: LTPS (Turbine)
- Run Time (s): 40
- Connectivity: Bluetooth
- Mixing Valve: Thermostatic Mixing Valve
- Spout Type: Gooseneck
- Spout Reach (in): 5.25
- Centers: Single-Hole
- Outlet Type: Laminar (Non-Aerating)
- Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Connection: Flexible Supply Hoses
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| H-G11K-63ABCPT | 611943182502 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | H | Device Type | Touch-free faucet with above-deck electronics and ASSE 1070 scald protection |
| Lead Free | Yes | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | GN2H8FCJKABCP, 242.434.00.1T, 243.868.00.1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.5 GPM |
| Lead time days | 5 | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Centers | Single-Hole |
| Mixing valve | Thermostatic Mixing Valve | Outlet type | Laminar (Non-Aerating) |
| Spout reach in | 5.25 | Spout type | Gooseneck |
| Connectivity | Bluetooth | Power source | LTPS (Turbine) |
| Run time s | 40 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| ASSE-1070 | CALGreen |
| NSF-372 | NSF-61 |
| WaterSense | — |
Compare with similar products






| Series | H
| 116
| 116
| 116
| 116
| 116
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Touch-free faucet with above-deck electronics and ASSE 1070 scald protection
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
| Touch-free, programmable faucet with above-deck electronics
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flexible Supply Hoses
| Flexible Supply Hoses
| — | — | — | — |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, CALGreen, NSF-372, NSF-61, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | GN2H8FCJKABCP, 242.434.00.1T, 243.868.00.1
| 240.723.AB.1, E2805JKABCP, 240.746.AB.1, 242.433.00.1T
| 240.724.AB.1, E2805JKABCP, 242.433.00.1T
| 240.724.AB.1, E39VPJKABCP, 242.433.00.1T
| 240.729.AB.1, E2805JKABCP, 242.433.00.1T
| 240.729.AB.1, E39VPJKABCP, 242.433.00.1T
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
