The Chicago Faucets H-G11K-43ABCPT is a lead-free HyTronic sensor faucet powered by AC (Plug-In). It includes a thermostatic mixing valve. It delivers 1.5 GPM. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

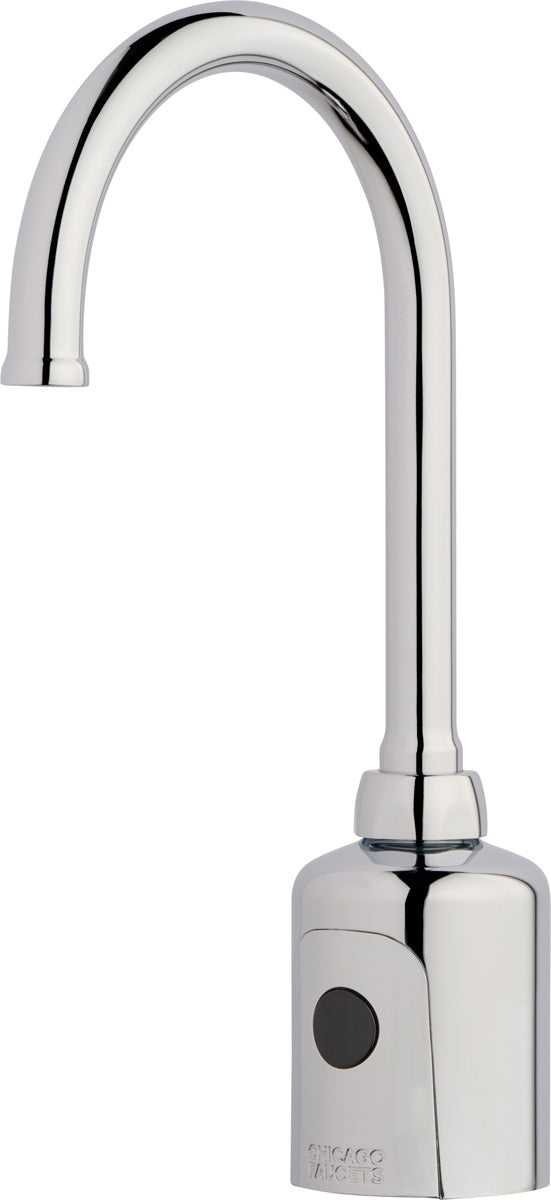

Chicago Faucets No. H-G11K-43ABCPT, HyTronic electronic faucet with dual-beam infrared sensor, chrome plated. Rigid/swing gooseneck spout, 5-1/4" center-to-center, with 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet. Dual supply for hot and cold water service. 12-volt AC transformer required (order separately). Flexible supply hoses included. Concealed, internal thermostatic temperature control mixer. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 1.5 GPM (5.7 L/min) laminar flow control insert in spout inlet
- Includes built-in ASSE 1070 thermostatic mixing valve (US Patent
- No. 11,697,929)
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App. (Internal Antenna Specifications: Peak
- Gain of the antenna: –5.47 dBi, Frequency range: 2400-2500
- MHz, FCC ID: 2APTX-CFC01)
- Single-hole (4" and 8" deck plates available, see Accessories)
- 5-1/4" Rigid/swing gooseneck spout with 1.5 GPM flow control
- HyTronic® module kit with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: GN2H8FCJKABCP
- Includes: 242.434.00.1T
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet is powered by a plug-in AC transformer (12V AC Transformer (Order Separately)).
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Touch-free faucet with above-deck electronics and ASSE 1070 scald protection
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
-
MPN: H-G11K-43ABCPT
-
Temperature: 40°F to 140°F
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372, WaterSense
-
Lead-Free: Yes
-
Power Source: AC (Plug-In)
-
Run Time (s): 40
-
Connectivity: Bluetooth
-
Mixing Valve: Thermostatic Mixing Valve
-
Spout Type: Gooseneck
-
Spout Reach (in): 5.25
-
Centers: Single-Hole
-
Outlet Type: Laminar (Non-Aerating)
-
Finish: Polished Chrome
-
Flow Rate (GPM): 1.5
-
Connection: Flexible Supply Hoses
-
Max Operating Pressure (PSI): 125
-
Lead Time (days): 5
