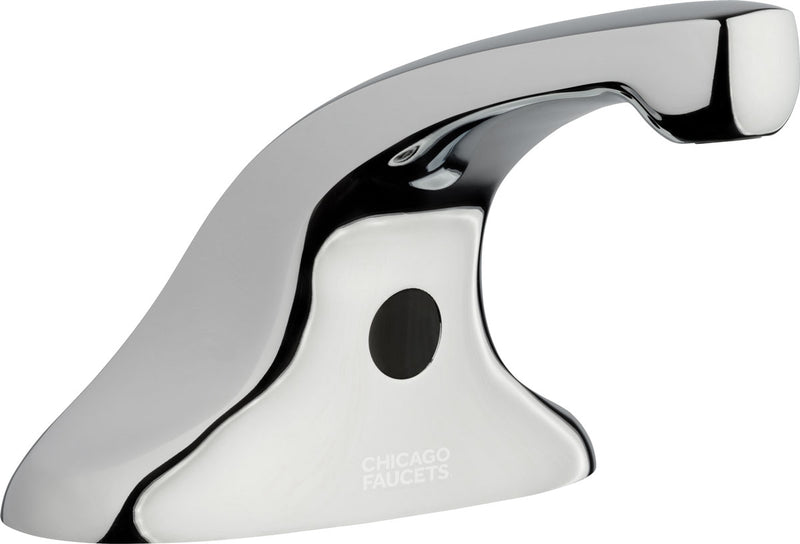

Chicago Faucets EVR-A12D-63ABCPT Lead-Free EVR Sensor Faucet

SKU: EVR-A12D-63ABCPT
Price:
Sale price$798.41 Regular price$1,104.08
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $798.41

Free shipping over $200

Key Features

Type Touchless faucet with plug-and-play installation
Power Source LTPS (Turbine)
Mixing Thermostatic Mixing Valve
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets EVR-A12D-63ABCPT is a lead-free EVR sensor faucet powered by LTPS (Turbine). It includes a thermostatic mixing valve. It delivers 0.35 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. EVR-A12D-63ABCP, EVR Series Lavatory Sink Faucet with hands-free infrared detection, 4" fixed centers. Chrome plated. 0.35 GPM (1.3 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Powered by Long Term Power System (LTPS) - provides maintenance-free power for 15 years or more, depending on usage. Includes flexible supply hose(s). Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box. On-demand IR detection for hands-free actuation and maximum water savings. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, ASSE 1070 Certified, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

  • Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
  • 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
  • Faucets CF Connect App.
  • Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
  • 4" fixed centers
  • Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.35 GPM
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 243.698.AB.1
  • Includes: EVR-63KJKABNF

Common Questions

How is this faucet powered, and what is the battery life?
This faucet uses Chicago Faucets' Long Term Power System (LTPS), a self-contained turbine that needs no battery replacement or wiring. Chicago Faucets rates it maintenance-free for 15+ Years (Maintenance-Free).
Does it include scald protection?
Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
How long does the water run before it shuts off?
The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
Is this faucet lead-free?
Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

  • Type: Touchless faucet with plug-and-play installation
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
  • MPN: EVR-A12D-63ABCPT
  • Certifications: ASME A112.18.1/CSA B125.1, CALGreen, ASSE-1070, NSF-61, NSF-372
  • Lead-Free: Yes
  • Power Source: LTPS (Turbine)
  • Run Time (s): 40
  • Connectivity: Bluetooth
  • Mixing Valve: Thermostatic Mixing Valve
  • Centers: 4"
  • Outlet Type: Spray (Non-Aerating)
  • Pressure Compensating: Yes
  • Finish: Polished Chrome
  • Flow Rate (GPM): 0.35
  • Connection: Flexible Supply Hoses
  • Vandal Resistant: Yes
  • Quick Ship: Yes
  • Lead Time (days): 3

Product Information

SKUUPCWarrantySpec Sheet
EVR-A12D-63ABCPT 611943165550 Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical Download

Dimensions

End Connection Flexible Supply Hoses ——

Details

Series EVR Device Type Touchless faucet with plug-and-play installation
Lead Free Yes Pack Qty 1
Options 243.698.AB.1, EVR-63KJKABNF Baa USA
Coating Polished Chrome Flow rate gpm 0.35 GPM
Lead time days 3 Prop65 Yes
Quick ship Yes Vandal resistant Yes
Centers 4" Mixing valve Thermostatic Mixing Valve
Outlet type Spray (Non-Aerating) Pressure compensating Yes
Connectivity Bluetooth Power source LTPS (Turbine)
Run time s 40 ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 CALGreen
ASSE-1070 NSF-61
NSF-372 —
