Specifications
Description

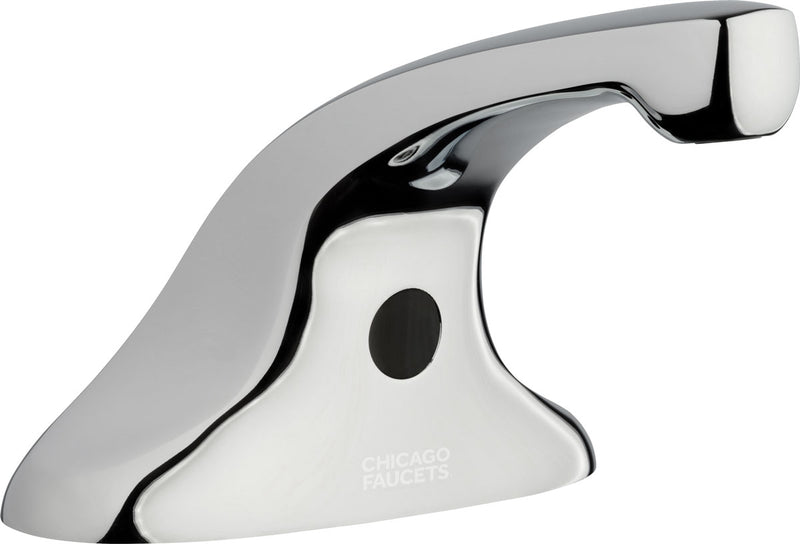

The Chicago Faucets EVR-A12D-13ABCPT is a lead-free EVR sensor faucet powered by DC (Battery). It includes a thermostatic mixing valve. It delivers 0.35 GPM. This model is certified lead-free for potable-water installations.
Chicago Faucets No. EVR-A12D-13ABCP, EVR Series Lavatory Sink Faucet with hands-free infrared detection, 4" fixed centers. Chrome plated. 0.35 GPM (1.3 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Powered by 4 "AA" alkaline batteries (included) - up to 5-year battery life. Includes flexible supply hose(s). Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box. On-demand IR detection for hands-free actuation and maximum water savings. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, ASSE 1070 Certified, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
- 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
- 4" fixed centers
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.35 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 243.698.AB.1
- Includes: EVR-13KJKABNF
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet runs on battery power (4x AA Alkaline Batteries (Included)). Chicago Faucets states a battery life of Up to 5 Years. No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Touchless faucet with plug-and-play installation
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: EVR-A12D-13ABCPT
- Certifications: ASME A112.18.1/CSA B125.1, CALGreen, ASSE-1070, NSF-61, NSF-372
- Lead-Free: Yes
- Power Source: DC (Battery)
- Run Time (s): 40
- Connectivity: Bluetooth
- Mixing Valve: Thermostatic Mixing Valve
- Centers: 4"
- Outlet Type: Spray (Non-Aerating)
- Pressure Compensating: Yes
- Finish: Polished Chrome
- Flow Rate (GPM): 0.35
- Connection: Flexible Supply Hoses
- Vandal Resistant: Yes
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| EVR-A12D-13ABCPT | 611943165543 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | EVR | Device Type | Touchless faucet with plug-and-play installation |
| Lead Free | Yes | Pack Qty | 1 |
| Options | 243.698.AB.1, EVR-13KJKABNF | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 0.35 GPM |
| Lead time days | 3 | Prop65 | Yes |
| Quick ship | Yes | Vandal resistant | Yes |
| Centers | 4" | Mixing valve | Thermostatic Mixing Valve |
| Outlet type | Spray (Non-Aerating) | Pressure compensating | Yes |
| Connectivity | Bluetooth | Power source | DC (Battery) |
| Run time s | 40 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | CALGreen |
| ASSE-1070 | NSF-61 |
| NSF-372 | — |
Compare with similar products


| Series | EVR
| EVR
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||
| Device Type | Touchless faucet with plug-and-play installation
| Touchless faucet with plug-and-play installation
|
| Lead Free | Yes | Yes |
| End Connection | Flexible Supply Hoses
| Flexible Supply Hoses
|
| Certifications | ASME A112.18.1/CSA B125.1, CALGreen, ASSE-1070, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, CALGreen, NSF-61, NSF-372
|
| Pack Qty | 1
| 1
|
| Options | 243.698.AB.1, EVR-13KJKABNF
| 243.145.AB.1, EVR-12KJKABNF
|
