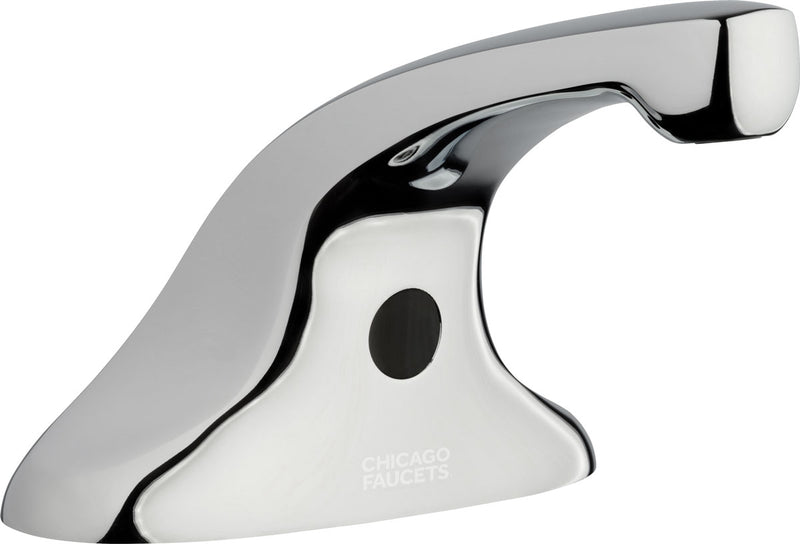

Chicago Faucets EVR-A12A-42ABCPT Lead-Free EVR Sensor Faucet

The Chicago Faucets EVR-A12A-42ABCPT is a lead-free EVR sensor faucet powered by AC (Plug-In). It includes a mechanical mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. EVR-A12A-42ABCP, EVR Series Lavatory Sink Faucet with hands-free infrared detection, 4" fixed centers. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Power supply from 120 VAC to 6 VDC with spade terminals for wall socket plug-in connection for up to 6 EVR faucets (not included). Includes flexible supply hose(s). Includes concealed mechanical mixing valve. On-demand IR detection for hands-free actuation and maximum water savings. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST™ construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 372 and NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

• 40 second run time with hand presence. Safety auto-timeout feature will shut the water off after 40 seconds.
• Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
• Faucets CF Connect App.
• Internal Antenna Specifications: Peak Gain of the antenna: +1.51 dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC03
• 4" fixed centers
• Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• Includes: 243.145.AB.1
• Includes: EVR-42KJKABNF

Common Questions

How is this faucet powered, and what is the battery life?

This faucet is powered by a plug-in AC transformer.

Does it include scald protection?

It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.

How long does the water run before it shuts off?

The sensor holds the water on for 40 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.

Is this faucet lead-free?

Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

• Type: Touchless faucet with plug-and-play installation
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
• MPN: EVR-A12A-42ABCPT
• Certifications: ASME A112.18.1/CSA B125.1, CALGreen, NSF-61, NSF-372
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Run Time (s): 40
• Connectivity: Bluetooth
• Mixing Valve: Mechanical Mixing Valve
• Centers: 4"
• Outlet Type: Spray (Non-Aerating)
• Pressure Compensating: Yes
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Connection: Flexible Supply Hoses
• Vandal Resistant: Yes
• Quick Ship: Yes
• Lead Time (days): 3
