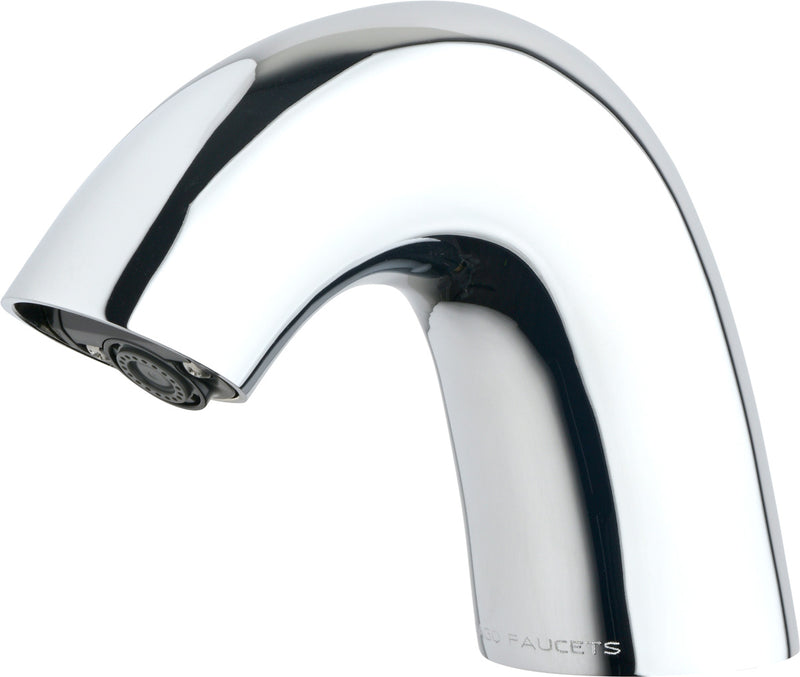

Chicago Faucets EQ-R11A-31ABCP Lead-Free EQ Series Sensor Faucet

The Chicago Faucets EQ-R11A-31ABCP is a lead-free EQ Series sensor faucet powered by AC (Plug-In). It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. EQ-R11A-31ABCP, EQ® Arc Series Lavatory Sink Faucet with hands-free infrared detection, single-hole deck mount. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Single supply for tempered water. Power supply from 120 VAC, 60 Hz to 6 VDC with spade terminals for wall socket plug-in connection (included). Includes flexible supply hose(s). No mixer included. On-demand IR detection for hands-free actuation and maximum water savings. 20 seconds standard maximum run time; drops to 10 seconds in high use enviroments for additional water savings. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Single-hole
• EQ® Arc spout, polished chrome
• Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• Includes: 243.145.AB.1
• Includes: EQ-003JKNF
• Includes: EQ-31KJKABNF

Common Questions

How is this faucet powered, and what is the battery life?

This faucet is powered by a plug-in AC transformer (120 VAC to 6 VDC Plug-In Transformer (Included)).

Does it include scald protection?

No. This model has no mixing valve -- it runs on a single supply of already-tempered water, or delivers whichever single supply it is piped to. Mix hot and cold ahead of the faucet if the application needs a controlled temperature.

How long does the water run before it shuts off?

The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.

Is this faucet ADA compliant?

Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.

Is this faucet lead-free?

Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

• Type: EQ® Arc compact touchless faucet with advanced electronics
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
• MPN: EQ-R11A-31ABCP
• Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-61, NSF-372
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Run Time (s): 10
• Mixing Valve: No Mixing Valve
• Centers: Single-Hole
• Outlet Type: Spray (Non-Aerating)
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Vandal Resistant: Yes
• Lead Time (days): 5
