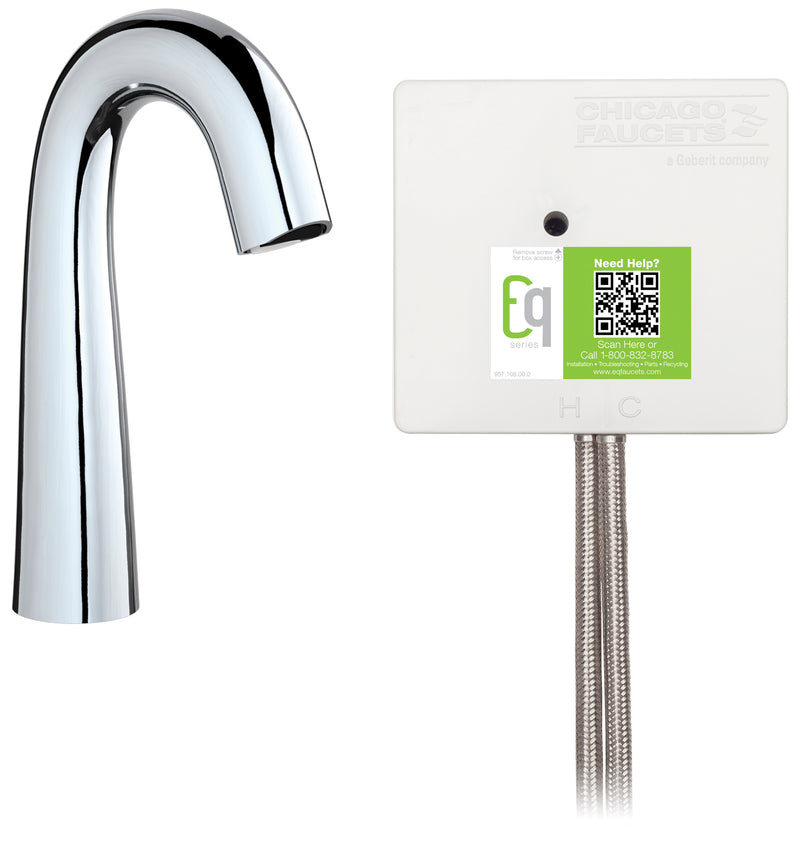

Chicago Faucets EQ-C11A-32ABCPT Lead-Free EQ Series Sensor Faucet

The Chicago Faucets EQ-C11A-32ABCPT is a lead-free EQ Series sensor faucet powered by AC (Plug-In). It includes a mechanical mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. EQ-C11A-32ABCPT, EQ High Arc Series Lavatory Sink Faucet with hands-free infrared detection, single-hole deck mount. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Power supply from 120 VAC to 6 VDC with spade terminals for wall socket plug-in connection for up to 6 EQ faucets (included). Includes flexible supply hose(s). Includes concealed mechanical mixing valve. On-demand IR detection for hands-free actuation and maximum water savings. 10 seconds standard run time to save water in high use environments. ECAST™ construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen). Contains BLE Module MC002 FCC ID: 2AVPG-MCX

Features

• 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
• Single-hole
• EQ® High Arc spout, polished chrome, 0.5 GPM
• Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• Includes: EQ-C11A-KJKABCP
• Includes: 243.145.AB.1
• Includes: EQ-003JKNF
• Includes: EQ-32KJKABNFT

Common Questions

How is this faucet powered, and what is the battery life?

This faucet is powered by a plug-in AC transformer (120 VAC to 6 VDC Plug-In Transformer (Included)).

Does it include scald protection?

It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.

How long does the water run before it shuts off?

The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.

Is this faucet ADA compliant?

Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.

Is this faucet lead-free?

Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

• Type: Touch-free faucet with Bluetooth communication
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
• MPN: EQ-C11A-32ABCPT
• Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
• Lead-Free: Yes
• Power Source: AC (Plug-In)
• Run Time (s): 10
• Connectivity: Bluetooth
• Mixing Valve: Mechanical Mixing Valve
• Spout Type: High-Arc
• Centers: Single-Hole
• Outlet Type: Spray (Non-Aerating)
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Finish: Polished Chrome
• Flow Rate (GPM): 0.5
• Connection: Flexible Supply Hoses
• Vandal Resistant: Yes
• Lead Time (days): 5
