The Chicago Faucets EQ-A11A-12ABCPT is a lead-free EQ Series sensor faucet powered by DC (Battery). It includes a mechanical mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

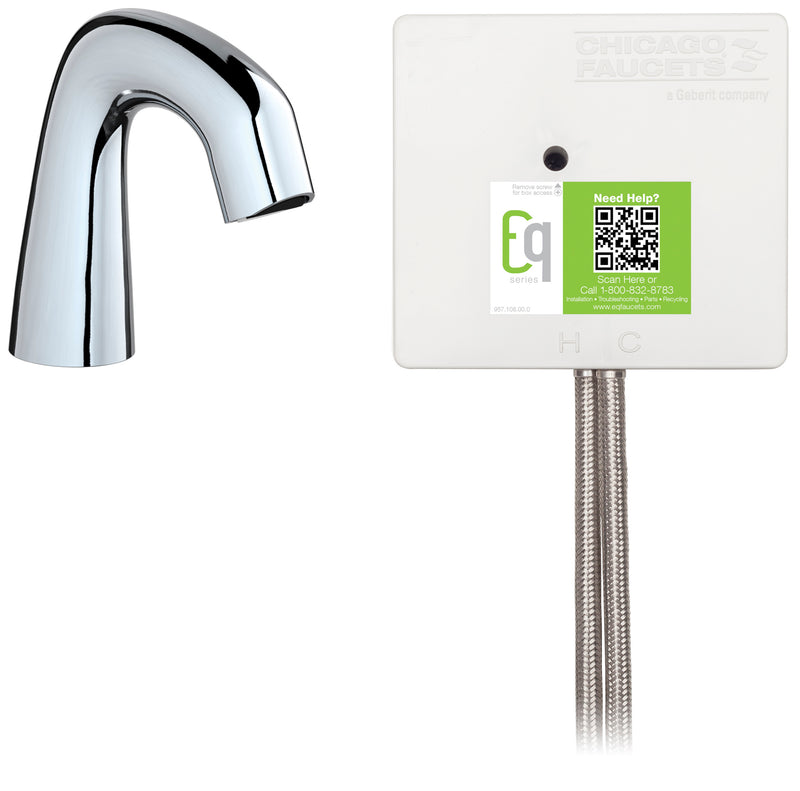

Chicago Faucets No. EQ-A11A-12ABCPT, EQ Curved Series Lavatory Sink Faucet with hands-free infrared detection, single-hole deck mount. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Powered by 4 "AA" alkaline batteries (included) - up to 5-year battery life. Includes flexible supply hose(s). Includes concealed mechanical mixing valve. On-demand IR detection for hands-free actuation and maximum water savings. 10 seconds standard run time to save water in high use environments. ECAST™ construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen). Contains BLE Module MC002 FCC ID: 2AVPG- MCX
Features
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Single-hole
- EQ® Curved spout, polished chrome, 0.5 GPM
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: EQ-A11A-KJKABCP
- Includes: 243.145.AB.1
- Includes: EQ-12KJKABNFT
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet runs on battery power (4x AA Alkaline Batteries (Included)). Chicago Faucets states a battery life of Up to 5 Years. No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
- Does it include scald protection?
- It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
- How long does the water run before it shuts off?
- The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Touch-free faucet with Bluetooth communication
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
-
MPN: EQ-A11A-12ABCPT
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
-
Lead-Free: Yes
-
Power Source: DC (Battery)
-
Run Time (s): 10
-
Connectivity: Bluetooth
-
Mixing Valve: Mechanical Mixing Valve
-
Spout Type: Curved
-
Centers: Single-Hole
-
Outlet Type: Spray (Non-Aerating)
-
Pressure Compensating: Yes
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.5
-
Connection: Flexible Supply Hoses
-
Vandal Resistant: Yes
-
Lead Time (days): 5
