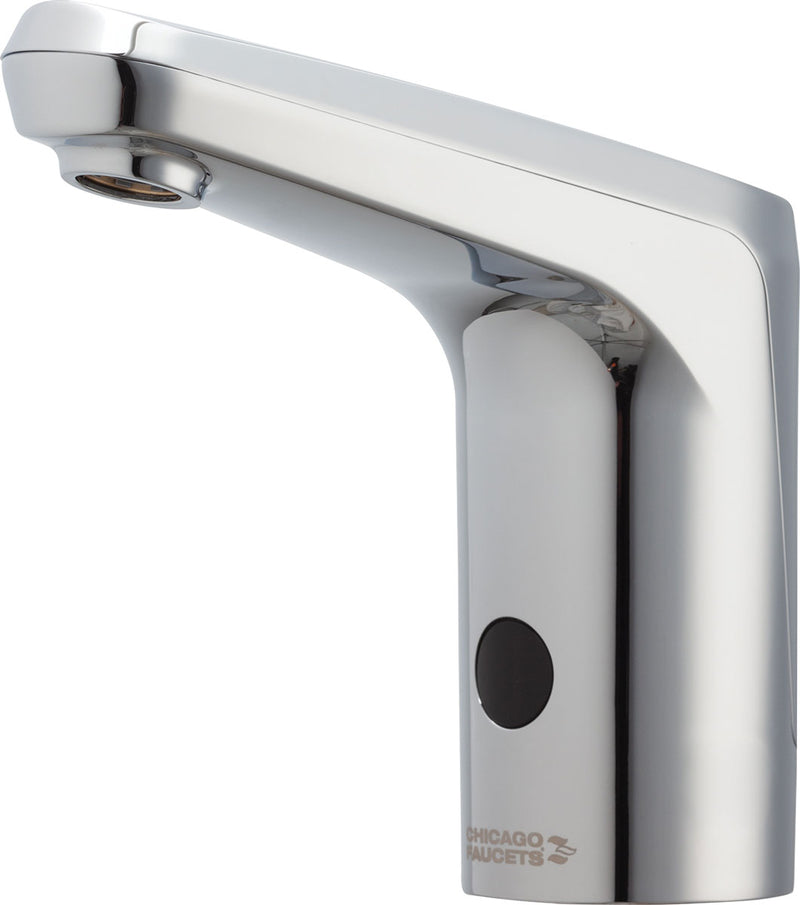

Chicago Faucets E80-A11F-11ABCPT Lead-Free E-Tronic 80 Sensor Faucet

SKU: E80-A11F-11ABCPT
Price:
Sale price$493.04 Regular price$681.80
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $493.04

Free shipping over $200

Key Features

Type Advanced electronic commercial faucet with touchless sensor operation
Power Source DC (Battery)
Mixing No Mixing Valve
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets E80-A11F-11ABCPT is a lead-free E-Tronic 80 sensor faucet powered by DC (Battery). It delivers 1.5 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. E80-A11F-11ABCPT, E-Tronic™ 80 electronic faucet with dual-beam infrared sensor. Integral spout, chrome plated. Single-hole deck mount. 1.5 GPM (5.7 L/min) vandal-proof, pressure compensating, Econo-Flo, laminar flow. Single supply for tempered water. 6 Volt Lithium CRP2 Battery (Included). Flexible supply hose included. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST™ construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

  • 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
  • Faucets CF Connect App.
  • Internal Antenna Specifications: Peak Gain of the antenna:
  • ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
  • Single-hole
  • Vandal Proof Pressure compensating laminar flow outlet, 1.5 GPM
  • E-Tronic® 80 module with Bluetooth® communication
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: 244.169.00.1
  • Includes: 244.458.00.1T

Common Questions

How is this faucet powered, and what is the battery life?
This faucet runs on battery power (6V Lithium CRP2 Battery (Included)). No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
Does it include scald protection?
No. This model has no mixing valve -- it runs on a single supply of already-tempered water, or delivers whichever single supply it is piped to. Mix hot and cold ahead of the faucet if the application needs a controlled temperature.
How long does the water run before it shuts off?
The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
Is this faucet ADA compliant?
Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
Is this faucet lead-free?
Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

  • Type: Advanced electronic commercial faucet with touchless sensor operation
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
  • MPN: E80-A11F-11ABCPT
  • Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372, WaterSense
  • Lead-Free: Yes
  • Power Source: DC (Battery)
  • Run Time (s): 10
  • Connectivity: Bluetooth
  • Mixing Valve: No Mixing Valve
  • Spout Type: Integral
  • Centers: Single-Hole
  • Outlet Type: Laminar (Non-Aerating)
  • Pressure Compensating: Yes
  • Mount Type: Deck-Mount
  • Finish: Polished Chrome
  • Flow Rate (GPM): 1.5
  • Vandal Resistant: Yes
  • Quick Ship: Yes
  • Lead Time (days): 3

Product Information

SKUUPCWarrantySpec Sheet
E80-A11F-11ABCPT 611943165055 Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical Download

Details

Series E80 Device Type Advanced electronic commercial faucet with touchless sensor operation
Lead Free Yes Pack Qty 1
Options 244.169.00.1, 244.458.00.1T Baa USA
Coating Polished Chrome Flow rate gpm 1.5 GPM
Lead time days 3 Mount type Deck-Mount
Prop65 Yes Quick ship Yes
Vandal resistant Yes Centers Single-Hole
Mixing valve No Mixing Valve Outlet type Laminar (Non-Aerating)
Pressure compensating Yes Spout type Integral
Connectivity Bluetooth Power source DC (Battery)
Run time s 10 ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA
NSF-61 NSF-372
WaterSense —

Compare with similar products

Series
E80
E80
E80
E80
E80
E80
Warranty
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Spec Sheet
Device Type
Advanced electronic commercial faucet with touchless sensor operation
Advanced electronic commercial faucet with touchless sensor operation and ASSE 1070 scald protection
Advanced electronic commercial faucet with touchless sensor operation
Advanced electronic commercial faucet with touchless sensor operation
Advanced electronic commercial faucet with touchless sensor operation and ASSE 1070 scald protection
Advanced electronic commercial faucet with touchless sensor operation
Lead Free
Yes
Yes
Yes
Yes
Yes
Yes
End Connection
—
Flexible Supply Hoses
Flexible Supply Hoses
—
Flexible Supply Hoses
Flexible Supply Hoses
Certifications
ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372, WaterSense
ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372
ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372
ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
Pack Qty
1
1
1
1
1
1
Options
244.169.00.1, 244.458.00.1T
244.168.00.1, 244.458.00.1T
244.168.00.1, 244.458.00.1T
244.168.00.1, 244.458.00.1T
244.168.00.1, 244.458.00.1T
244.168.00.1, 244.458.00.1T
