Specifications
Description

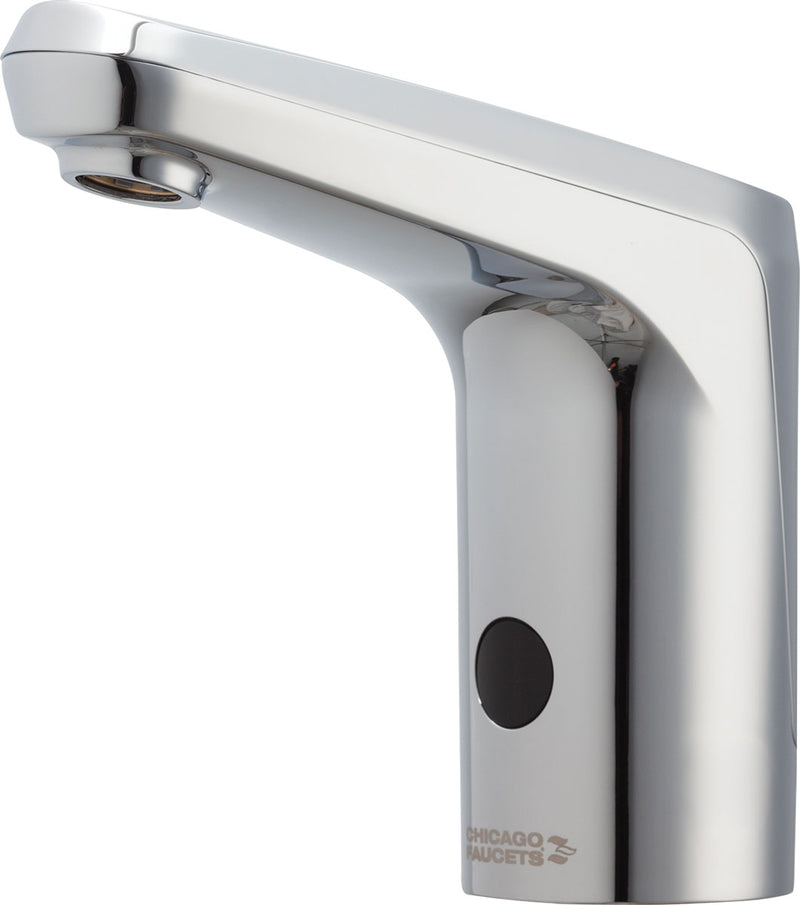

The Chicago Faucets E80-A11E-61ABCPT is a lead-free E-Tronic 80 sensor faucet powered by LTPS (Turbine). It delivers 1.0 GPM. This model is certified lead-free for potable-water installations.
Chicago Faucets No. E80-A11E-61ABCPT, E-Tronic™ 80 electronic faucet with dual-beam infrared sensor. Integral spout, chrome plated. Single-hole deck mount. 1.0 GPM (3.8 L/min) vandal-proof, pressure compensating, Econo-Flo, laminar flow. Single supply for tempered water. Powered by Long Term Power System (LTPS) - provides maintenance-free power for 15 years or more, depending on usage. Flexible supply hose included. Multiple field-adjustable modes and ranges. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST™ construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna:
- ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
- Single-hole
- Vandal Proof Pressure compensating laminar flow outlet, 1.0 GPM
- E-Tronic® 80 module with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 244.170.00.1
- Includes: 244.458.00.1T
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet uses Chicago Faucets' Long Term Power System (LTPS), a self-contained turbine that needs no battery replacement or wiring. Chicago Faucets rates it maintenance-free for 15+ Years (Maintenance-Free).
- Does it include scald protection?
- No. This model has no mixing valve -- it runs on a single supply of already-tempered water, or delivers whichever single supply it is piped to. Mix hot and cold ahead of the faucet if the application needs a controlled temperature.
- How long does the water run before it shuts off?
- The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Advanced electronic commercial faucet with touchless sensor operation
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: E80-A11E-61ABCPT
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372, WaterSense
- Lead-Free: Yes
- Power Source: LTPS (Turbine)
- Run Time (s): 10
- Connectivity: Bluetooth
- Mixing Valve: No Mixing Valve
- Spout Type: Integral
- Centers: Single-Hole
- Outlet Type: Laminar (Non-Aerating)
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 1.0
- Vandal Resistant: Yes
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| E80-A11E-61ABCPT | 611943165024 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Details
| Series | E80 | Device Type | Advanced electronic commercial faucet with touchless sensor operation |
| Lead Free | Yes | Pack Qty | 1 |
| Options | 244.170.00.1, 244.458.00.1T | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 1.0 GPM |
| Lead time days | 3 | Mount type | Deck-Mount |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | Centers | Single-Hole |
| Mixing valve | No Mixing Valve | Outlet type | Laminar (Non-Aerating) |
| Pressure compensating | Yes | Spout type | Integral |
| Connectivity | Bluetooth | Power source | LTPS (Turbine) |
| Run time s | 10 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-61 | NSF-372 |
| WaterSense | — |
Compare with similar products






| Series | E80
| E80
| E80
| E80
| E80
| E80
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Advanced electronic commercial faucet with touchless sensor operation
| Advanced electronic commercial faucet with touchless sensor operation and ASSE 1070 scald protection
| Advanced electronic commercial faucet with touchless sensor operation
| Advanced electronic commercial faucet with touchless sensor operation
| Advanced electronic commercial faucet with touchless sensor operation and ASSE 1070 scald protection
| Advanced electronic commercial faucet with touchless sensor operation
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | — | Flexible Supply Hoses
| Flexible Supply Hoses
| — | Flexible Supply Hoses
| Flexible Supply Hoses
|
| Certifications | ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372, WaterSense
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, ASSE-1070, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | 244.170.00.1, 244.458.00.1T
| 244.168.00.1, 244.458.00.1T
| 244.168.00.1, 244.458.00.1T
| 244.168.00.1, 244.458.00.1T
| 244.168.00.1, 244.458.00.1T
| 244.168.00.1, 244.458.00.1T
|
