Specifications
Description

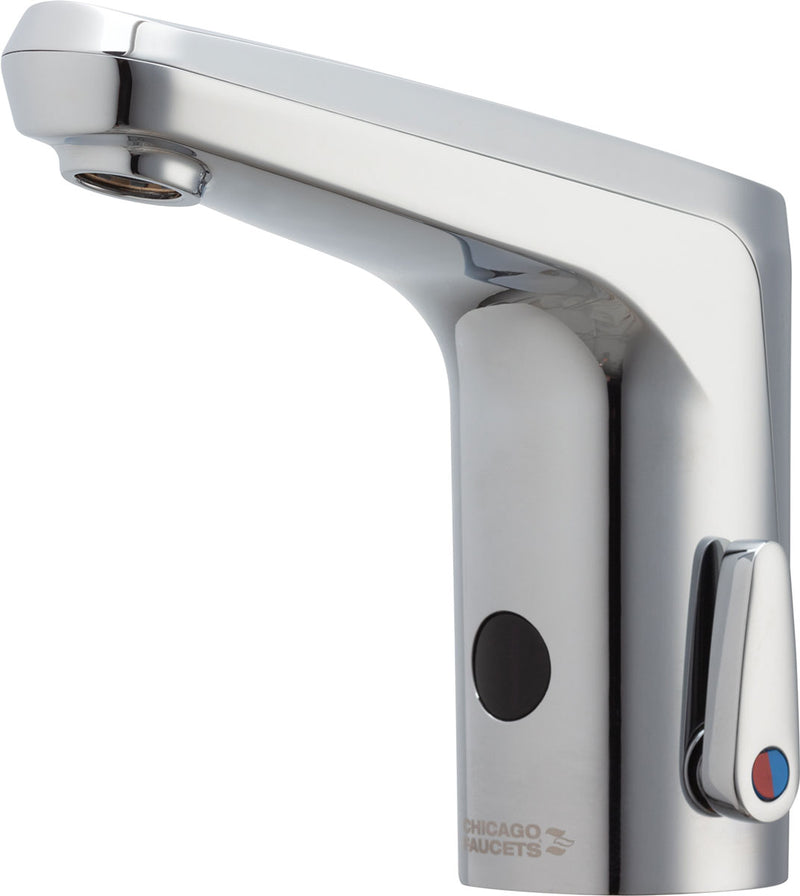

The Chicago Faucets E80-A11A-16ABCPT is a lead-free E-Tronic 80 sensor faucet powered by DC (Battery). It includes a mechanical mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.
Chicago Faucets No. E80-A11A-16ABCPT, E-Tronic® 80 faucet with dual-beam infrared sensor. Traditional-style integral spout, chrome plated. Single-hole deck mount. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo, non-aerating spray. Dual supply for hot and cold water service. 6 Volt Lithium CRP2 Battery (Included). Flexible supply hoses included. Includes optional user-adjustable temperature control. Pre-assembled with concealed internal temperature control mixer. Multiple field-adjustable modes and ranges. Built- in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).
Features
- 10 second run time with hand presence. Safety auto-timeout feature will shut the water off after 10 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second.
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna:
- ─1.7dBi, Frequency range: 2400-2500 MHz, FCC ID: 2APTX-CFC02
- Single-hole
- Vandal Proof Pressure compensating Econo-Flo™ non-aerating spray outlet, 0.5 GPM
- E-Tronic® 80 module with Bluetooth® communication
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: 243.145.AB.1
- Includes: 244.458.00.1T
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet runs on battery power (6V Lithium CRP2 Battery (Included)). No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
- Does it include scald protection?
- It has a mechanical mixing valve to blend hot and cold supply, but it is not an ASSE 1070 thermostatic valve. Where code requires certified scald protection, specify a Thermostatic Mixing Valve (ASSE 1070) model instead.
- How long does the water run before it shuts off?
- The sensor holds the water on for 10 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Advanced electronic commercial faucet with touchless sensor operation
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: E80-A11A-16ABCPT
- Certifications: ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
- Lead-Free: Yes
- Power Source: DC (Battery)
- Run Time (s): 10
- Connectivity: Bluetooth
- Mixing Valve: Mechanical Mixing Valve
- Spout Type: Traditional
- Centers: Single-Hole
- Outlet Type: Spray (Non-Aerating)
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 0.5
- Connection: Flexible Supply Hoses
- Vandal Resistant: Yes
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| E80-A11A-16ABCPT | 611943164805 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | E80 | Device Type | Advanced electronic commercial faucet with touchless sensor operation |
| Lead Free | Yes | Pack Qty | 1 |
| Options | 243.145.AB.1, 244.458.00.1T | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 0.5 GPM |
| Lead time days | 3 | Mount type | Deck-Mount |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | Centers | Single-Hole |
| Mixing valve | Mechanical Mixing Valve | Outlet type | Spray (Non-Aerating) |
| Pressure compensating | Yes | Spout type | Traditional |
| Connectivity | Bluetooth | Power source | DC (Battery) |
| Run time s | 10 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| NSF-61 | NSF-372 |
