The Chicago Faucets AEQ-P11A-23ABCPT is a lead-free EQ Series sensor faucet powered by SSPS (Turbine). It includes a thermostatic mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

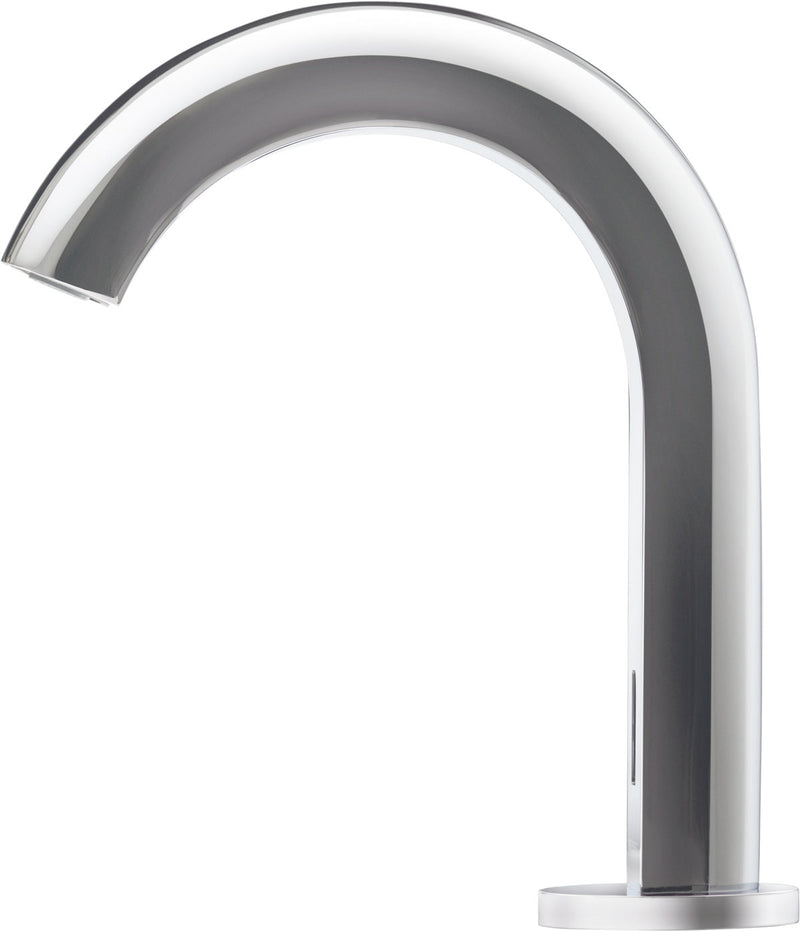

Chicago Faucets No. AEQ-P11A-23ABCPT, Alpina® Series Avisio® Lavatory Sink Faucet with hands-free infrared detection, single-hole deck mount. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Self Sustaining Power System (SSPS): water turbine generates the necessary power with flow rates 0.5 GPM (1.9 L/min) to operate the faucet for 10+ years. Includes flexible supply hose(s). Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box. On-demand IR detection for hands-free actuation and maximum water savings. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content.
Features
- Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
- 60 second run time with hand presence. Safety auto-timeout feature will shut the water off after 60 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna: +1.5 dBi, Frequency range: 2.4 GHz, FCC ID: 2APTX-CFC05
- Single-hole
- Alpina® Avisio® spout, 0.5 GPM
- Outlet for Alpina® Series touchless faucets, 0.5 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: APN-P11A-KJKABCP
- Includes: 243.637.AB.1
- Includes: 243.154.00.1
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet uses Chicago Faucets' Self Sustaining Power System (SSPS): a water-flow turbine generates its own power every time it runs, so there is no battery or wiring at all.
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 60 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
-
Type: Avisio® faucet with touch-free operation
-
Pack Quantity: 1
-
Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
-
MPN: AEQ-P11A-23ABCPT
-
Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372
-
Lead-Free: Yes
-
Power Source: SSPS (Turbine)
-
Run Time (s): 60
-
Connectivity: Bluetooth
-
Mixing Valve: Thermostatic Mixing Valve
-
Centers: Single-Hole
-
Outlet Type: Spray (Non-Aerating)
-
Pressure Compensating: Yes
-
Mount Type: Deck-Mount
-
Finish: Polished Chrome
-
Flow Rate (GPM): 0.5
-
Connection: Flexible Supply Hoses
-
Vandal Resistant: Yes
-
Lead Time (days): 5
