Specifications
Description
The Chicago Faucets AEQ-P11A-13ABCPT is a lead-free EQ Series sensor faucet powered by DC (Battery). It includes a thermostatic mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

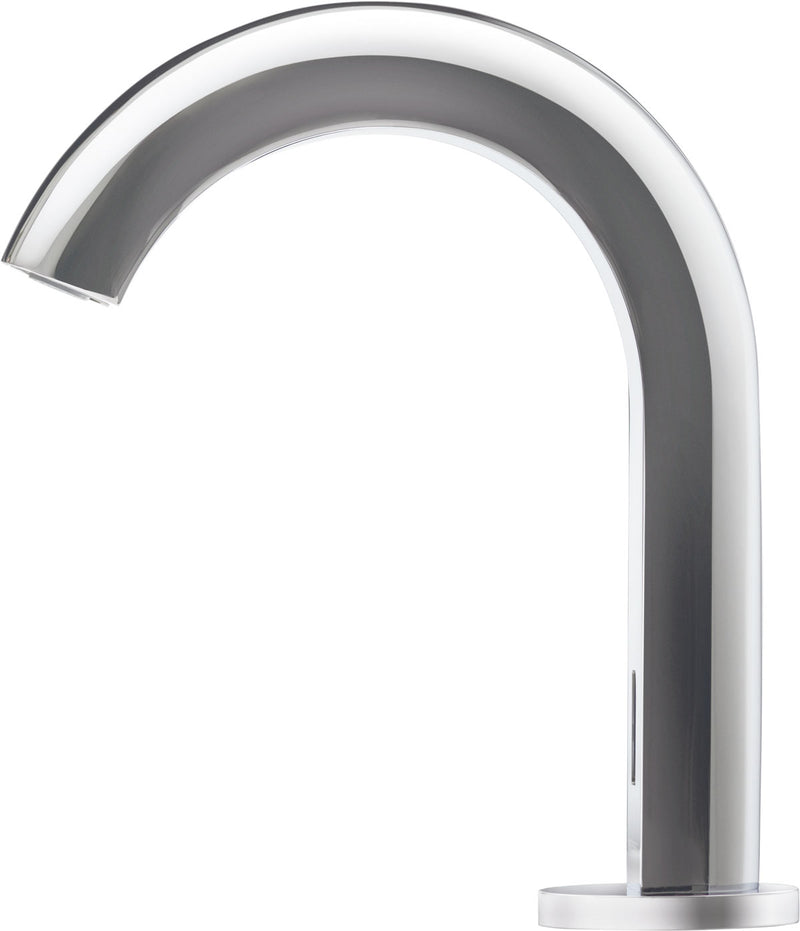

Chicago Faucets No. AEQ-P11A-13ABCPT, Alpina® Series Avisio® Lavatory Sink Faucet with hands-free infrared detection, single-hole deck mount. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Powered by 4 "AA" alkaline batteries (included) - up to 5-year battery life. Includes flexible supply hose(s). Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box. On-demand IR detection for hands-free actuation and maximum water savings. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content.
Features
- Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
- 60 second run time with hand presence. Safety auto-timeout feature will shut the water off after 60 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second
- Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
- Faucets CF Connect App.
- Internal Antenna Specifications: Peak Gain of the antenna: +1.5 dBi, Frequency range: 2.4 GHz, FCC ID: 2APTX-CFC05
- Single-hole
- Alpina® Avisio® spout, 0.5 GPM
- Outlet for Alpina® Series touchless faucets, 0.5 GPM
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- Includes: APN-P11A-KJKABCP
- Includes: 243.637.AB.1
Common Questions
- How is this faucet powered, and what is the battery life?
- This faucet runs on battery power (4x AA Alkaline Batteries (Included)). Chicago Faucets states a battery life of Up to 5 Years. No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
- Does it include scald protection?
- Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
- How long does the water run before it shuts off?
- The sensor holds the water on for 60 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
- Is this faucet ADA compliant?
- Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
- Is this faucet lead-free?
- Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.
Specifications
- Type: Avisio® faucet with touch-free operation
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
- MPN: AEQ-P11A-13ABCPT
- Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372
- Lead-Free: Yes
- Power Source: DC (Battery)
- Run Time (s): 60
- Connectivity: Bluetooth
- Mixing Valve: Thermostatic Mixing Valve
- Centers: Single-Hole
- Outlet Type: Spray (Non-Aerating)
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (GPM): 0.5
- Connection: Flexible Supply Hoses
- Vandal Resistant: Yes
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| AEQ-P11A-13ABCPT | 611943177584 | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical | Download |
Dimensions
| End Connection | Flexible Supply Hoses | — | — |
Details
| Series | AEQ | Device Type | Avisio® faucet with touch-free operation |
| Lead Free | Yes | Pack Qty | 1 |
| Options | APN-P11A-KJKABCP, 243.637.AB.1 | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 0.5 GPM |
| Lead time days | 5 | Mount type | Deck-Mount |
| Prop65 | Yes | Vandal resistant | Yes |
| Centers | Single-Hole | Mixing valve | Thermostatic Mixing Valve |
| Outlet type | Spray (Non-Aerating) | Pressure compensating | Yes |
| Connectivity | Bluetooth | Power source | DC (Battery) |
| Run time s | 60 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
| CALGreen | ASSE-1070 |
| NSF-61 | NSF-372 |
Compare with similar products






| Series | AEQ
| EQ
| EQ
| EQ
| EQ
| EQ
|
| Warranty | Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Device Type | Avisio® faucet with touch-free operation
| Touch-free faucet with plug-and-play installation
| Touch-free faucet with plug-and-play installation
| Touch-free faucet with plug-and-play installation
| Touch-free faucet with plug-and-play installation
| Touch-free faucet with plug-and-play installation
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Flexible Supply Hoses
| — | — | Flexible Supply Hoses
| Flexible Supply Hoses
| — |
| Certifications | ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-372, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, CALGreen, NSF-372, NSF-61
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | APN-P11A-KJKABCP, 243.637.AB.1
| EQ-A11A-KJKABBN, 243.145.AB.1, EQ-11KJKABNF
| EQ-A11A-KJKABCP, 243.145.AB.1, EQ-11KJKABNF
| EQ-A11A-KJKABCP, 243.145.AB.1, EQ-12KJKABNF
| EQ-A11A-KJKABCP, 243.145.AB.1, EQ-13KJKABNF
| EQ-A11A-KJKABBN, 243.145.AB.1, EQ-003JKNF, EQ-31KJKABNF
|
