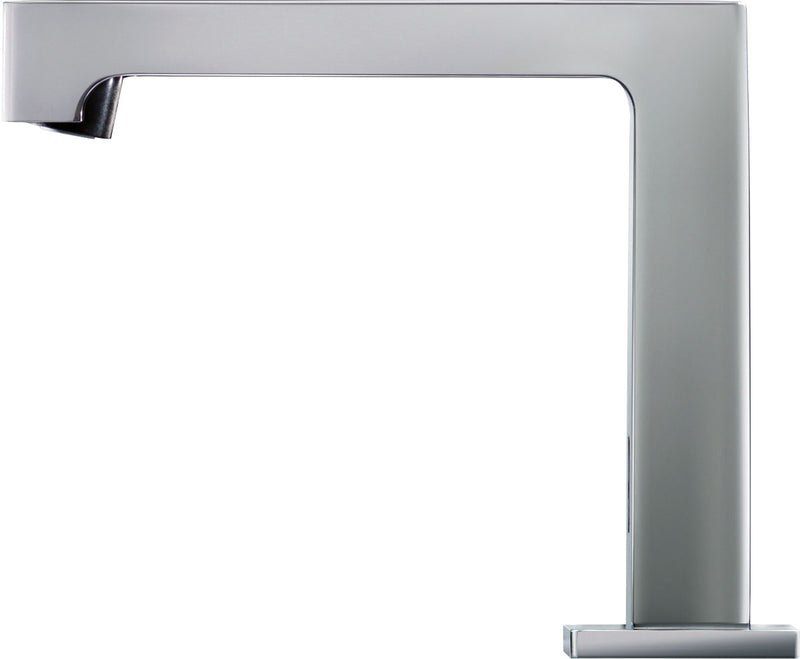

Chicago Faucets AEQ-B11A-13ABCPT Lead-Free EQ Series Sensor Faucet

SKU: AEQ-B11A-13ABCPT
Price:
Sale price$991.93 Regular price$1,371.70
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $991.93

Free shipping over $200

Key Features

Type Alento faucet with touch-free operation
Power Source DC (Battery)
Mixing Thermostatic Mixing Valve
Spec Sheet Download
See all product information

Similar products

Chicago Faucets LWM1-B13-E Laboratory Mixing Faucet, Deck-Mount
Chicago Faucets 6V Lithium Battery Replacement 242.560.00.1
Chicago Faucets Chicago Faucets 245.998.00.1 Repair Part
Sale price$15.32 Regular price$21.18
Chicago Faucets Control Box Assembly EQ Series EQ-12KJKABNF
Chicago Faucets Chicago Faucets EQ-12KJKABNF Repair Part
Sale price$293.46 Regular price$405.81
Compare Products

Specifications

Description

The Chicago Faucets AEQ-B11A-13ABCPT is a lead-free EQ Series sensor faucet powered by DC (Battery). It includes a thermostatic mixing valve. It delivers 0.5 GPM. This model is certified lead-free for potable-water installations.

Chicago Faucets No. AEQ-B11A-13ABCPT, Alpina® Series Alento Lavatory Sink Faucet with hands-free infrared detection, single-hole deck mount. Chrome plated. 0.5 GPM (1.9 L/min) vandal-proof, pressure compensating, Econo-Flo non-aerating spray outlet. Dual supply for hot and cold water service. Powered by 4 "AA" alkaline batteries (included) - up to 5-year battery life. Includes flexible supply hose(s). Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box. On-demand IR detection for hands-free actuation and maximum water savings. Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago Faucets CF Connect App. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content.

Features

  • Includes built-in ASSE 1070 thermostatic mixing valve concealed within control box
  • 60 second run time with hand presence. Safety auto-timeout feature will shut the water off after 60 seconds. Reactivate faucet by removing hands from the sensor for at least 1 second
  • Built-in Bluetooth® technology allows for easy adjustments and mode changes using a smartphone or tablet with the Chicago
  • Faucets CF Connect App.
  • Internal Antenna Specifications: Peak Gain of the antenna: +1.5 dBi, Frequency range: 2.4 GHz, FCC ID: 2APTX-CFC05
  • Single-hole
  • Alpina® Alento spout, 0.5 GPM
  • Outlet for Alpina® Series touchless faucets, 0.5 GPM
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • Includes: APN-B11A-KJKABCP
  • Includes: 243.637.AB.1

Common Questions

How is this faucet powered, and what is the battery life?
This faucet runs on battery power (4x AA Alkaline Batteries (Included)). Chicago Faucets states a battery life of Up to 5 Years. No electrical wiring or transformer is needed -- it installs anywhere a manual faucet does.
Does it include scald protection?
Yes. It has a built-in ASSE 1070 thermostatic mixing valve, so the delivered water temperature is limited even if the hot supply runs too hot -- the code-required protection for K-12, healthcare and similar occupancies.
How long does the water run before it shuts off?
The sensor holds the water on for 60 seconds of continuous hand presence, then the safety auto-timeout closes it automatically. Removing and re-presenting your hands restarts detection.
Is this faucet ADA compliant?
Yes. It meets ADA / ANSI-ICC A117.1 requirements -- hands-free sensor operation means no grasping, pinching or twisting is required to turn the water on.
Is this faucet lead-free?
Yes. It is ECAST® cast-brass construction with total lead content at or below 0.25% by weighted average, meeting NSF/ANSI/CAN 372 low-lead requirements for potable water.

Specifications

  • Type: Alento faucet with touch-free operation
  • Pack Quantity: 1
  • Warranty: Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
  • MPN: AEQ-B11A-13ABCPT
  • Certifications: ASME A112.18.1/CSA B125.1, ADA, CALGreen, ASSE-1070, NSF-61, NSF-372
  • Lead-Free: Yes
  • Power Source: DC (Battery)
  • Run Time (s): 60
  • Connectivity: Bluetooth
  • Mixing Valve: Thermostatic Mixing Valve
  • Centers: Single-Hole
  • Outlet Type: Spray (Non-Aerating)
  • Pressure Compensating: Yes
  • Mount Type: Deck-Mount
  • Finish: Polished Chrome
  • Flow Rate (GPM): 0.5
  • Connection: Flexible Supply Hoses
  • Vandal Resistant: Yes
  • Lead Time (days): 5

Product Information

SKUUPCWarrantySpec Sheet
AEQ-B11A-13ABCPT 611943177669 Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical Download

Dimensions

End Connection Flexible Supply Hoses ——

Details

Series AEQ Device Type Alento faucet with touch-free operation
Lead Free Yes Pack Qty 1
Options APN-B11A-KJKABCP, 243.637.AB.1 Baa USA
Coating Polished Chrome Flow rate gpm 0.5 GPM
Lead time days 5 Mount type Deck-Mount
Prop65 Yes Vandal resistant Yes
Centers Single-Hole Mixing valve Thermostatic Mixing Valve
Outlet type Spray (Non-Aerating) Pressure compensating Yes
Connectivity Bluetooth Power source DC (Battery)
Run time s 60 ——

Certifications & Standards

ASME A112.18.1/CSA B125.1 ADA
CALGreen ASSE-1070
NSF-61 NSF-372
