Chicago Faucets 8451-TE64VPABCP Lead-Free Single-handle emergency eyewash with faucet, ASSE 1071 valve, gauge, and locking ball valves

SKU: 8451-TE64VPABCP
Price:
Sale price$1,898.34 Regular price$2,625.13
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $1,898.34

Free shipping over $200

Key Features

ASSE Listing ASSE 1071
End Connection Compression
Max Temp °F 140.0 °F
Spec Sheet Download
See all product information

Similar products

3"PVC Sch. 80 Ball Valve - True Union Solvent
1-1/2 PVC 80 True Union Ball Valve
1" PVC SCH 80 Ball Valve
Compare Products

Specifications

Description

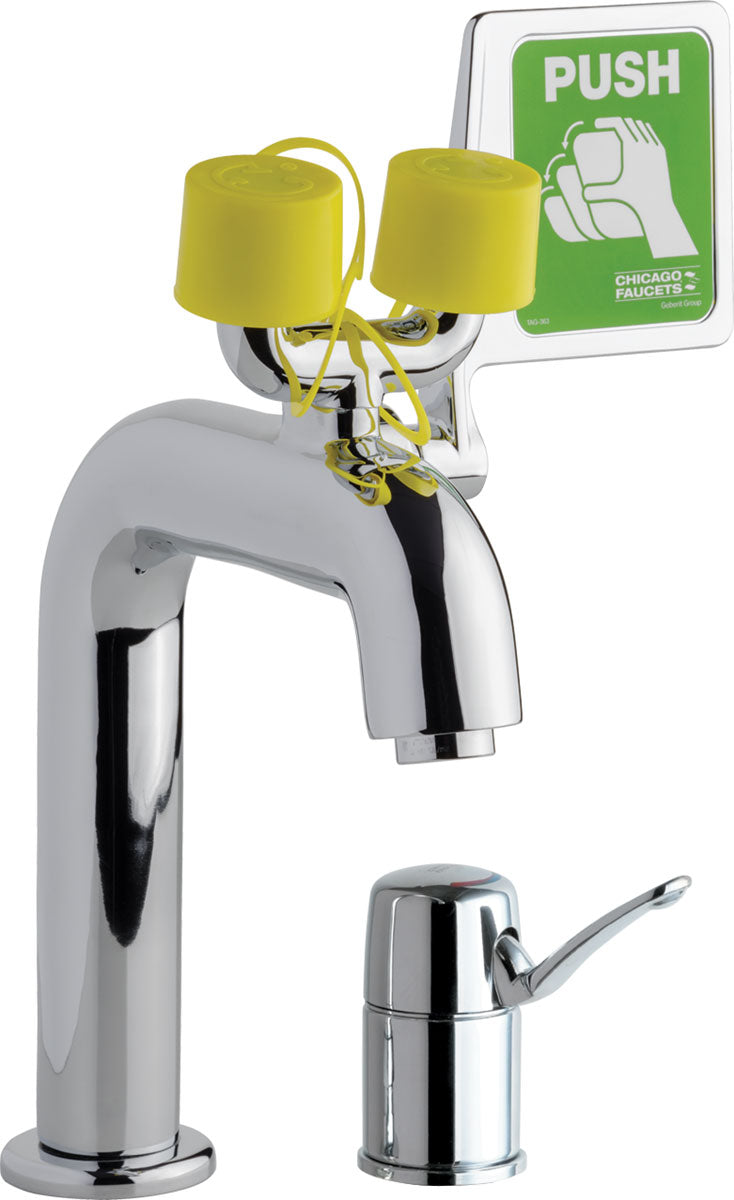

The Chicago Faucets 8451-TE64VPABCP is a deck-mount faucet + eyewash combo, activated by push paddle. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets 8451-TE64VPABCP, Eyewash Faucet with push paddle handle, deck-mounted. 3/8" Compression inlet. 3/8" Compression x 1/2 NPSM Male Adapter. Certified to the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment, ASME A112.18.1/CSA B125.1 Plumbing Supply Fittings, NSF/ANSI 372 Drinking Water Systems Components-Lead Content, and ASSE 1071 Temperature Actuated Mixing Valves for Plumbed Emergency Equipment.

Features

  • Eyewash outlet: 3.3 GPM at 50 PSI
  • Vandal Proof Pressure compensating non-aerating laminar outlet,
  • 1.0 GPM
  • 2-3/4" Lever handle
  • Ceramic operating cartridge with volume control and hot water limit stop
  • ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
  • Complies with the requirements of the Buy American Act of 1933.
  • CFNow! Item Ships in 3 Days
  • Includes: E64VPJKABCP
  • Includes: 2200-225KJKCP
  • Includes: 2300-XJKABNF

Common Questions

Does this meet the ANSI Z358.1 requirement for emergency eyewash equipment?
Yes -- this fixture is certified to ANSI/ISEA Z358.1, the standard that sets tepid-water temperature, minimum flow and the 15-minute flush duration for emergency eyewash and shower equipment.
How is this activated in an emergency?
Push Paddle -- per Chicago's own description of this fixture.
Does this have a built-in mixing valve?
Yes -- it has an integral ASSE 1071 listed valve, the standard built specifically for emergency fixtures.
What is the flow rate?
3.3 gpm.

Specifications

  • Type: Single-handle emergency eyewash with faucet, ASSE 1071 valve, gauge, and locking ball valves
  • Inlet Size: 3/8"
  • Connection: Compression
  • Pack Quantity: 1
  • Warranty: 1-year finish; 1-year material
  • MPN: 8451-TE64VPABCP
  • Temperature: 40°F to 140°F
  • Certifications: ADA, ANSI/ISEA Z358.1, ASSE-1071, ASME A112.18.1/CSA B125.1, NSF-372, WaterSense
  • Lead-Free: Yes
  • Mount Type: Deck-Mount
  • Finish: Polished Chrome
  • Flow Rate (gpm): 3.3
  • ASSE Listing (Integral Mixing Valve): ASSE 1071
  • Max Operating Pressure (PSI): 125
  • Quick Ship: Yes
  • Lead Time (days): 3

Product Information

SKUUPCWarrantySpec SheetInstall Sheet
8451-TE64VPABCP 611943158651 1-year finish; 1-year material DownloadDownload

Dimensions

Inlet Size 3/8" End Connection Compression

Details

Series 8451 Device Type Single-handle emergency eyewash with faucet, ASSE 1071 valve, gauge, and locking ball valves
Lead Free Yes Max Temp °F 140.0 °F
Pack Qty 1 Options E64VPJKABCP, 2200-225KJKCP, 2300-XJKABNF
Min Temp °F 40.0 °F ASSE Listing ASSE 1071
Baa USA Coating Polished Chrome
Flow rate gpm 3.3 GPM Lead time days 3
Mount type Deck-Mount Operating pressure max psi 125.0 PSI
Prop65 Yes Quick ship Yes

Certifications & Standards

ADA ANSI/ISEA Z358.1
ASSE-1071 ASME A112.18.1/CSA B125.1
NSF-372 WaterSense

Compare with similar products

ASSE Listing
ASSE 1071
ASSE 1070
None
ASSE 1070
None
ASSE 1070
Series
8451
8453
8453
8453
8453
8453
Warranty
1-year finish; 1-year material
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
Spec Sheet
Install Sheet
Device Type
Single-handle emergency eyewash with faucet, ASSE 1071 valve, gauge, and locking ball valves
Touchless emergency eyewash with faucet
Touchless emergency eyewash with faucet
Touchless emergency eyewash with faucet
Touchless emergency eyewash with faucet
Touchless emergency eyewash with faucet
Lead Free
Yes
Yes
Yes
Yes
Yes
Yes
Max Temp °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
140.0 °F
Certifications
ADA, ANSI/ISEA Z358.1, ASSE-1071, ASME A112.18.1/CSA B125.1, NSF-372, WaterSense
ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, ASSE-1070, NSF-372
ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, NSF-372
ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, ASSE-1070, NSF-372
ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, NSF-372
ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, ASSE-1070, NSF-372
Pack Qty
1
1
1
1
1
1
Options
E64VPJKABCP, 2200-225KJKCP, 2300-XJKABNF
E12VPJKABCP, 243.868.00.1
E12VPJKABCP, 243.868.00.1
E12VPJKABCP
E12VPJKABCP
E12VPJKABCP
Min Temp °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
40.0 °F
