Specifications
Description

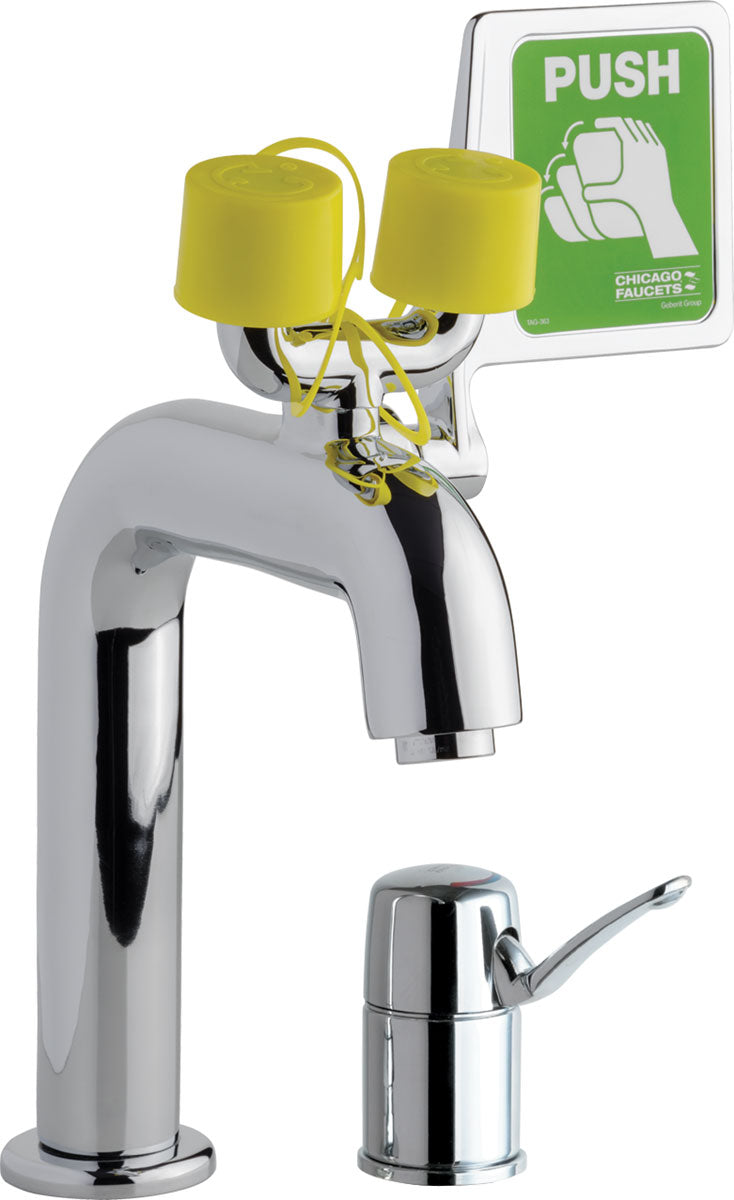

The Chicago Faucets 8451-ABCP is a deck-mount faucet + eyewash combo, activated by push paddle. It is rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets 8451-ABCP, Eyewash Faucet with push paddle handle, deck-mounted. 3/8" Compression inlet. Certified to the ANSI/ISEA Z358.1 Standard for Emergency Eyewash and Shower Equipment, ASME A112.18.1/CSA B125.1 Plumbing Supply Fittings, and NSF/ANSI 372 Drinking Water Systems Components-Lead Content.
Features
- Eyewash outlet: 3.3 GPM at 50 PSI
- Vandal Proof Pressure compensating Softflo® aerator, 2.2 GPM
- 2-3/4" Lever handle
- Ceramic operating cartridge with volume control and hot water limit stop
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
- Includes: E12VPJKABCP
- Includes: 2200-225KJKCP
- Includes: 2300-XJKABNF
Common Questions
- Does this meet the ANSI Z358.1 requirement for emergency eyewash equipment?
- Yes -- this fixture is certified to ANSI/ISEA Z358.1, the standard that sets tepid-water temperature, minimum flow and the 15-minute flush duration for emergency eyewash and shower equipment.
- How is this activated in an emergency?
- Push Paddle -- per Chicago's own description of this fixture.
- What is the flow rate?
- 3.3 gpm.
Specifications
- Type: Single-handle emergency eyewash with faucet
- Inlet Size: 3/8"
- Connection: Compression
- Pack Quantity: 1
- Warranty: 1-year finish; 1-year material
- MPN: 8451-ABCP
- Temperature: 40°F to 140°F
- Certifications: ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, NSF-372
- Lead-Free: Yes
- Mount Type: Deck-Mount
- Finish: Polished Chrome
- Flow Rate (gpm): 3.3
- Max Operating Pressure (PSI): 125
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
Dimensions
| Inlet Size | 3/8" | End Connection | Compression |
Details
| Series | 8451 | Device Type | Single-handle emergency eyewash with faucet |
| Lead Free | Yes | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Options | E12VPJKABCP, 2200-225KJKCP, 2300-XJKABNF |
| Min Temp °F | 40.0 °F | Baa | USA |
| Coating | Polished Chrome | Flow rate gpm | 3.3 GPM |
| Lead time days | 3 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Quick ship | Yes | — | — |
Certifications & Standards
| ADA | ANSI/ISEA Z358.1 |
| ASME A112.18.1/CSA B125.1 | NSF-372 |
Compare with similar products






| ASSE Listing | — | ASSE 1070
| None
| ASSE 1070
| None
| ASSE 1070
|
| Series | 8451
| 8453
| 8453
| 8453
| 8453
| 8453
|
| Warranty | 1-year finish; 1-year material
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
| Lifetime faucet; 1-year finish; 3-year electronics and solenoid; 5-year mechanical
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Single-handle emergency eyewash with faucet
| Touchless emergency eyewash with faucet
| Touchless emergency eyewash with faucet
| Touchless emergency eyewash with faucet
| Touchless emergency eyewash with faucet
| Touchless emergency eyewash with faucet
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, NSF-372
| ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, ASSE-1070, NSF-372
| ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, NSF-372
| ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, ASSE-1070, NSF-372
| ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, NSF-372
| ADA, ANSI/ISEA Z358.1, ASME A112.18.1/CSA B125.1, ASSE-1070, NSF-372
|
| Pack Qty | 1
| 1
| 1
| 1
| 1
| 1
|
| Options | E12VPJKABCP, 2200-225KJKCP, 2300-XJKABNF
| E12VPJKABCP, 243.868.00.1
| E12VPJKABCP, 243.868.00.1
| E12VPJKABCP
| E12VPJKABCP
| E12VPJKABCP
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
