Chicago Faucets 8405-NF Emergency eye/face wash and drench shower fitting - barrier-free, MNPT

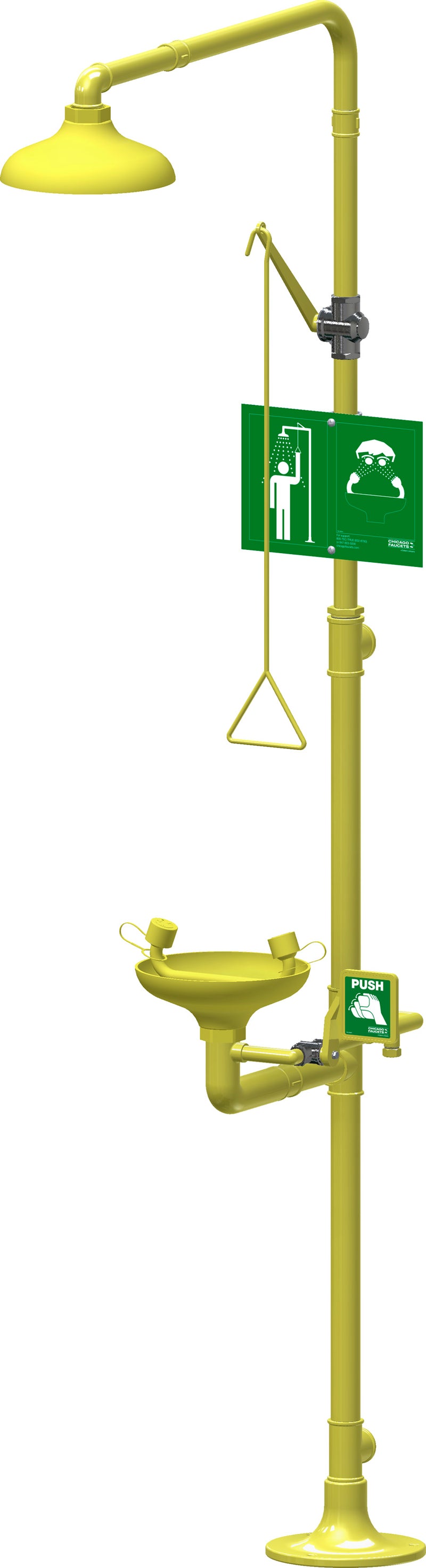

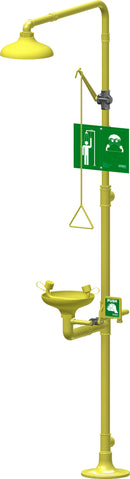

The Chicago Faucets 8405-NF is a floor combination eye-face wash + drench shower, activated by pull rod.

Chicago Faucets No. 8405-NF, Barrier-Free Eye/Face Wash and Safety Drench Shower. 1-1/4" NPT female thread inlet, 1-1/4" NPT female thread outlet. Anti-corrosive polyamide 11 plastic coating in high-visibility yellow color. Floor-mounted Eyewash assembly in ABS plastic, Eyewash bowl in ABS plastic, two high-flow aerated water sprays at low pressure with automatic opening anti-dust cover, brass fittings with galvanized pipe construction, push handle for activation. Shower head in ABS plastic, pull rod for activation. High-visibility photoluminescent safety sign with green background and white text for easy identification. Maintenance card for recording periodic testing. Certified to the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment.

Features

• Eyewash bowl, assembly, and shower head in ABS plastic
• Brass fittings with galvanized pipe construction, push handle for eyewash activation, pull handle for shower activation
• Two high-flow aerated eyewash sprays at low pressure with automatic opening anti-dust cover
• High-visibility photoluminescent safety sign with green background and white text for easy identification
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Does this meet the ANSI Z358.1 requirement for emergency eyewash equipment?

Yes -- this fixture is certified to ANSI/ISEA Z358.1, the standard that sets tepid-water temperature, minimum flow and the 15-minute flush duration for emergency eyewash and shower equipment.

How is this activated in an emergency?

Pull Rod -- per Chicago's own description of this fixture.

Specifications

• Type: Emergency eye/face wash and drench shower fitting - barrier-free
• Inlet Size: 1-1/4"
• Connection: MNPT
• Pack Quantity: 1
• Warranty: 1-year finish; 1-year material
• MPN: 8405-NF
• Certifications: ADA, ANSI/ISEA Z358.1
• Mount Type: Floor
• Finish: Yellow
• Quick Ship: Yes
• Lead Time (days): 3
