The Chicago Faucets 809-CP is a bed pan cleaner with loose key shutoff with NPT connections. It is rated to 40°F to 140°F.

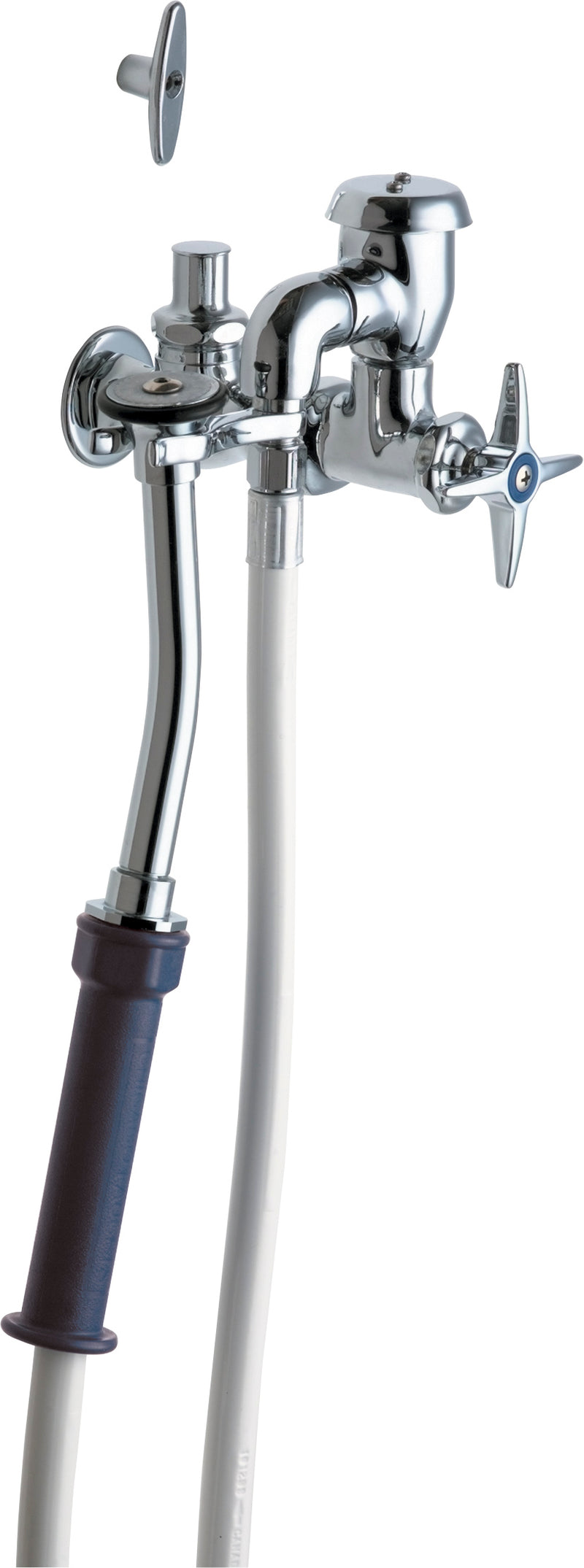

Chicago Faucets No. 809-CP, Bed Pan Cleaner with single, loose key handle, wall-mounted, chrome plated. Full-flow, 25-degree, male rose spray. 3" metal, cross handle with eight-point, tapered broach and secured, blue index button. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 1/2" NPT female thread inlet. Includes atmospheric vacuum breaker. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1.
Features
- Handle includes red, blue, and white index
- 53" White vinyl hose and handle assembly
- Rubber-bound 25-degree male rose spray, 1.5 GPM
- Vandal Proof 3" Cross handle
- Slow compression operating cartridge, left-hand
- Vacuum breaker assembly
- Complies with the requirements of the Buy American Act of 1933.
- CFNow! Item Ships in 3 Days
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a slow compression cartridge, a spray (non-aerating) outlet.
Specifications
- Type: Bed pan cleaner with loose key shutoff
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 809-CP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1
- Handle Index: Hot and Cold
- Cartridge Type: Slow Compression
- Outlet Type: Spray (Non-Aerating)
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Hose Length (in): 53.0
- Quick Ship: Yes
- Lead Time (days): 3
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 809-CP | 611943165390 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 809 | Device Type | Bed pan cleaner with loose key shutoff |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Flow rate gpm | 1.5 GPM | Handle style | Cross |
| Hose length in | 53.0 | Lead time days | 3 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Quick ship | Yes |
| Vandal resistant | Yes | Cartridge type | Slow Compression |
| Handle index | Hot and Cold | Outlet type | Spray (Non-Aerating) |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | — |
Compare with similar products
| Series | 809
| 442
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||
| Device Type | Bed pan cleaner with loose key shutoff
| Angle stop
|
| Size Nominal | 1/2"
| 1/2"
|
| End Connection | NPT
| NPT
|
| Max Temp °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, NSF-61
|
| Pack Qty | 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F |
