Description

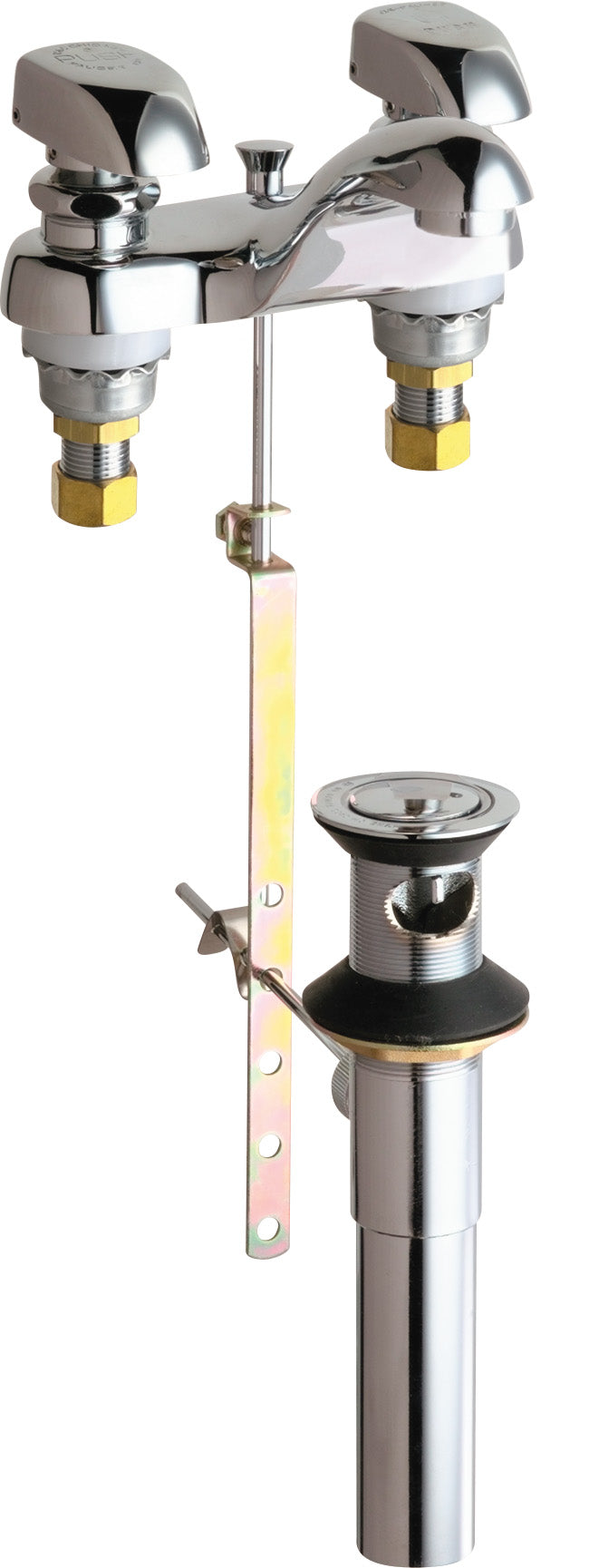

The Chicago Faucets 797-335ABCP is a lead-free deck-mounted manual faucet, 4" centers, with pop-up drain with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.
Chicago Faucets No. 797-335ABCP, Sink Faucet for hot and cold water, metering, deck-mounted with 4" fixed centers, chrome plated. Includes pop-up waste. Integral, cast brass spout, 4" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 1-1/2" metal, vandal-proof, push-tilt handles with twenty-point broach, indexed "C" and "H". NAIAD rebuildable auto-timed metering cartridge, adjustable run time from 2 to 15 seconds, opens with push, 0.20 max gallon/cycle. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.
Features
- Includes 2-1/8" diameter pop-up drain
- 4" fixed centers
- Pressure compensating Softflo® aerator, 2.2 GPM
- Naiad metering cartridge with adjustable cycle time closure
- ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is this safe for drinking water?
- Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with a metering cartridge, an aerator outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 4".
Specifications
- Type: Deck-mounted manual faucet, 4" centers, with pop-up drain
- Size: 1/2"
- Connection: NPSM
- Body Material: Brass
- Operation: Metering (Self-Closing)
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 797-335ABCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, NSF-61
- Lead-Free: Yes
- Centers: 4"
- Spout Reach (in): 4.0
- Handle Index: Cold
- Cartridge Type: Metering
- Outlet Type: Aerator
- Pressure Compensating: Yes
- Mount Type: Deck-Mount
- Handle Style: Push Button
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.2
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 797-335ABCP | 611943574024 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPSM |
Details
| Series | 797 | Device Type | Deck-mounted manual faucet, 4" centers, with pop-up drain |
| Lead Free | Yes | Body Material | Brass |
| Operation | Metering (Self-Closing) | Max Temp °F | 140.0 °F |
| Pack Qty | 1 | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Flow rate gpm | 2.2 GPM | Handle style | Push Button |
| Lead time days | 5 | Mount type | Deck-Mount |
| Operating pressure max psi | 125.0 PSI | Prop65 | Yes |
| Vandal resistant | Yes | Cartridge type | Metering |
| Centers | 4" | Handle index | Cold |
| Outlet type | Aerator | Pressure compensating | Yes |
| Spout reach in | 4.0 | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | NSF-61 |
Compare with similar products
| Series | 797
| 802
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||
| Device Type | Deck-mounted manual faucet, 4" centers, with pop-up drain
| Deck-mounted metering faucet with 4" centers
|
| Size Nominal | 1/2"
| 1/2"
|
| Lead Free | Yes | Yes |
| End Connection | NPSM
| NPSM
|
| Body Material | Brass
| Brass
|
| Operation | Metering (Self-Closing)
| Metering (Self-Closing)
|
| Max Temp °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, NSF-61
| ASME A112.18.1/CSA B125.1, ADA, NSF-61, NSF-372
|
| Pack Qty | 1
| 1
|
| Min Temp °F | 40.0 °F | 40.0 °F |
