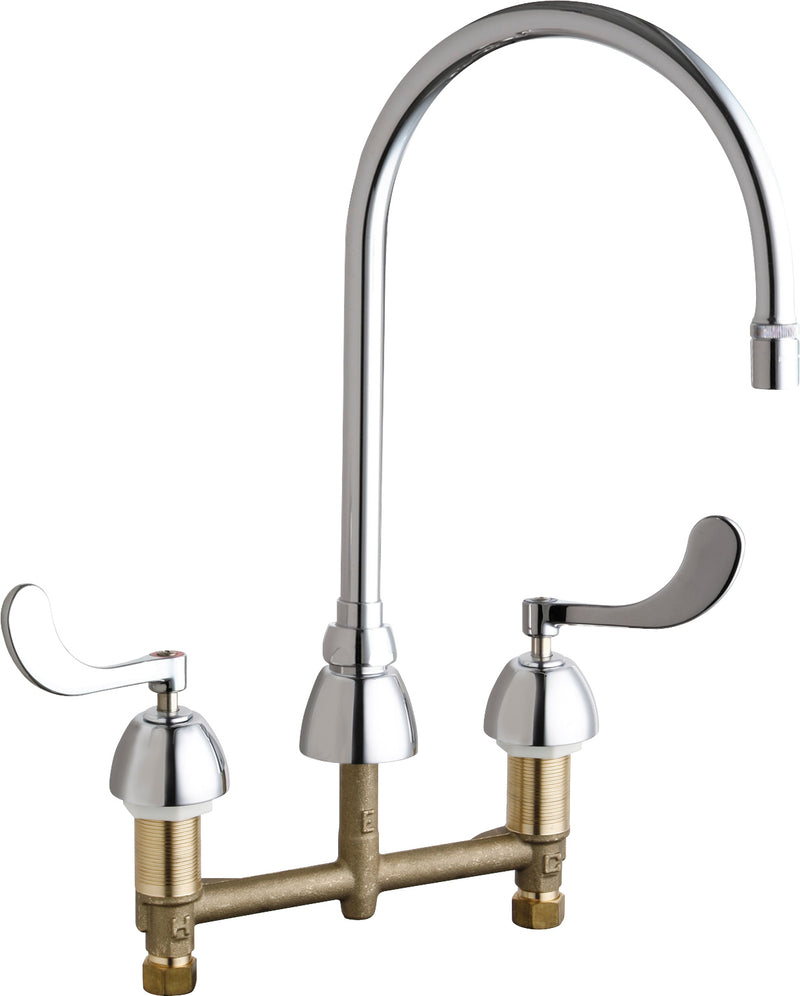

Chicago Faucets 786-GN8AE36ABCP Lead-Free Deck-mounted manual faucet with 8" centers

The Chicago Faucets 786-GN8AE36ABCP is a lead-free deck-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 786-GN8AE36ABCP, Sink Faucet for hot and cold water, concealed deck-mount with 8" fixed centers, chrome plated. Rigid/swing gooseneck spout, 8" center-to-center. 1.5 GPM (5.7 L/min) pressure compensating, non-aerating, laminar outlet. 4" metal, vandal-proof, wristblade handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. ECAST® construction with less than 0.25% lead content by weighted average. CALGreen compliant. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, Certified to NSF/ANSI 61, Section 9, California Health and Safety Code 116875 (AB1953-2006), Vermont Bill S.152, NSF/ANSI 372 Low Lead Content, and California Green Building Standards Code (CALGreen).

Features

• Handles include color-coded index
• 8" fixed centers
• 8" Rigid/swing gooseneck spout
• Pressure compensating laminar flow non-aerating outlet, 1.5 GPM
• Vandal Proof 4" Wristblade handle (pair)
• Quaturn® compression operating cartridge, left-hand
• Quaturn® compression operating cartridge, right-hand
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• CFNow! Item Ships in 3 Days

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Does it meet water-conservation codes?

Yes, it is certified to WaterSense and CALGreen.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with a gooseneck spout, 2 handles, a quaturn compression cartridge, a laminar (non-aerating) outlet.

Specifications

• Type: Deck-mounted manual faucet with 8" centers
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 786-GN8AE36ABCP
• Temperature: 40°F to 140°F
• Certifications: ADA, ASME A112.18.1/CSA B125.1, CALGreen, NSF-372, NSF-61, WaterSense
• Lead-Free: Yes
• Centers: 8"
• Body Style: Concealed
• Spout Type: Gooseneck
• Spout Motion: Rigid/Swing
• Spout Reach (in): 8.0
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Quaturn Compression
• Outlet Type: Laminar (Non-Aerating)
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Handle Style: Wristblade
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Quick Ship: Yes
• Lead Time (days): 3
