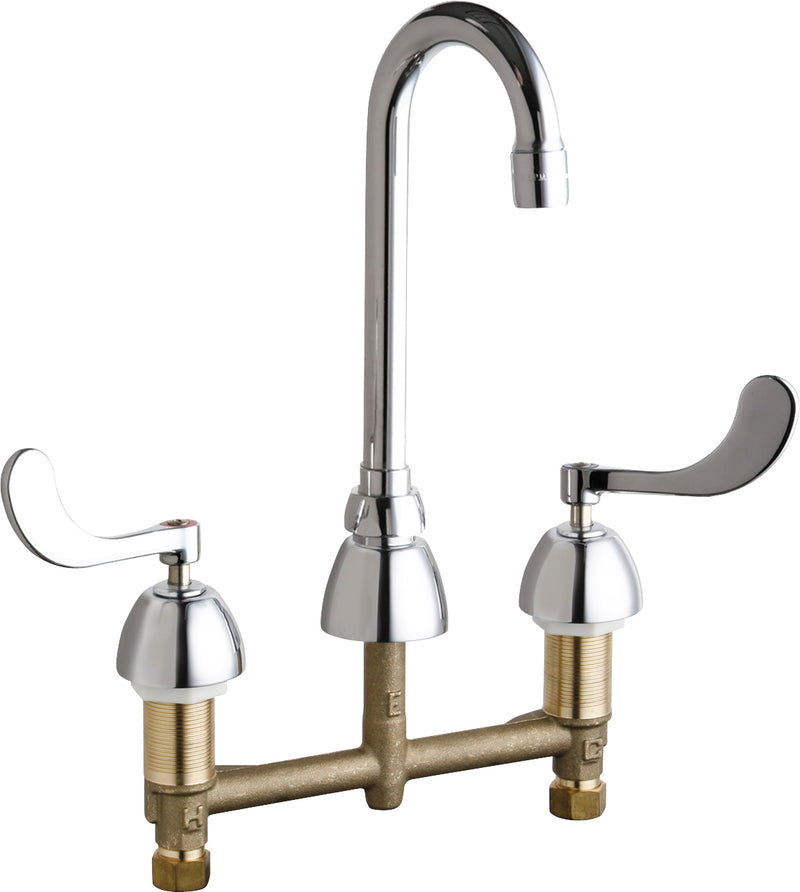

Chicago Faucets 786-GN1AE3XKAB Lead-Free Deck-mounted manual faucet with 8" centers

The Chicago Faucets 786-GN1AE3XKAB is a lead-free deck-mounted manual faucet with 8" centers with NPSM connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 786-GN1AE3XKAB, Sink Faucet for hot and cold water, concealed deck-mount with 8" fixed centers, chrome plated. Rigid/swing gooseneck spout, 3-1/2" center-to-center. 2.2 GPM (8.3 L/min) pressure compensating Softflo® aerator. 4" metal, vandal- proof, wristblade handles with sixteen-point, tapered broach and secured blue and red index buttons. Ceramic quarter-turn cartridge, features square, tapered stem. 1/2" NPSM supply inlets and coupling nut for 3/8" or 1/2" flexible riser. Mounting hardware included. ECAST® construction with less than 0.25% lead content by weighted average. This product meets ADA ANSI/ICC A117.1 requirements and is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and Certified to NSF/ANSI 61, Section 9.

Features

• Handles include color-coded index
• 8" fixed centers
• 3-1/2" Rigid/swing gooseneck spout
• Pressure compensating Softflo® aerator, 2.2 GPM
• Vandal Proof 4" Wristblade handle (pair)
• Ceramic 1/4-turn operating cartridge, left-hand
• Ceramic 1/4-turn operating cartridge, right-hand
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• CFNow! Item Ships in 3 Days

Common Questions

Is this safe for drinking water?

Yes. It is certified lead-free (NSF/ANSI 372) for potable-water installations.

Is this ADA compliant?

Yes, this model meets ADA / ANSI-ICC A117.1 accessibility requirements.

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with a gooseneck spout, 2 handles, a ceramic 1/4-turn cartridge, an aerator outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is 8".

Specifications

• Type: Deck-mounted manual faucet with 8" centers
• Size: 1/2"
• Connection: NPSM
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 786-GN1AE3XKAB
• Temperature: 40°F to 140°F
• Certifications: ADA, ASME A112.18.1/CSA B125.1, NSF-61
• Lead-Free: Yes
• Centers: 8"
• Body Style: Concealed
• Spout Type: Gooseneck
• Spout Motion: Rigid/Swing
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Ceramic 1/4-Turn
• Outlet Type: Aerator
• Pressure Compensating: Yes
• Mount Type: Deck-Mount
• Handle Style: Wristblade
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 2.2
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Quick Ship: Yes
• Lead Time (days): 3
