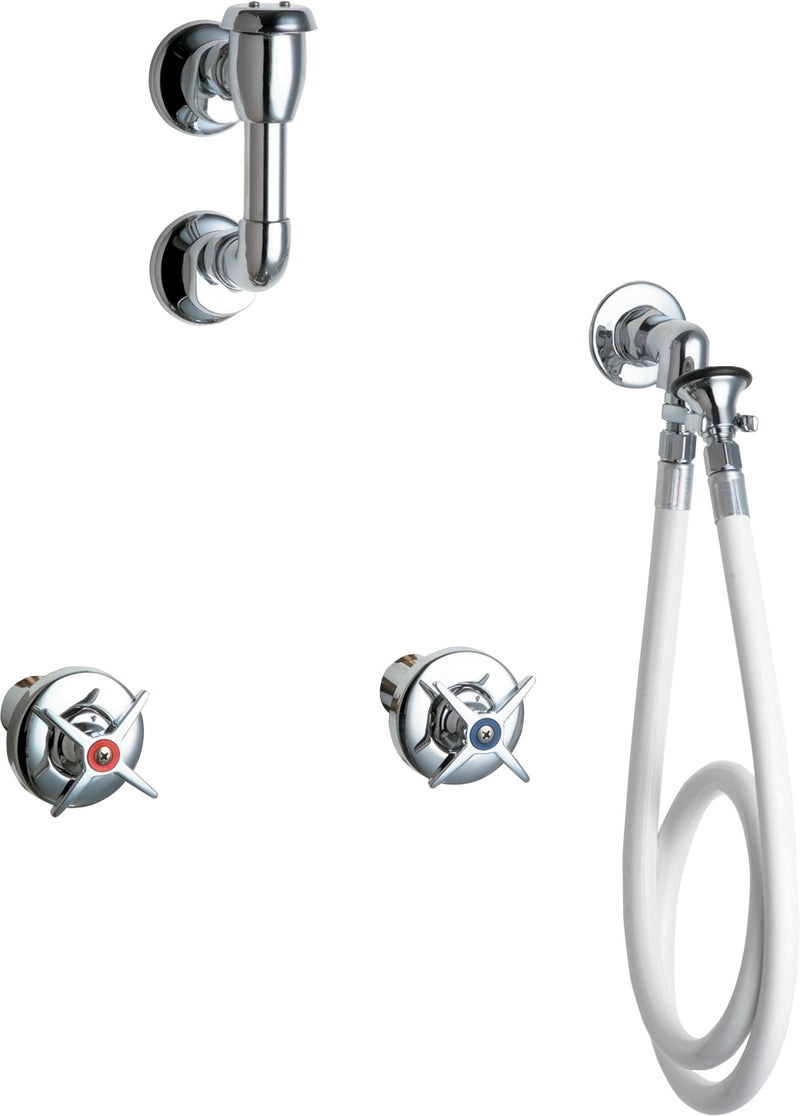

Chicago Faucets 778-VBGCP Bed pan cleaner, NPT

The Chicago Faucets 778-VBGCP is a bed pan cleaner with NPT connections. It is rated to 40°F to 140°F.

Chicago Faucets No. 778-VBGCP, Bed Pan Cleaner, two-handle, wall-mounted, chrome plated. Full-flow male rose spray. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. Includes elevated vacuum breaker assembly. 1/2" NPT female thread union inlets. 48" white vinyl hose. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1001.

Features

• Handles include color-coded index
• 8" fixed centers
• 48" White vinyl hose assembly
• Male rose spray for use with bed pan cleaner, 1.5 GPM
• Vandal Proof 3" Cross handle (pair)
• Slow compression operating cartridge, left-hand
• Elevated vacuum breaker assembly
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

Is it vandal-resistant?

Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.

What does it include?

It ships with 2 handles, a slow compression cartridge, a spray (non-aerating) outlet.

Will this fit my existing holes?

Match the mounting centers first: this model is 8".

Specifications

• Type: Bed pan cleaner
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 778-VBGCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
• Centers: 8"
• Number of Handles: 2
• Handle Index: Hot and Cold
• Cartridge Type: Slow Compression
• Outlet Type: Spray (Non-Aerating)
• Mount Type: Wall-Mount
• Handle Style: Cross
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Backflow Device: Elevated Vacuum Breaker
• Hose Length (in): 48.0
• Lead Time (days): 5
