Description

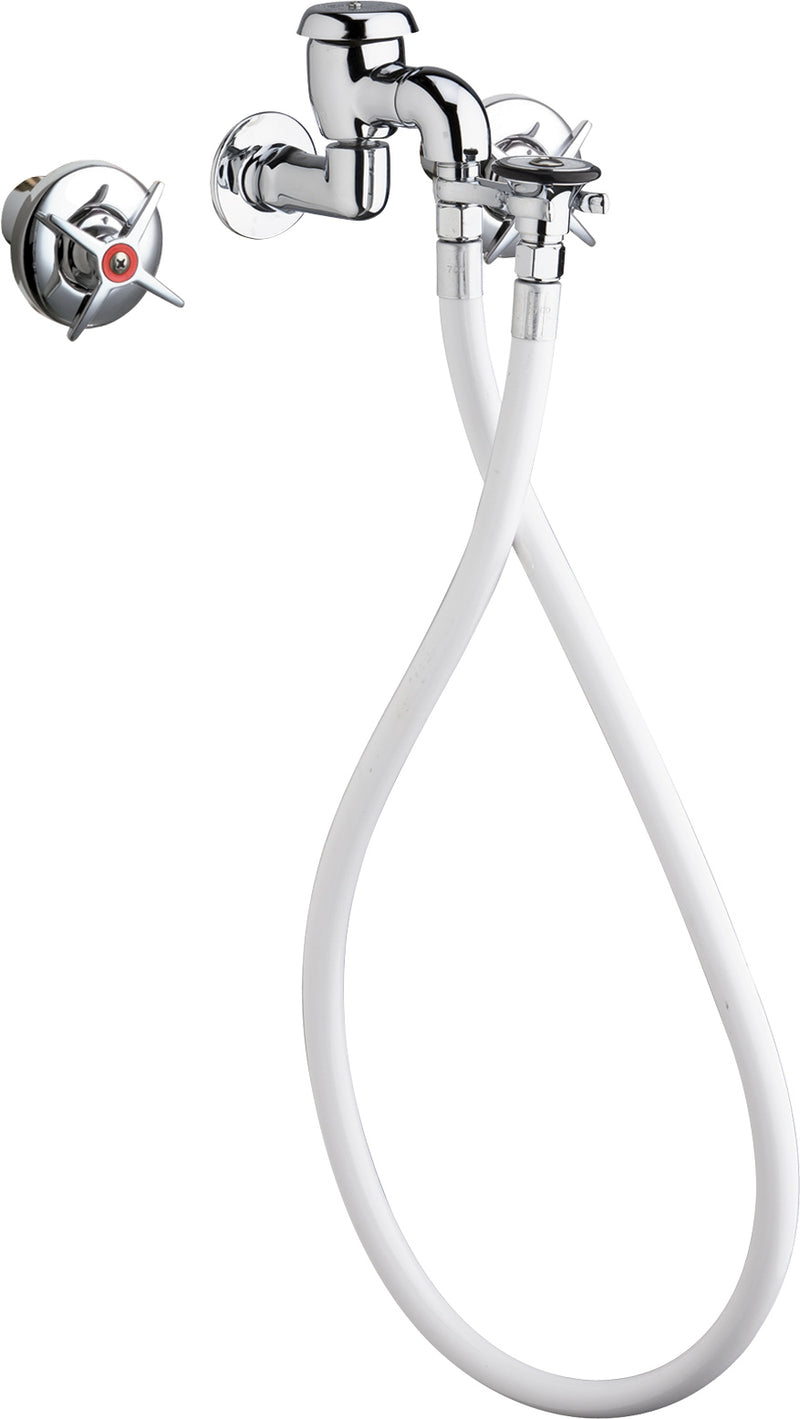

The Chicago Faucets 778-VBCP is a bed pan cleaner with NPT connections. It is rated to 40°F to 140°F.
Chicago Faucets No. 778-VBCP, Bed Pan Cleaner, two-handle, wall-mounted, chrome plated. Full-flow male rose spray. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 1/2" NPT female thread union inlets. 48" white vinyl hose. Includes atmospheric vacuum breaker. NOTE: Atmospheric vacuum breaker is NOT intended for continuous pressure applications. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1001.
Features
- Handles include color-coded index
- 8" fixed centers
- 48" White vinyl hose assembly
- Male rose spray for use with bed pan cleaner, 1.5 GPM
- Vandal Proof 3" Cross handle (pair)
- Slow compression operating cartridge, left-hand
- Vacuum breaker assembly
- Includes atmospheric vacuum breaker
- Complies with the requirements of the Buy American Act of 1933.
Common Questions
- Is it vandal-resistant?
- Yes, the handle and/or outlet use tamper-resistant hardware designed to resist tampering.
- What does it include?
- It ships with 2 handles, a slow compression cartridge, a spray (non-aerating) outlet.
- Will this fit my existing holes?
- Match the mounting centers first: this model is 8".
Specifications
- Type: Bed pan cleaner
- Size: 1/2"
- Connection: NPT
- Pack Quantity: 1
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 778-VBCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
- Centers: 8"
- Number of Handles: 2
- Handle Index: Hot and Cold
- Cartridge Type: Slow Compression
- Outlet Type: Spray (Non-Aerating)
- Mount Type: Wall-Mount
- Handle Style: Cross
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 1.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Backflow Device: Atmospheric Vacuum Breaker
- Hose Length (in): 48.0
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 778-VBCP | 611943154592 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 778 | Device Type | Bed pan cleaner |
| Max Temp °F | 140.0 °F | Pack Qty | 1 |
| Min Temp °F | 40.0 °F | Baa | USA |
| Backflow device | Atmospheric Vacuum Breaker | Coating | Polished Chrome |
| Flow rate gpm | 1.5 GPM | Handle style | Cross |
| Hose length in | 48.0 | Lead time days | 5 |
| Mount type | Wall-Mount | Operating pressure max psi | 125.0 PSI |
| Prop65 | Yes | Vandal resistant | Yes |
| Cartridge type | Slow Compression | Centers | 8" |
| Handle count | 2 | Handle index | Hot and Cold |
| Outlet type | Spray (Non-Aerating) | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ASSE-1001 |
