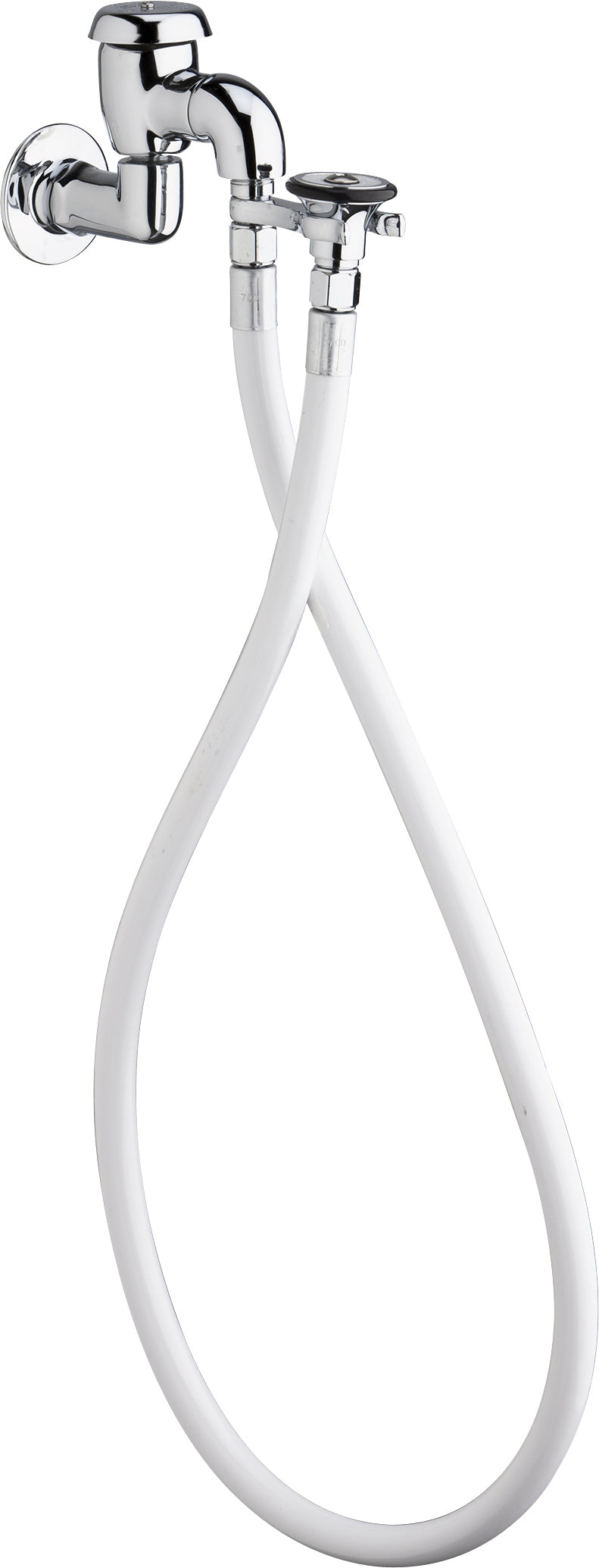

Chicago Faucets 778-SVBCP Bed pan cleaner, NPT

The Chicago Faucets 778-SVBCP is a bed pan cleaner with NPT connections. It is rated to 40°F to 140°F.

Chicago Faucets No. 778-SVBCP, Bed Pan Cleaner with single handle, wall-mounted, chrome plated. Full-flow male rose spray. 1/2" NPT female thread inlet with integral flange. 48" white vinyl hose. Includes atmospheric vacuum breaker. This product is tested and certified to industry standards: ASME A112.18.1/CSA B125.1, and ASSE 1001.

Features

• 48" White vinyl hose assembly
• Male rose spray for use with bed pan cleaner, 1.5 GPM
• Vacuum breaker assembly
• Includes atmospheric vacuum breaker
• Complies with the requirements of the Buy American Act of 1933.

Common Questions

What does it include?

It ships with 1 handle, a spray (non-aerating) outlet.

Specifications

• Type: Bed pan cleaner
• Size: 1/2"
• Connection: NPT
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 778-SVBCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, ASSE-1001
• Number of Handles: 1
• Outlet Type: Spray (Non-Aerating)
• Mount Type: Wall-Mount
• Coating / Finish: Polished Chrome
• Flow Rate (GPM): 1.5
• Max Operating Pressure (PSI): 125
• Backflow Device: Atmospheric Vacuum Breaker
• Hose Length (in): 48.0
• Lead Time (days): 5
