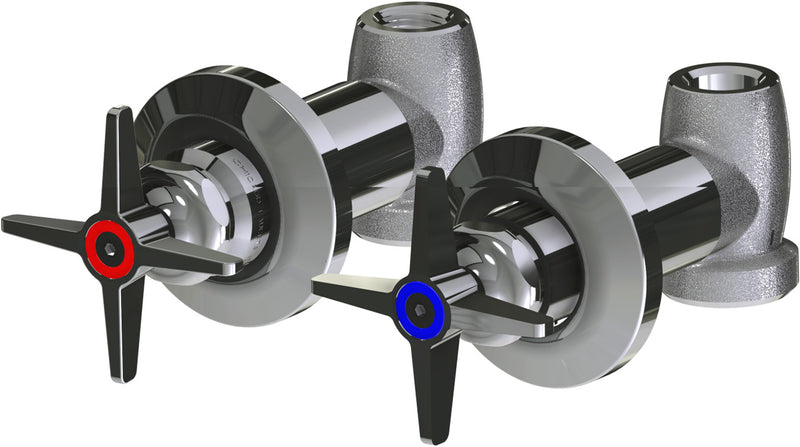

Chicago Faucets 770-PRABCP Lead-Free Remote Valve, In-Wall

The Chicago Faucets 770-PRABCP is a 1/2" lead-free remote valve with NPT connections. It features a brass body. Rated to 40°F to 140°F. This model is certified lead-free for potable-water installations.

Chicago Faucets No. 770-PRABCP, Concealed Straight Valve, chrome plated. 3" metal cross handles with eight-point, tapered broach and secured blue and red index buttons. Slow compression rebuildable cartridge, opens and closes 360° for fine adjustment, closes with water pressure, features square, tapered stem. 1/2" NPT female thread inlets. 1/2" NPT female thread outlets. ECAST® construction with less than 0.25% lead content by weighted average.

Features

• Handles include color-coded index
• Vandal Proof 3" Cross handle (pair)
• Slow compression operating cartridge, left-hand
• ECAST® design provides durable cast brass construction with total lead content equal to or less than 0.25% by weighted average
• Complies with the requirements of the Buy American Act of 1933.
• Includes: 633-PRJKCP
• Includes: 217-XTLHJKABNF

Common Questions

Is this vandal resistant?

Yes -- Chicago states this model is vandal-proof/vandal-resistant, meaning the index button is secured and the handle resists unauthorized removal. Common in teaching labs and other student/public-accessible spaces.

Specifications

• Type: Remote straight valve
• Size: 1/2"
• Connection: NPT
• Body Material: Brass
• Pack Quantity: 1
• Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
• MPN: 770-PRABCP
• Temperature: 40°F to 140°F
• Certifications: ASME A112.18.1/CSA B125.1, Buy American Act, NSF-372, NSF-61
• Lead-Free: Yes
• Body Pattern: Straight
• Mount Type: In-Wall
• Handle Style: Metal Cross
• Cartridge Type: Slow Compression
• Coating / Finish: Polished Chrome
• Vandal Resistant: Yes
• Max Operating Pressure (PSI): 125
• Lead Time (days): 5
