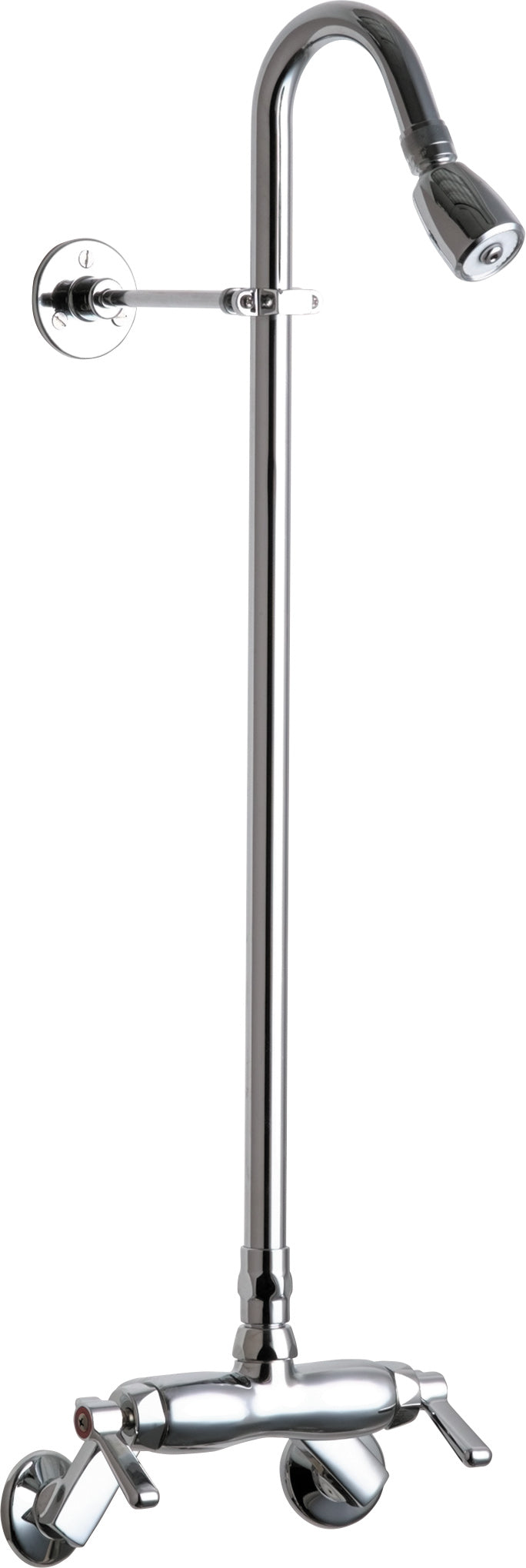

The Chicago Faucets 756-RCP is a two-handle exposed shower fitting, square trim. It is rated to 40°F to 140°F.
Chicago Faucets No. 756-RCP, Exposed Two-Handle Service Fitting with shower head, wall-mounted, chrome plated. Shower head with ball joint, 2.5 GPM max. flow rate @ 80 PSI. 2-3/8" metal, vandal-proof, lever handles with sixteen-point, tapered broach and secured blue and red index buttons. Quaturn® rebuildable compression cartridge, opens and closes 90°, closes with water pressure, features square, tapered stem. 2-1/2" offset supply arm with integral shut-off stop, 1/2" NPT female thread inlet. 902-M riser pipe strap assembly.
Features
- Handles include color-coded index
- 3-3/8" body, adjustable arms 3" - 8-3/8" centers
- Vandal Proof 2-3/8" Lever handle (pair)
- Quaturn® compression operating cartridge, right-hand
- Quaturn® compression operating cartridge, left-hand
- 2-1/2" Offset supply arm with integral shutoff stop
- Complies with the requirements of the Buy American Act of 1933.
Specifications
- Type: Exposed two-handle service fitting
- Size: 1/2"
- Connection: NPT
- Warranty: Lifetime faucet; 1-year finish; 5-year cartridge
- MPN: 756-RCP
- Temperature: 40°F to 140°F
- Certifications: ASME A112.18.1/CSA B125.1, ADA
- Trim Style: Square
- Mount Type: Wall-Mount
- Handle Style: Lever
- Coating / Finish: Polished Chrome
- Flow Rate (GPM): 2.5
- Vandal Resistant: Yes
- Max Operating Pressure (PSI): 125
- Lead Time (days): 5
Product Information
| SKU | UPC | Warranty | Spec Sheet |
|---|---|---|---|
| 756-RCP | 611943151782 | Lifetime faucet; 1-year finish; 5-year cartridge | Download |
Dimensions
| Size Nominal | 1/2" | End Connection | NPT |
Details
| Series | 756 | Device Type | Exposed two-handle service fitting |
| Max Temp °F | 140.0 °F | Min Temp °F | 40.0 °F |
| Baa | USA | Coating | Polished Chrome |
| Flow rate gpm | 2.5 GPM | Handle style | Lever |
| Lead time days | 5 | Mount type | Wall-Mount |
| Operating pressure max psi | 125.0 PSI | Vandal resistant | Yes |
| Trim style | Square | — | — |
Certifications & Standards
| ASME A112.18.1/CSA B125.1 | ADA |
Compare with similar products
| Series | 756
| 767
| 756
| 756
| 756
| 752
|
| Warranty | Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
| Lifetime faucet; 1-year finish; 5-year cartridge
|
| Spec Sheet | ||||||
| Device Type | Exposed two-handle service fitting
| Concealed two-handle service fitting
| Exposed two-handle service fitting
| Exposed two-handle service fitting
| Exposed two-handle service fitting
| Exposed two-handle service fitting
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| End Connection | NPT
| NPT
| NPT
| NPT
| NPT
| NPT
|
| Max Temp °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F | 140.0 °F |
| Certifications | ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1
| ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1, ADA
| ASME A112.18.1/CSA B125.1
|
| Min Temp °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F | 40.0 °F |
